Manual for DGE-530T
Uploaded: Nov. 21, 2025, 6:55 p.m.
Manual Publish Date: 2005-08-01
Warranty Information
The hardware portion is warranted free from material defects for two years, with shorter periods for power supplies and spare parts.

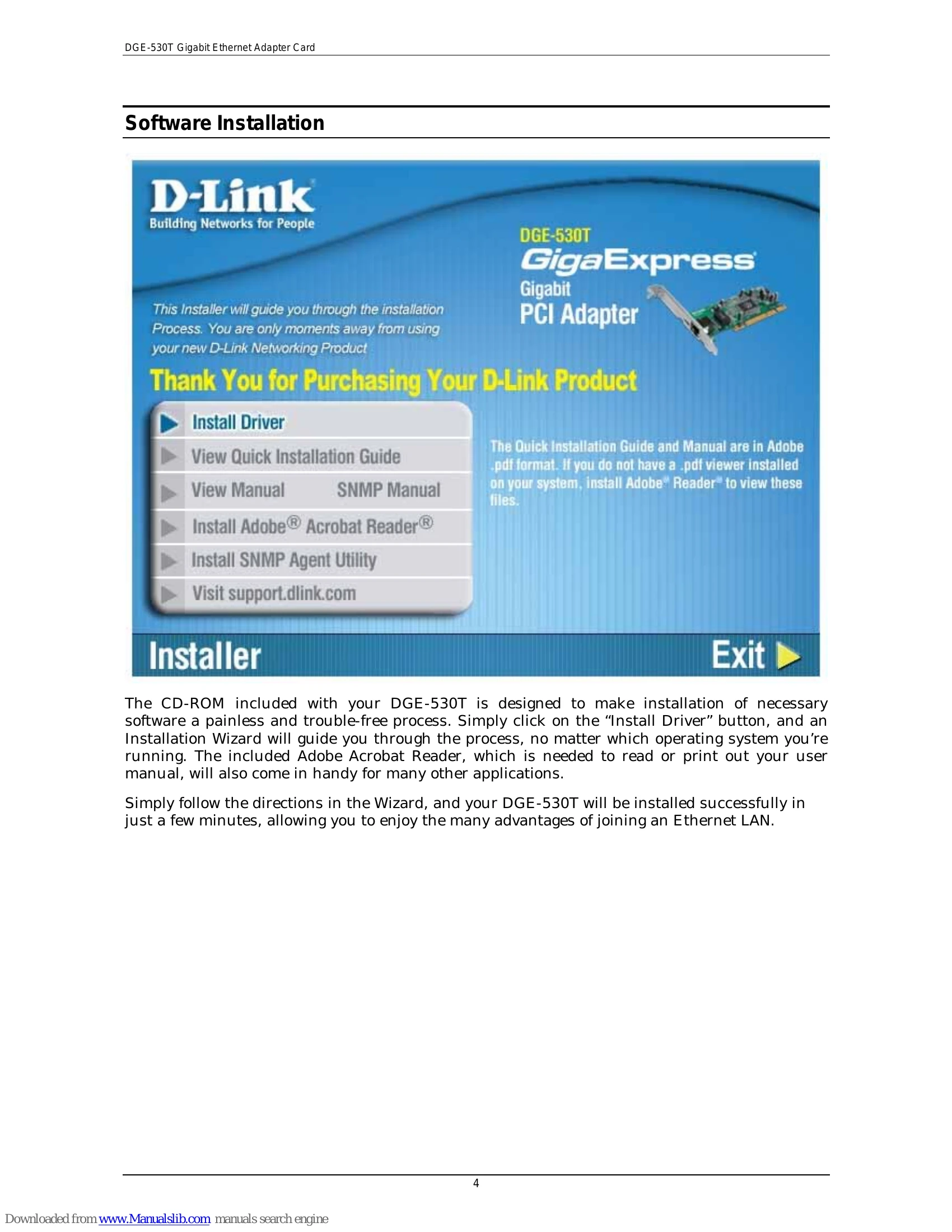

The DGE-530T is a 32-bit Gigabit Network Adapter. It provides high-bandwidth capabilities for servers and workstations, supporting speeds of 10Mbps, 100Mbps, and 1000Mbps. Features include Auto-negotiation, IEEE 802.3x Flow Control, Wake-on-LAN, QoS, Jumbo Frames, SNMP support, and a Cable Diagnostic Feature. Installation involves physically inserting the card into a PCI slot and then installing the drivers and utilities from the included CD-ROM. The D-Link Network Control program offers advanced features like the Virtual Cable Tester (VCT) for diagnosing network cables. LEDs on the adapter indicate link status, activity, duplex mode, and speed. Troubleshooting involves checking driver installation, cable quality, and hub compatibility. The manual also details warranty information, safety certifications, and specifications for the adapter.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| Adapter not detected or not functioning | Appropriate driver is not loaded | Load the appropriate driver. |
| Adapter not detected or not functioning | Faulty PCI slot or card | Try a different PCI slot or test the card in another computer. |
| Network connection issues | Improper cable grade used | Ensure the proper grade of cable is employed for the network connection. |
| Network connection issues | Supporting hub is not qualified | Ensure the supporting hub is properly qualified for the application. |
| Slow network speed | Incorrect duplex setting | Check adapter and switch duplex settings; ensure auto-negotiation is enabled or manually set. |
| Slow network speed | Network congestion or other devices causing issues | Consult network administrator. |
| Link/Activity LED is off | Cable not connected or faulty | Check cable connections and ensure the cable is not damaged. |
| Link/Activity LED is off | Remote device (switch/hub) is off or not functioning | Check the status of the connected network device. |
| 1000M or 100M LED is off | Device connected is not operating at that speed | Verify the speed capabilities of the connected network device. |
