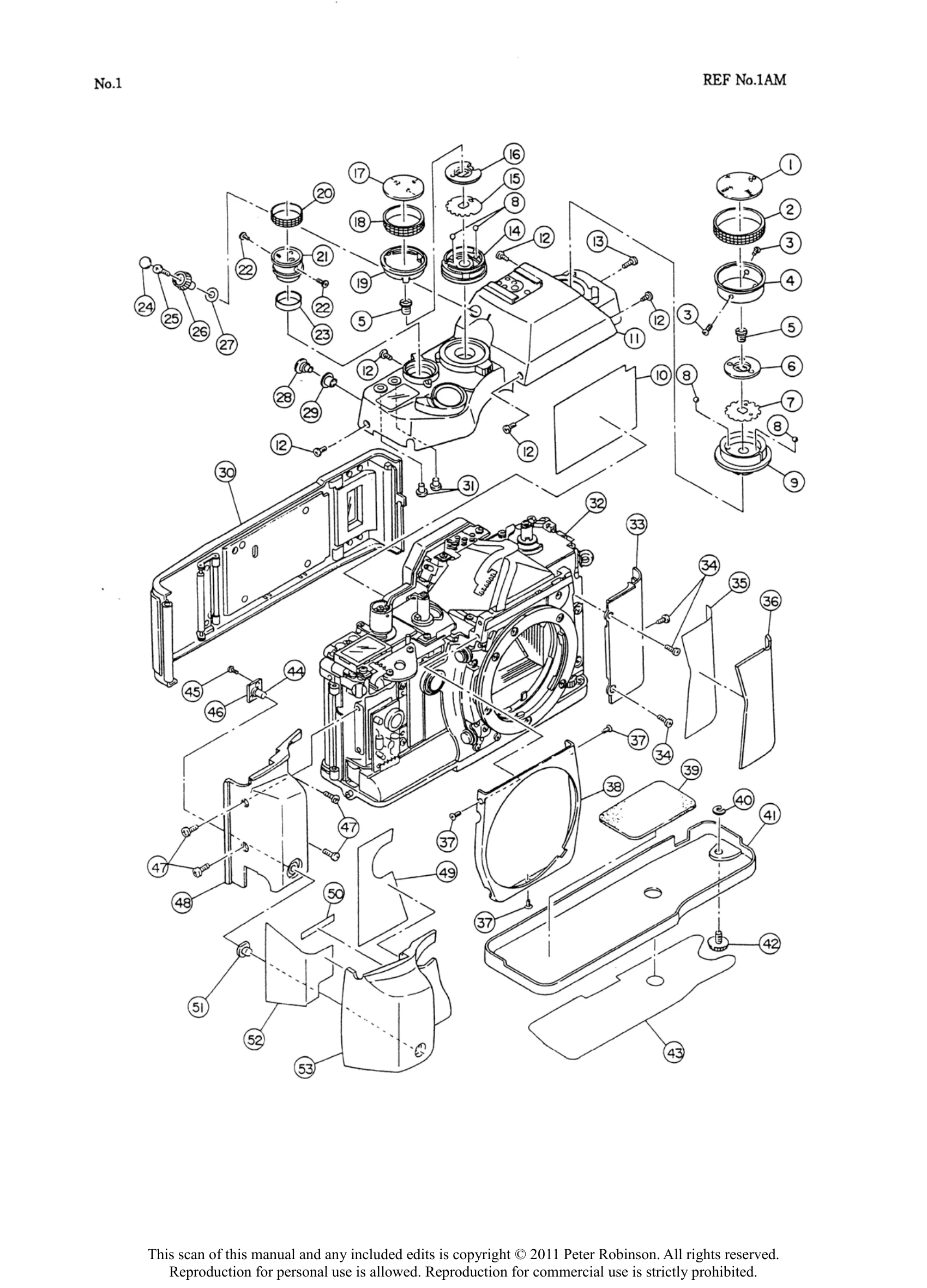

This manual provides a detailed parts breakdown and assembly chart for the Contax RX camera. It lists various components with their part numbers and descriptions, organized by assembly diagrams across multiple pages. The primary focus is on the identification and illustration of individual camera parts for repair or replacement purposes.
Troubleshooting and error codes
| Parts No. | Description | QTY | |
|---|---|---|---|
| 1 | 1AM22400 | SPEED NAME PLATE | 1 |
| 2 | 1AA97510 | SHUTTER DIAL COVER | 1 |
| 3 | 69102566 | S. DIAL S.S | 2 |
| 4 | 1AH26200 | S. DIAL | 1 |
| 5 | 1AH29000 | DIAL S.S | 1 |
| 6 | 1AH26600 | S. ILLUMINATION BOARD HOLDER | 1 |
| 7 | 1AM21920 | S. DIAL CLICK | 2 |
| 8 | 66701520 | STEEL BALL (1.5) | 1 |
| 9 | 1AH26400 | S. DIAL HOLDER | 1 |
| 10 | 17419300 | PRESSURE PLATE SHEET | 1 |
| 11 | 1AMB8000 | TOP COVER ASS' Y | 1 |
| 12 | 61812529 | TOP COVER ASS'Y S.S | 5 |
| 13 | 61814029 | TOP COVER ASS'Y S.S | 1 |
| 14 | 1AH28510 | EXP. COMPENSATION DIAL | 1 |
| 15 | 1AH28900 | EXP. COMPENSATION CLICK | 1 |
| 16 | 1AH29100 | EXP. COMPENSATION STOP PLATE | 1 |
| 17 | 1AM23200 | EXP. COMPENSATION NAME PLATE | 1 |
| 18 | 14126100 | ASA DIAL COVER | 1 |
| 19 | 1AH28700 | EXP. COMPENSATION NAME PLATE HOLDER | 1 |
| 20 | 1AM24310 | D. DIAL COVER | 1 |
| 21 | 1AM24220 | D. NAME PLATE | 1 |
| 22 | 61802026 | D. NAME PLATE S.S | 2 |
| 23 | 1AM24100 | D. DIAL COLLAR | 1 |
| 24 | 1AA85630 | DIOPTRIC ADJUSTMENT KNOB PLATE | 1 |
| 25 | 66001055 | DIOPTRIC ADJUSTMENT KNOB S.S | 2 |
| 26 | 1AH88610 | DIOPTRIC ADJUSTMENT KNOB | 1 |
| 27 | 1AH89600 | DIOPTRIC ADJUSTMENT KNOB WASHER | 1 |
| 28 | 13916500 | RELEASE CAP (S) | 1 |
| 29 | 13916400 | R. SOCKET DECORATING RING | 1 |
| 30 | 1AMB7000 | BACK COVER ASS'Y | 1 |
| 31 | 1AH20900 | U/D BUTTON | 2 |
| 32 | * | BODY | 1 |
| 33 | 1AM29400 | FRONT PLATE (R) | 1 |
| 34 | 61912526 | FRONT PLATE (R) S.S | 3 |
| 35 | 1AM28510 | R. RUBBER TAPE | 1 |
| 36 | 1AM29600 | FRONT PLATE RUBBER (R) | 1 |
| 37 | 61802529 | FRONT COVER S.S | 3 |
| 38 | 1AM29900 | FRONT COVER | 1 |
| 39 | 1AM29000 | BOTTOM COVER SHEET | 1 |
| 40 | 17419900 | BOTTOM COVER SCREW STOPPER | 1 |
| 41 | * | BOTTOM COVER | 1 |
| 42 | 17419820 | BOTTOM COVER SCREW | 1 |
| 43 | 1AM29100 | BOTTOM COVER PROTECTOR | 1 |
| 44 | 5EDLSGL3PR8**01 | SELF-TIMER LED | 1 |
| 45 | 69113576 | SELF-TIMER LED BOARD S.S | 1 |
| 46 | 1AH53000 | SELF-TIMER LED BOARD | 1 |
| 47 | 61912526 | FRONT PLATE (L) S.S | 1 |
| 48 | 1AM29540 | FRONT PLATE (L) | 1 |
| 49 | 1AM28610 | L.. RUBBER TAPE (M) | 1 |
| 50 | 1AM28710 | L.. RUBBER TAPE (S) | 1 |
| 51 | 1AH15200 | SELF-TIMER WINDOW | 1 |
| 52 | 1AM28810 | L. RUBBER TAPE (L) | 1 |
| 53 | 1AM29710 | FRONT PLATE RUBBER (L) | 1 |
| 39~43 | 1AMB8500 | BOTTOM COVER ASS' Y | 1 |
