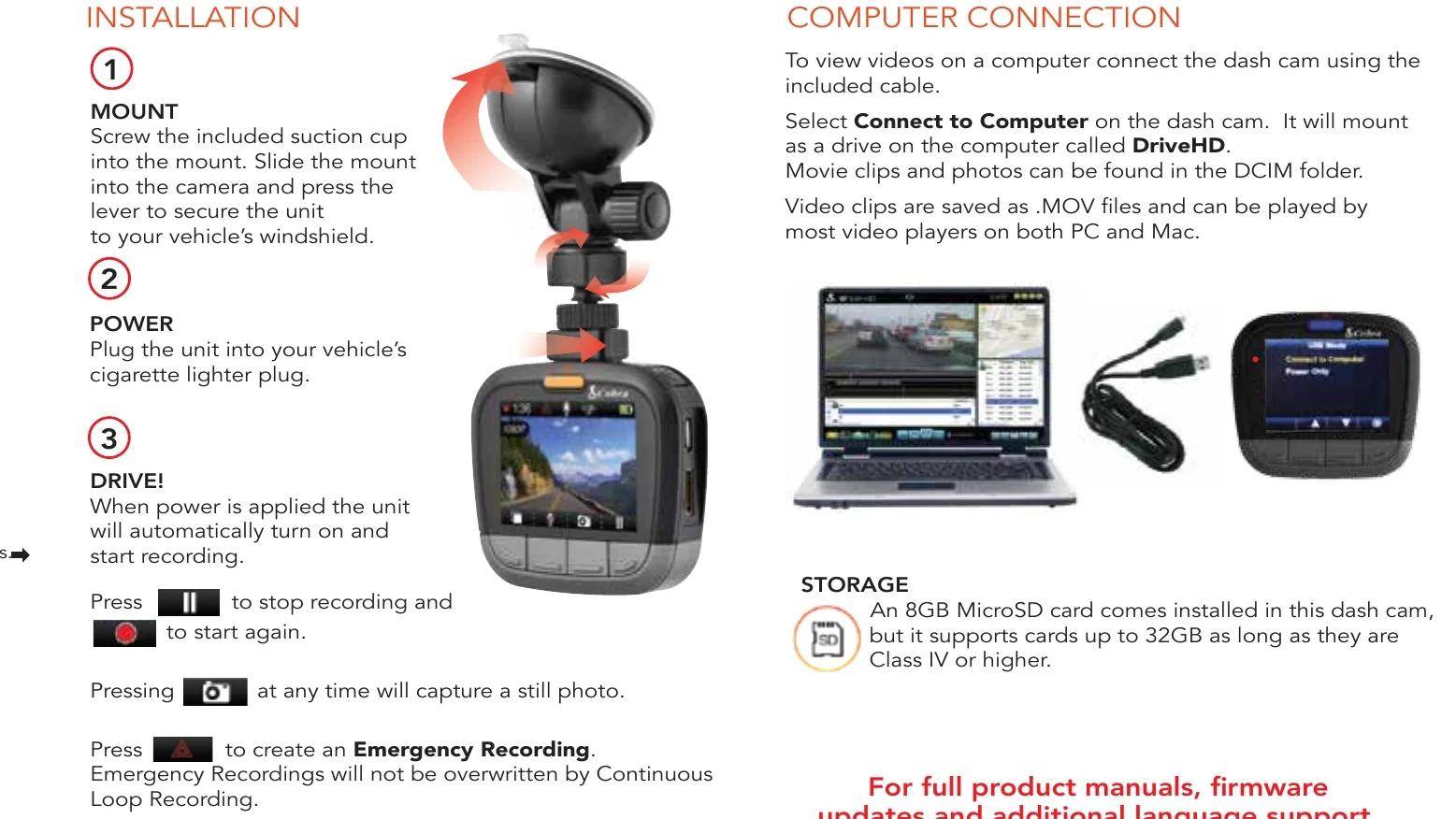

Quick Start Guide for CDR 835

• Continuous Loop Recording: The dash cam automatically overwrites the oldest clips when the MicroSD card is full to make room for new footage.
• G-Sensor: Automatically protects footage surrounding sudden accelerations or collisions, preventing it from being overwritten.
• Parking Mode: Provides security by turning off the screen and stopping recording after a set time of no motion. It will wake up and record again if motion is detected or the G-Sensor is triggered. This mode is OFF by default and can be turned ON in the Video Settings Menu.
• Action Cam Mode: Can be turned on via Video Settings to enable continuous loop recording and disable the G-Sensor.

Installation:

1. Mount: Screw the suction cup into the mount, slide the mount into the camera, and press the lever to secure it to the windshield.
2. Power: Plug the unit into the vehicle's cigarette lighter plug.
3. Drive!: The unit automatically turns on and starts recording when power is applied.

Basic Controls:

• Press [||] to stop recording and [REC] to start again.
• Pressing [Camera Icon] captures a still photo.
• Press [Emergency Icon] to create an Emergency Recording that won't be overwritten.
• Press [Power Icon] to turn the screen OFF; recording continues. Press any button to turn the screen back ON.

Computer Connection: Connect the dash cam using the included cable. Select "Connect to Computer" on the dash cam, and it will mount as a drive named "DriveHD." Movie clips and photos are in the DCIM folder and saved as .MOV files.
