Installation Guide for WAE-INLN-4CG
Uploaded: Sept. 12, 2025, 4:15 a.m.
Manual Publish Date: 2009-01-01

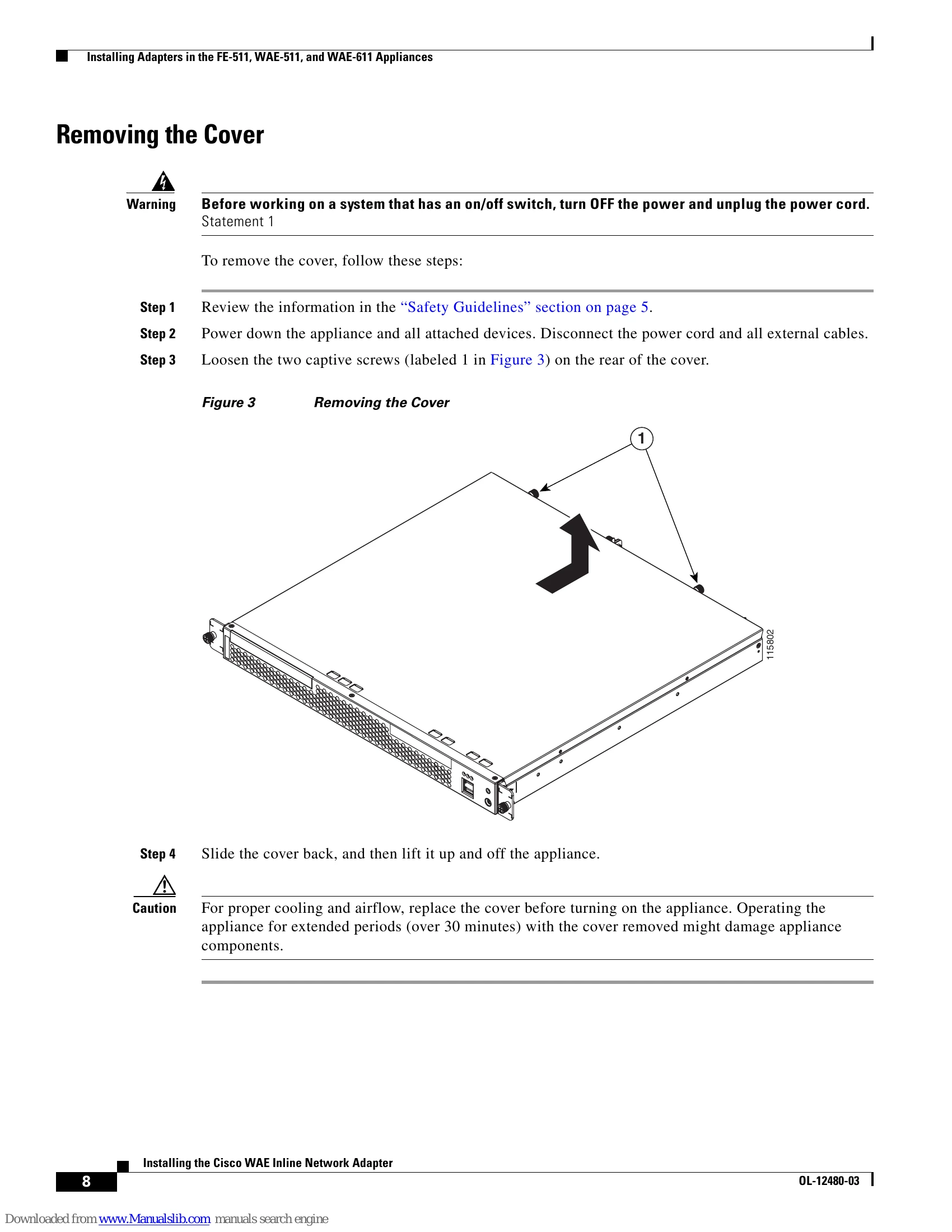

This document describes how to install the Cisco WAE inline network adapter in your edge or core WAE appliance. It covers product overview, safety guidelines, installation procedures for various WAE models (FE-511, WAE-511, WAE-611, WAE-512, WAE-612, WAE-7326, WAE-7371, WAE-7341, WAE-674), and cabling requirements. The inline network adapter provides inline traffic interception capabilities and is not supported in a Central Manager appliance. Key sections include removing and installing the cover, installing the adapter in different appliance slots, completing the installation by replacing the cover and reconnecting cables, and detailed cabling examples for Fast Ethernet connections.
Troubleshooting and error codes
| LEDs | State | Description |
| Link / Activity | On | The 10/100/1000BASE-T interface is receiving power. |
|---|---|---|
| Blinking | The Ethernet link is transmitting data. | |
| 100 | On | The speed of the Ethernet connection is 100BASE-TX. |
| 1000 | On | The speed of the Ethernet connection is 1000BASE-TX. |
| Bypass | Both the 100 and 1000 LEDs are on | The corresponding ports are in mechanical bypass mode. |
