This document provides instructions for installing a 256-MB SDRAM DIMM memory card in the NM-CUE network module. It is intended for network module installers familiar with electronic circuitry and wiring practices.

Key Steps:

  • Wear an ESD-preventive wrist strap.
  • Handle DIMMs by the edges.

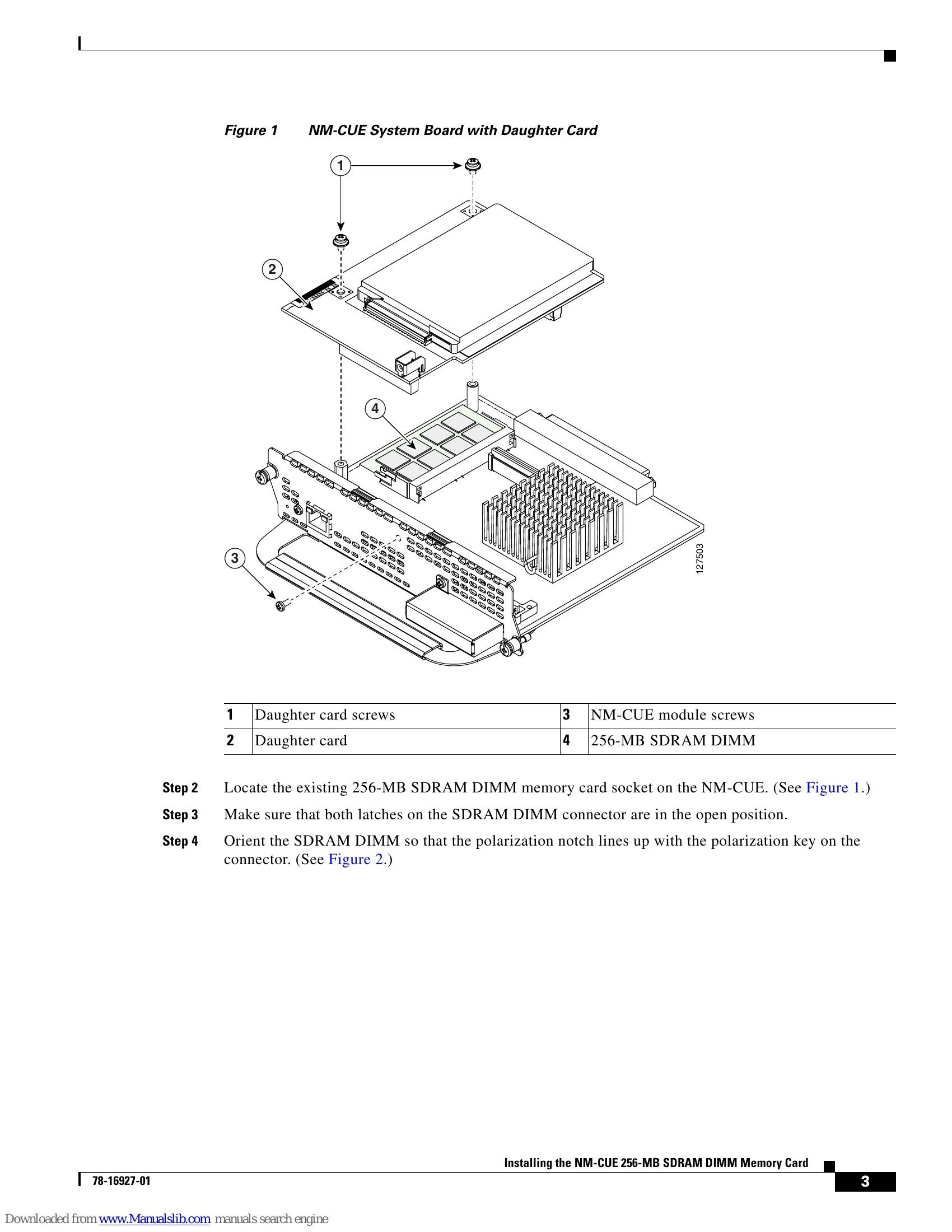

  • Remove the daughter card from the NM-CUE system board.
  • Locate the SDRAM DIMM memory card socket.
  • Ensure latches on the connector are open.
  • Orient the SDRAM DIMM with the polarization notch aligning with the connector's key.
  • Press the DIMM firmly until latches close.
  • Reinstall the NM-CUE daughter board.

The document also provides links to related installation guides for various Cisco router series and information on obtaining documentation and technical assistance.
