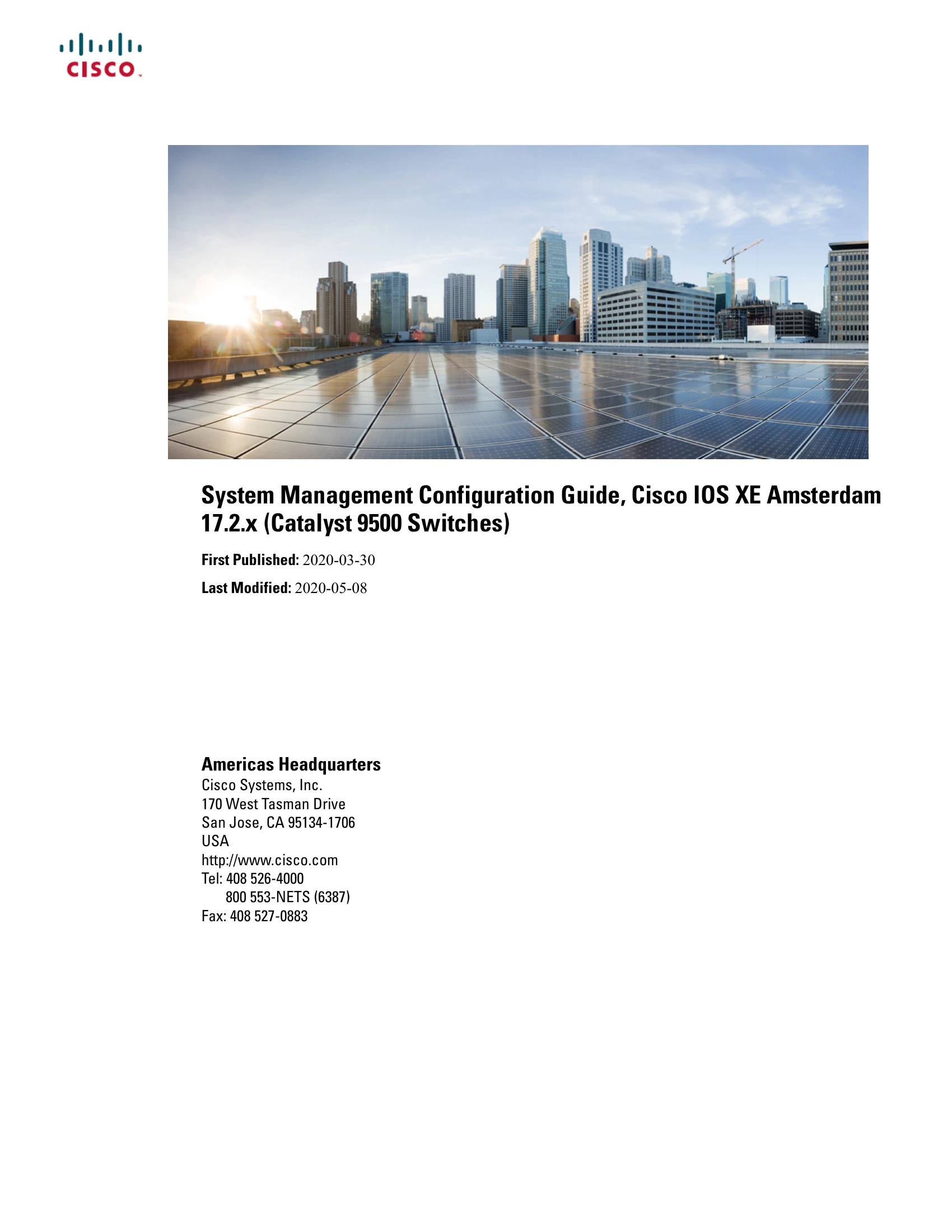

Manual for Catalyst 9500
Uploaded: Sept. 12, 2025, 4:29 a.m.
Manual Publish Date: 2020-03-30
Warranty Information
None
Administering the Device
This guide covers essential device administration tasks for Cisco IOS XE Amsterdam 17.2.x on Catalyst 9500 Switches.
System Time and Date Management
Configure system time and date using automatic methods (RTC, NTP) or manual configuration. The system clock is the basis for time services and can be set from RTC, NTP, or manually. It provides time to user show commands and logging/debugging messages.
Network Time Protocol (NTP)
NTP synchronizes time across network devices using UDP over IP. Devices obtain time from authoritative sources and distribute it. Stratum levels indicate proximity to an authoritative source. NTP avoids synchronizing with inaccurate time sources by comparing multiple devices. Associations can be configured statically or via IP broadcasts. Security features like access lists and authentication are crucial.
Troubleshooting
The manual includes sections on troubleshooting SFP module security, executing ping and traceroute commands, monitoring temperature and physical paths, and handling common software configuration issues like high CPU utilization and power over Ethernet (PoE) problems.
Troubleshooting and error codes
| Type of Problem | Cause | Corrective Action |
|---|---|---|
| Interrupt percentage value is almost as high as total CPU utilization value. | The CPU is receiving too many packets from the network. | Determine the source of the network packet. Stop the flow, or change the switch configuration. See the section on "Analyzing Network Traffic.” |
| Total CPU utilization is greater than 50% with minimal time spent on interrupts. | One or more Cisco IOS process is consuming too much CPU time. This is usually triggered by an event that activated the process. | Identify the unusual event, and troubleshoot the root cause. See the section on "Debugging Active Processes.” |
