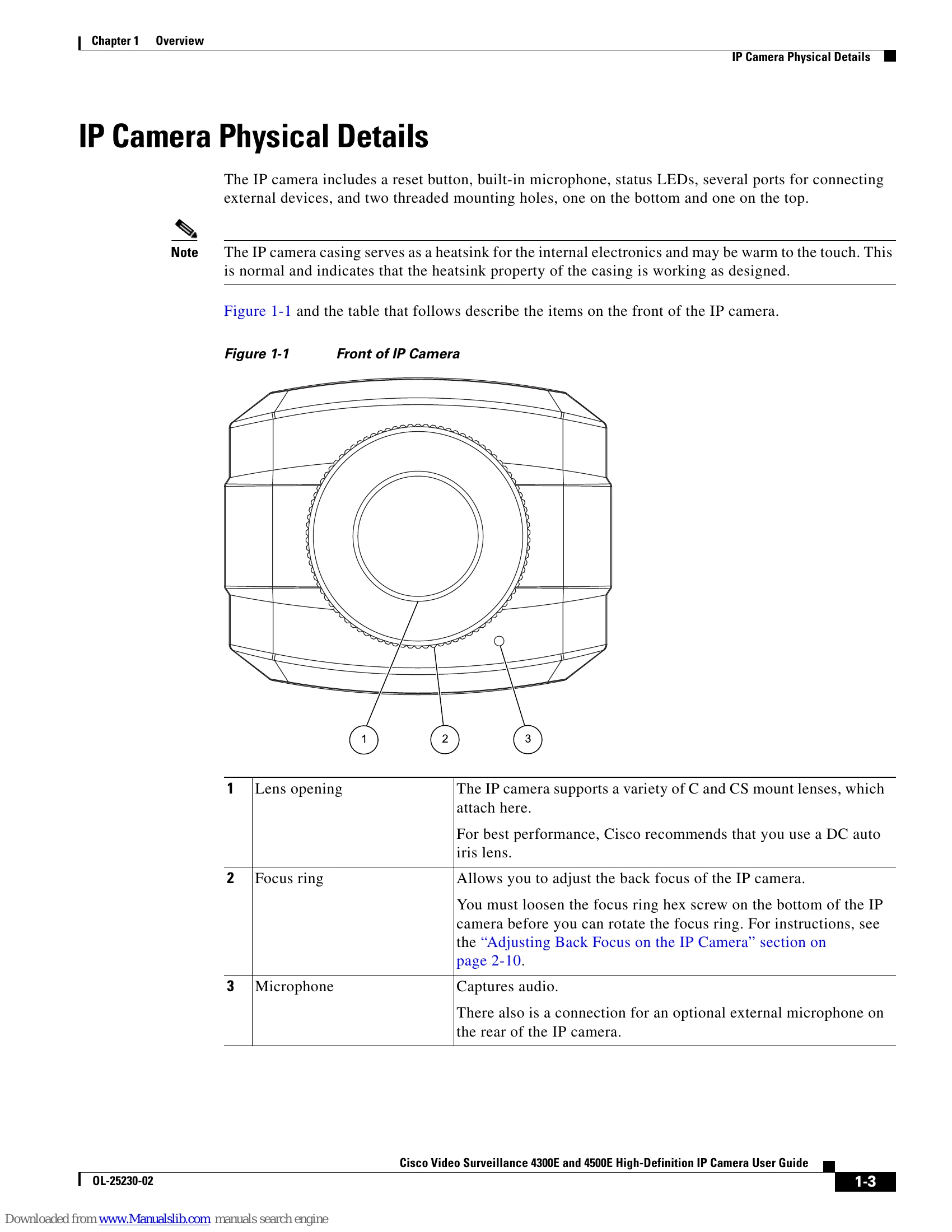

Manual for 4300E and 4500E
Uploaded: Sept. 12, 2025, 4:13 a.m.
Warranty Information
Refer to the Information Packet that shipped with the product for the software license and limited warranty.
- Installation: Detailed steps for physically installing the IP camera, including attaching lenses and connecting power and network cables.
- Initial Setup: Guides users through accessing the camera via a web browser, setting administrator and root passwords, and configuring network settings.
- Configuration & Management: Covers navigating web-based configuration menus for features like streaming, camera settings, network setup, and administration.
- Viewing Live Video: Instructions on how to access and view live video feeds from the camera.
- Troubleshooting: Provides solutions for common issues such as connectivity problems, login failures, and video quality issues.
Troubleshooting and error codes
| Symptom | Possible Cause | Recommended Action |
|---|---|---|
| Cannot connect to an IP camera through a web browser. | Unsupported PC operating system/browser, incorrect IP address, PC not on the same LAN, invalid port number, or restricted IP address. | Ensure a supported OS (Windows XP SP2+, Windows 7 Enterprise x64) and browser (IE 8.0 32-bit) are used. Verify the IP address and port number. Confirm the PC is on the same LAN. Check IP address restrictions in the IP Addressing Window. |
| Cannot log in to the IP camera as the administrator. | Incorrect login credentials or forgotten administrator password. | Use the administrator username 'admin' and the configured password (case-sensitive). If forgotten, perform a factory reset and reconfigure. Avoid reloading saved configuration files after a reset. |
| The motion detection feature does not send e-mail alerts. | Incorrect e-mail alert configuration or SMTP server filtering. | Configure e-mail alerts as described in the "Event Notification Window" (page 3-11). Try a different SMTP server or contact your ISP. |
| Motion detection video files do not show moving objects. | Motion detection feature compares frames; sudden light changes or camera movement can trigger false positives. | Minimize sudden light changes and avoid bumping or moving the camera. Ensure secure mounting in stable locations. Feature may not work properly outdoors. |
| Blurry images when viewing video. | Dirty lens, improper back focus adjustment, or sub-optimal video settings. | Clean the lens. Adjust back focus as described on page 2-10. Configure video settings in the "Streaming Settings Window" (page 3-3). |
