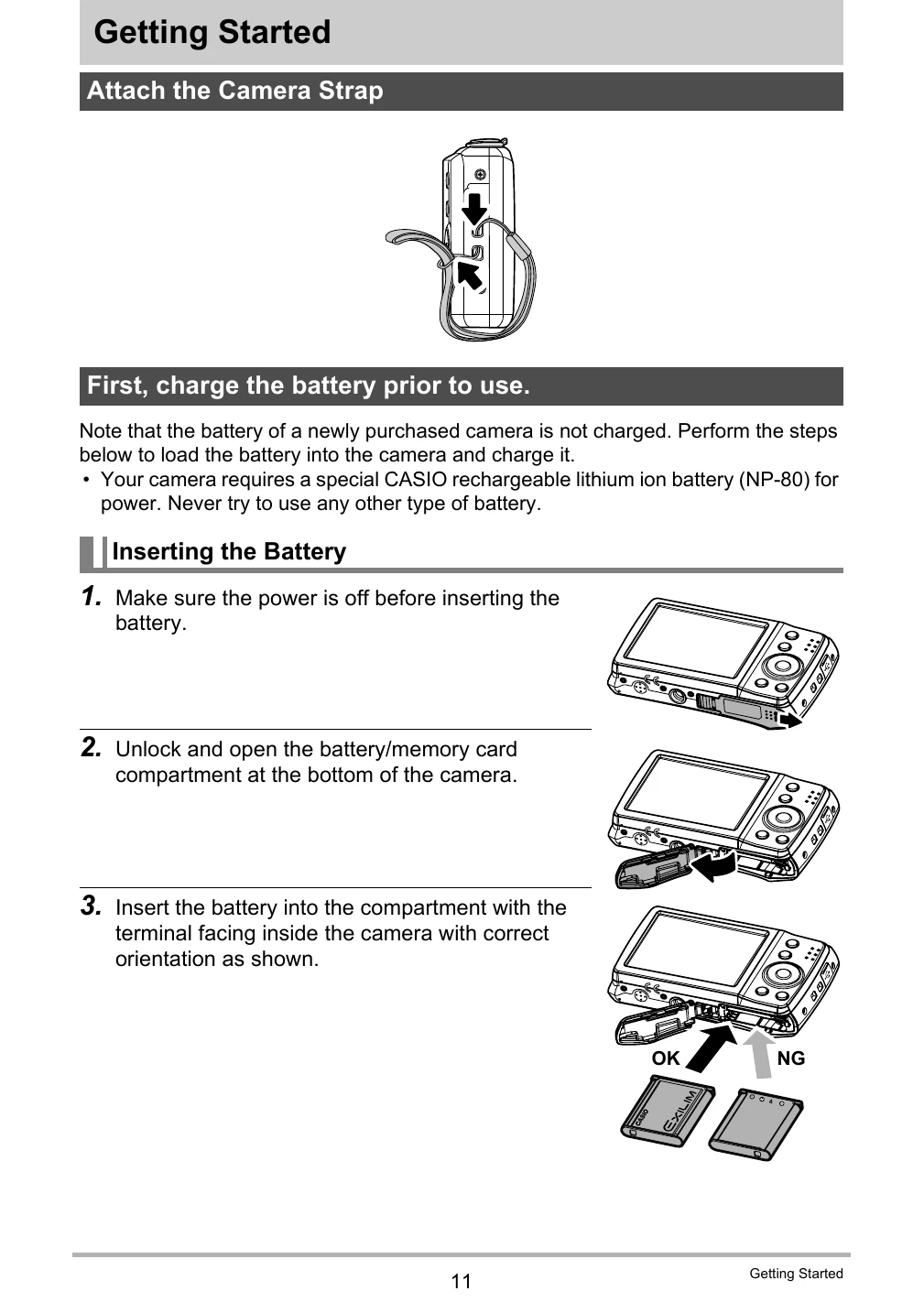

Getting Started

  • Attach the Camera Strap: Follow the instructions to properly attach the strap.
  • Charge the Battery: Ensure the rechargeable lithium-ion battery (NP-80) is fully charged before first use. This can be done via a USB-AC adapter or a USB connection to a computer.
  • Insert a Memory Card: Load an SD, SDHC, or SDXC memory card into the camera's compartment.
  • Turn On/Off: Press the POWER button to turn the camera on or off.
  • Initial Settings: Configure language and date/time settings upon first startup.

Using the LCD Monitor

  • The LCD monitor displays camera settings and the live view.
  • Understand the layout of the Still Image Record Mode, Video Image Record Mode, and Playback Mode screens.

Recording Images and Videos

  • Learn to take images using the zoom dial and flash.
  • Adjust focus modes and use the function menu.
  • Record videos and utilize the record menu.

Playback

  • View images and videos in single navigation or thumbnail mode.
  • Zoom in on images and play back videos.
  • Delete unwanted files and use the playback menu.

Troubleshooting and error codes

Problem Cause and/or Action
Camera does not turn on. The battery may be exhausted. Charge or replace the battery.
Camera turns off automatically. Press the POWER button to turn on the camera.
LCD turns dark. Press any button except the POWER button to turn on the LCD.
Empty battery icon is displayed on the LCD, then the camera turns off. Battery is exhausted, please replace or recharge.
LCD monitor displays "No image”. There is no image file in the memory card. Image file format may not be supported.
LCD monitor displays "Not available for this file”. Function is only available for specific file types. File format is not supported.
LCD monitor displays "Memory full”. Memory card is full. Replace the memory card with a new one or delete unnecessary images.
LCD monitor displays "File locked”. This file is locked. Unlock the file. See "Protect" on page 54.
LCD monitor displays "Card locked”. The memory card is protected. Remove the card and slide the write-protect switch to its unlock position.
LCD monitor displays "Format error”. The card may be damaged. You can either change the card or wipe to clean the connected points.
LCD monitor displays “Copy error”. The memory card is protected. Remove the card and slide the write-protect switch to its unlock position. The memory card is full. Replace card or delete unnecessary files.
No image displays on the TV screen. Incorrect TV-out type was selected. Set the correct TV-out type to match your TV system.
The lens is stuck. Do not force the lens to go back. The type of the battery used may be incorrect or the battery power level is too low. Change the battery or charge the battery before using the camera.
LCD monitor Displays "Auto Shutdown". The camera's protection function may have activated because camera temperature is too high. Turn off the camera and wait until it cools down before trying to use it again.
