Manual for QV-770

Manual for QV-770

Brand: CASIO

Category: Digital Camera

Document Type:

Language: EN

Uploaded: Aug. 9, 2025, 11:42 p.m.

Warranty Information

None

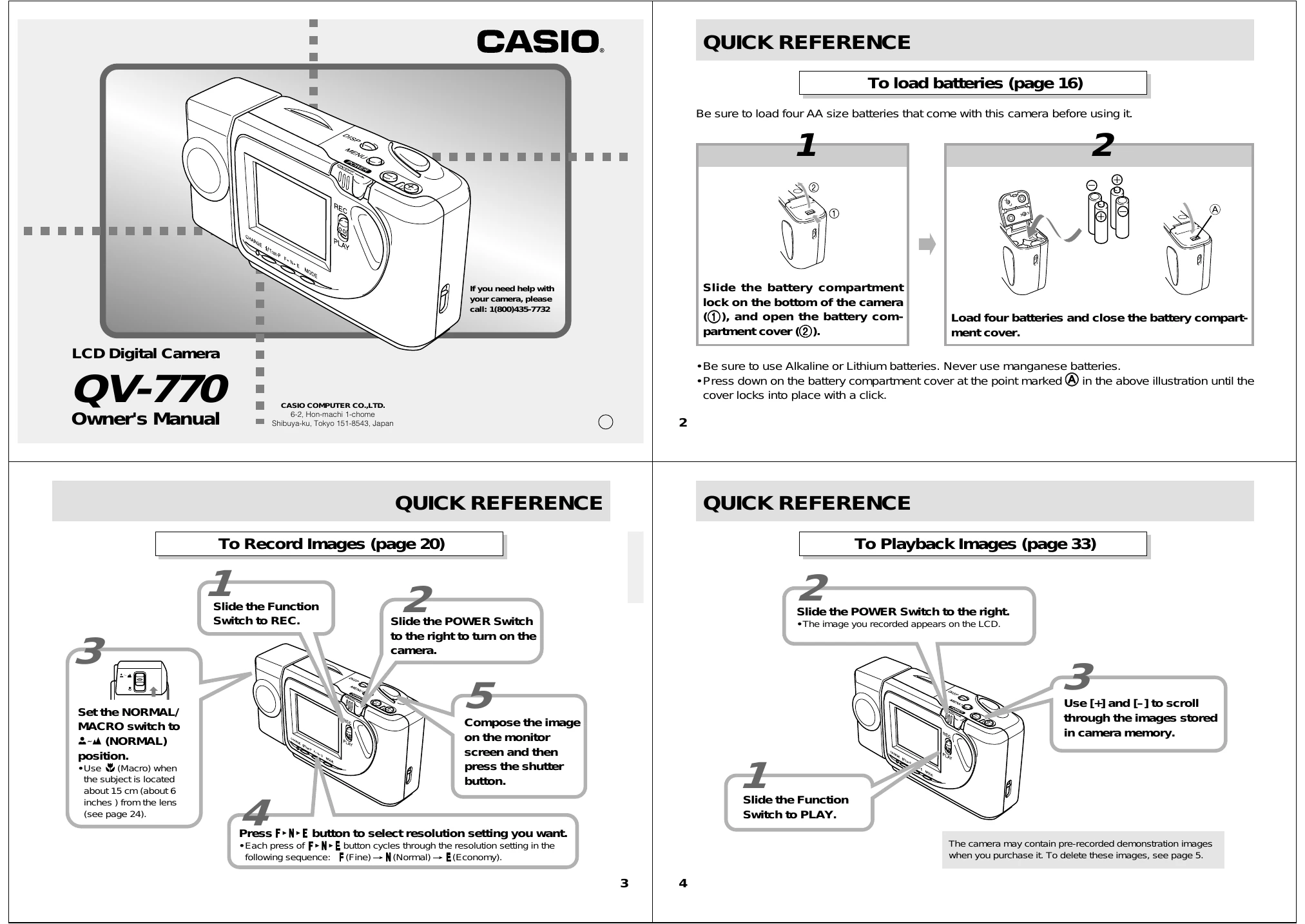

Quick Reference:
- Loading Batteries: Slide battery compartment lock, open cover, insert four AA batteries, close cover. Use Alkaline or Lithium batteries.
- Recording Images: Slide Function Switch to REC, slide POWER Switch to ON, compose image, press shutter button.
- Playback Images: Slide Function Switch to PLAY, use [+] and [-] to scroll through images.
Precautions: Avoid water, liquids, extreme temperatures, and direct sunlight. Never attempt self-repair. Keep flash away from eyes.
Power Supply: Can use AA-size Alkaline or Lithium batteries or optional AC adaptor. Low battery indicator will appear when power is low. Auto Power Off function turns off the camera after a period of inactivity.
Other Functions: Movie Recording, Serial Recording, Self-timer Recording, Panorama Recording, Manual Recording, Exposure Adjustment, Image Filters, Adding a Title, Combining Images, Moving Images, Rotating Images, Image Protection, Deleting Images, Changing Image Resolution, Connections, Infrared Data Transfer, PC Link Software.

Troubleshooting and error codes

No power 1. Batteries not loaded correctly.
2. Dead batteries
3. Wrong AC adaptor		 1. Correctly load batteries (page 16).
2. Replace batteries with new ones (page 16).
3. Use only recommended AC adaptor.
Sudden power failure 1. Operation of Auto Power Off
2. Low battery power
3. Use of manganese batteries.		 1. Turn power back on.
2. Replace batteries with new ones (page 16).
3. Replace manganese batteries with alkaline bat-teries.
No recording when shutter button is pressed 1. Function Switch sets to PLAY.
2. Flash unit is charging.
3. The message "MEMORY FULL" is on the monitor screen.
4. The message "REMAINING" is on the monitor screen.		 1. Set Function Switch to REC.
2. Wait until flash unit charging is finished.
3. Delete images you no longer need from camera memory.
4. Press FNE to change to another resolution mode, or delete images you no longer need from camera memory.
Power failure during selftimer operation Low battery power Replace batteries (page 16).
Poor LCD image focus Incorrect NORMAL/MACRO switch setting Use NORMAL for scenery and group photos, and MACRO for close-ups (page 24).
Poor color and brightness when indoors Indoor fluorescent lighting Shoot under incandescent or other non-fluorescent lighting (page 21).
Cannot perform movie recording. 1. Movie Record Mode is not selected.
2. Insufficient camera memory capacity.		 1. Press MODE to enter the Movie Record Mode (page 27).
2. Delete images you no longer need from camera memory, so there are at least two images worth of free memory capacity (page 54).
Color of recorded image is strange. Reflection from sunlight or light from another source Reorient the camera so that light is not shining directly into lens.
No +/- button operation during multi-page display Button operation during page change Wait until an image is on the LCD before performing a button operation.
Camera is connected to a TV, but LCD monitor contents do not appear on TV screen. 1. Incorrect camera-TV connection
2. Wrong TV set up		 1. Connect correctly using the special video cable that comes with the camera (page 60).
2. Set up the TV correctly.
Delete operation does not operate. All pages are protected. Unprotect the page you want to delete (page 51).
Menu icon is blue and nothing happens when it is selected. Icons for functions that are disabled in the Playback Mode are blue. Select a different function or change to the Record Mode.
All buttons and switches do not operate. Malfunction due to static electrical charge or strong impact.
Camera is connected to a computer or QV Color Printer.		 Remove batteries and disconnect the AC adaptor if you are using one. Restore power and turn the camera on. If this does not work, contact your dealer or an authorized CASIO service provider.
