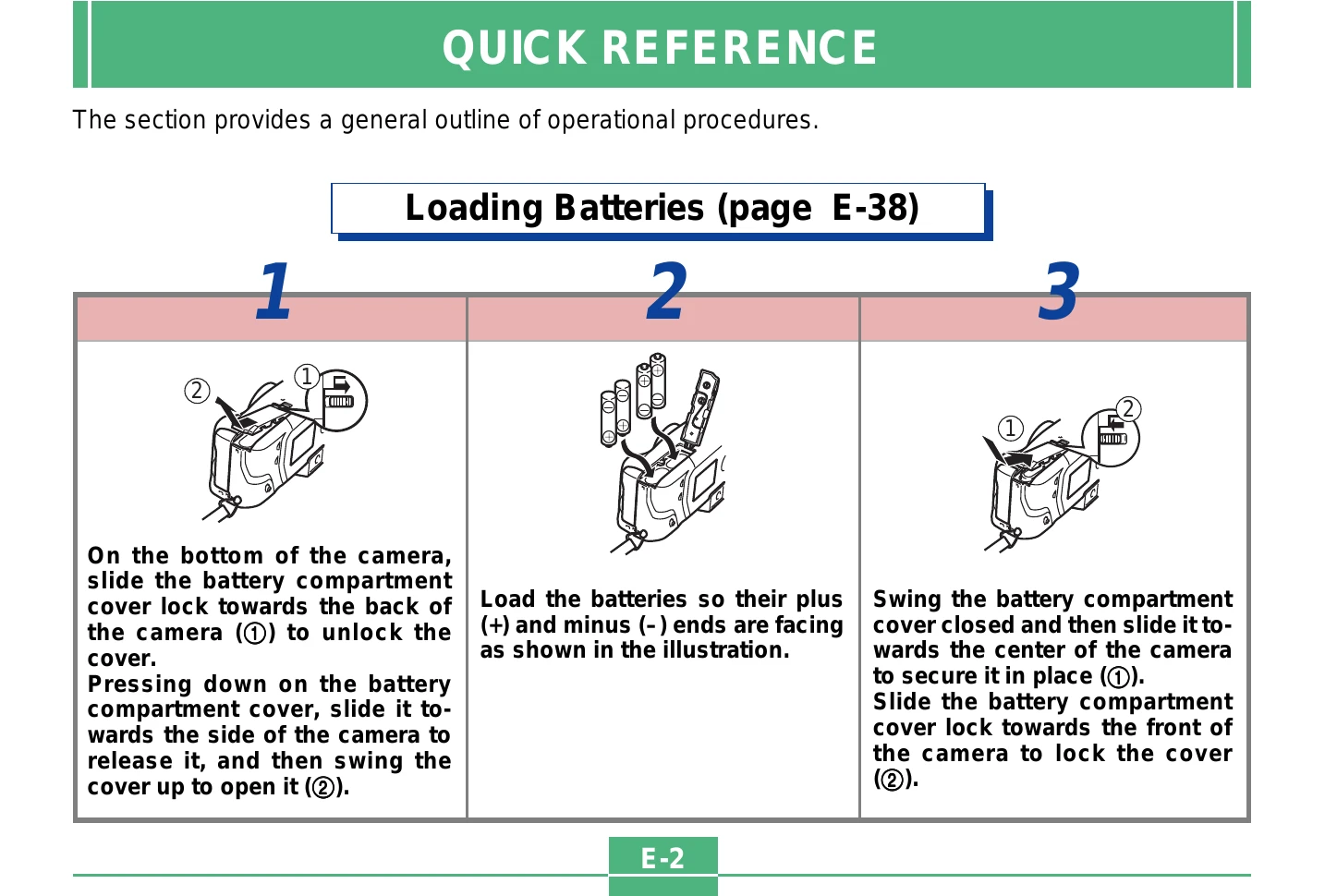

Loading Batteries

  1. Slide the battery compartment cover lock towards the back of the camera to unlock it.
  2. Press down on the cover, slide it to the side, and swing it up to open.
  3. Load batteries with correct polarity.
  4. Close the cover, slide it towards the center, and slide the lock towards the front to secure.

Loading a Memory Card

  1. Open the memory card slot cover.
  2. Insert the memory card with the arrowed surface facing down. Press the eject button if extended.
  3. Close the memory card slot cover.

Recording Images

  1. Align the POWER/Function switch with REC.
  2. Compose the image and press the shutter button halfway.
  3. After autofocus is complete, press the shutter button fully.

Playing Back Images

  1. Align the POWER/Function switch with PLAY.
  2. Use the directional buttons to scroll through images.

Troubleshooting and error codes

Symptom Probable Cause Action
No power 1. Batteries not loaded correctly.
2. Dead batteries
3. Wrong AC adaptor		 1. Correctly load batteries (page E-38).
2. Replace all four batteries with a set of new ones (page E-38).
3. Use only recommended AC adaptor .
Sudden power failure 1. Auto Power Off
2. Low battery power
3. Use of manganese batteries.		 1. Turn power back on.
2. Replace all four batteries with a set of new ones (page E-38).
3. Replace manganese batteries with alkaline, lithium or Ni-MH batteries.
indicator on LCD Batteries are about to go dead. Replace all four batteries with a set of new ones (page E-38).
No recording when shutter button is pressed 1. The POWER/Function switch is aligned with PLAY.
2. Flash unit is charging.
3. The message “MEMORY FULL” is on the monitor screen.
4. Insufficient memory card capacity or no memory card loaded in camera.		 1. Align the POWER/Function switch with REC.
2. Wait until flash unit charging is finished.
3. Delete images you no longer need from camera memory.
4. Load a memory card.
Auto Focus cannot focus the image. 1. Lens is dirty.
2. The object you want to focus is not in the focus frame.
3. Conditions make it impossible to obtain proper focus.
4. Camera is unsteady or shaking.		 1. Clean off the lens.
2. Aim the camera so the object you want to focus is in inside the focus frame.
3. Switch to the Manual Mode and focus manually.
4. Use a tripod to steady the camera.
The recorded image is out of focus. The focus setting is not correct. Make sure the subject you want to focus is within the Auto Focus Frame when you record the image.
Power failure during self-timer operation Low battery power Replace all four batteries with a set of new ones (page E-38).
Monitor screen image is out of focus. 1. Failure to focus the image while the camera is in the Manual Mode.
2. Attempting to record scenery or portraits in the Macro Mode.
3. Attempting to use the Auto Focus Mode while the subject is within 50cm of the camera.		 1. Focus the image before recording it.
2. Use the Auto Focus Mode for scenery and group shots.
3. Use the Macro Mode for close ups.
Viewfinder image is dim. Diopter is not adjusted correctly. Rotate the diopter dial until the area inside the Auto Focus frame appears clear.
Poor color and brightness when indoors Indoor fluorescent lighting Shoot under incandescent or other non-fluorescent lighting (page E-49).
Cannot perform movie recording. 1. Movie Record Mode is not selected.
2. Insufficient camera memory capacity.		 1. Select the Movie Record Mode (page E-62).
2. Delete images you no longer need from camera memory.
Recorded image is not saved. 1. Loss of power before image is stored in memory
2. Memory card cover was opened before the image was fully saved.		 1. Replace all four batteries with a set of new ones (page E-38).
2. Never open the memory card cover until the image is fully saved.
Colors of recorded image are different from those on the display when image was composed. 1. Reflection from sunlight or light from another source
2. Image quality setting		 1. Reorient the camera so that light is not shining directly into lens.
2. Use the Recording Menu to change to a higher image quality for recording.
No ]/[- button operation during nine-page display Button operation during page change Wait until an image is on the monitor screen before performing a button operation.
Cannot find an image. 1. Memory card images recording using a camera that does not support DCF.
2. Management files required to display images cannot be created.		 1. The file management systems of cameras that do not support DCF are different from the one used by this camera. This camera cannot read cards recorded with such cameras.
2. Make more room available on the memory card by deleting some of its images or other data.
Camera is connected to a TV, but LCD monitor contents do not appear on TV screen. 1. Incorrect camera-TV connection
2. Wrong TV set up
3. Wrong video mode is selected.		 1. Connect correctly using the video cable (page E-99).
2. Set up the TV correctly.
3. Change the video mode.
Images cannot be displayed when downloaded back to the camera from a computer. The images were on a memory card when they were opened on the computer for editing and then resaved back to the memory card. Use the Photo Loader application to download edited images back to the camera.
Delete operation does not operate. All images are protected. Unprotect the images you want to delete (page E-89).
Cannot select items in the Playback Menu. Some functions are not available for playback of certain types of images. Select a different function or change to the Record Mode.
No buttons or switches operate. • Malfunction due to static electrical charge or strong impact.
• Camera is connected to a computer.		 Remove batteries and disconnect the AC adaptor if you are using one. Restore power and turn the camera on. If this does not work, contact your dealer or an authorized CASIO service provider.
Slide Show starts even though it is not selected. Activation of the screen saver. Turn off screen saver (page E-84).
Nothing appears on the monitor screen. 1. The camera is in the Sleep state.
2. Communication over the USB cable is in progress.		 1. Exit the Sleep state.
2. After the communication operation over the USB cable is complete unplug the USB cable from the camera.
Cannot perform infrared data communication. 1. Other device does not support IrTran-P protocol.
2. Sending and receiving units are not positioned correctly.
3. Object blocking the infrared light path, another device using infrared light is in the vicinity, or fluorescent lighting.
4. Direct sunlight		 1. Communicate only with devices that support IrTran-P protocol.
2. Orient the infrared ports of the two devices so they are pointed directly at each other (page E-104).
3. Move the sending and receiving devices away from the source of the problem.
4. Avoid infrared data communication in direct sunlight.
