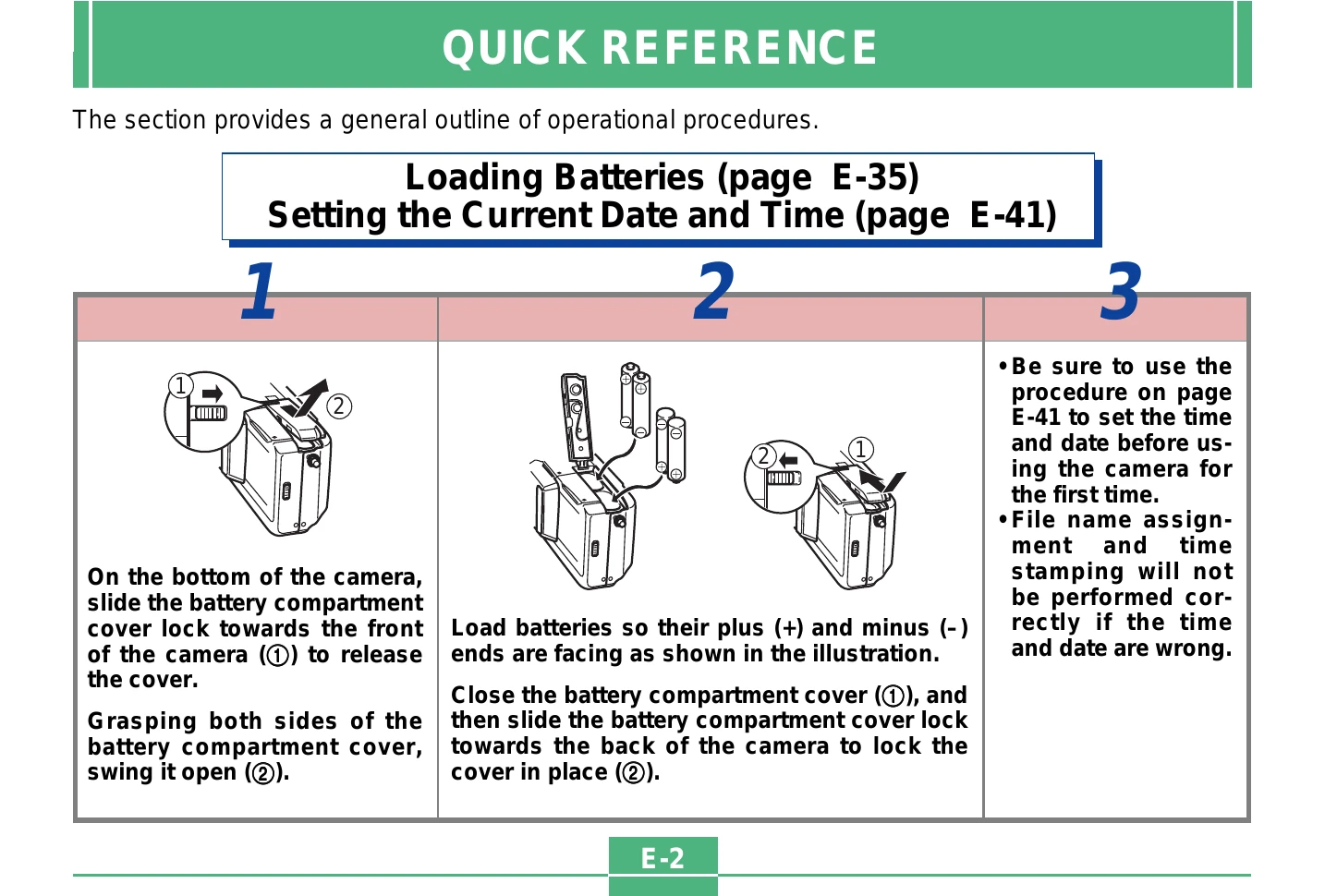

Loading Batteries

  1. Slide the battery compartment cover lock towards the front of the camera to release the cover.
  2. Swing open the battery compartment cover.
  3. Load batteries with correct polarity.
  4. Close the cover and slide the lock to secure it.

Setting the Current Date and Time

Refer to page E-41 before first use.

Recording Images

  1. Slide open the lens cover.
  2. Compose the image, press the shutter button halfway.
  3. After auto focus confirms, press the shutter button fully.

Playing Back Images

  1. Press PLAY ON/OFF.
  2. Use the directional buttons to scroll through images.

Deleting Images

  1. Press PLAY ON/OFF.
  2. Press MENU.
  3. Navigate to and select "Delete."
  4. Select "Select," then press SET.
  5. Scroll to the desired image and toggle protection status with directional buttons.
  6. Press SET to confirm deletion.

Troubleshooting and error codes

Symptom Probable Cause Action
No power Batteries not loaded correctly. 1. Correctly load batteries (page E-35).
Dead batteries 2. Replace all four batteries with a set of new ones (page E-35).
Wrong AC adaptor 3. Use only recommended AC adaptor .
Lens cover is not completely open. 4. Completely open the lens cover.
Sudden power failure 1. Auto Power Off 1. Turn power back on.
2. Low battery power 2. Replace all four batteries with a set of new ones (page E-35).
3. Use of manganese batteries. 3. Replace manganese batteries with alkaline, lithium or Ni-MH batteries.
■ indicator on LCD Batteries are about to go dead. Replace all four batteries with a set of new ones (page E-35).
No recording when shutter button is pressed 1. The lens cover is closed. 1. Slide open the lens cover.
2. Flash unit is charging. 2. Wait until flash unit charging is finished.
3. The message “MEMORY FULL” is on the monitor screen. 3. Delete images you no longer need from camera memory.
4. Insufficient memory card capacity or no memory card loaded in camera. 4. Load a memory card.
Auto Focus cannot focus the image. 1. Lens is dirty. 1. Clean off the lens.
2. The object you want to focus is not in the focus frame. 2. Aim the camera so the object you want to focus is in inside the focus frame.
3. Conditions make it impossible to obtain proper focus. 3. Switch to the Manual Mode and focus manually.
4. Camera is unsteady or shaking. 4. Use a tripod to steady the camera.
The recorded image is out of focus. The focus setting is not correct. Make sure the subject you want to focus is within the Auto Focus Frame when you record the image.
Power failure during self-timer operation Low battery power Replace all four batteries with a set of new ones (page E-35).
Monitor screen image is out of focus. 1. Failure to focus the image while the camera is in the Manual Mode. 1. Focus the image before recording it.
2. Attempting to record scenery or portraits in the Macro Mode. 2. Use the P Mode for scenery and group shots.
3. Attempting to use the P Mode (standard recording) while the subject is within 50cm of the camera. 3. Use the Macro Mode for close ups.
Viewfinder image is dim. 1. Camera is not in the REC Mode. 1. Slide open the lens cover to enter the REC Mode.
2. Diopter is not adjusted correctly. 2. Rotate the diopter dial until the area inside the Auto Focus frame appears clear.
Poor color and brightness when indoors Indoor fluorescent lighting Shoot under incandescent or other non-fluorescent lighting (page E-46).
Cannot perform movie recording. 1. Movie Record Mode is not selected. 1. Select the Movie Record Mode (page E-59).
2. Insufficient camera memory capacity. 2. Delete images you no longer need from camera memory.
Recorded image is not saved. 1. Loss of power before image is stored in memory 1. Replace all four batteries with a set of new ones (page E-35).
2. Memory card cover was opened before the image was fully saved. 2. Never open the memory card cover until the image is fully saved.
Colors of recorded image are different from those on the display when image was composed. 1. Reflection from sunlight or light from another source 1. Reorient the camera so that light is not shining directly into lens.
2. Image quality setting 2. Use the Recording Menu to change to a higher image quality for recording.
No ]/[ button operation during nine-page display Button operation during page change Wait until an image is on the monitor screen before performing a button operation.
Cannot find an image. 1. Memory card images recording using a camera that does not support DCF. 1. The file management systems of cameras that do not support DCF are different from the one used by this camera. This camera cannot read cards recorded with such cameras.
2. Management files required to display images cannot be created. 2. Make more room available on the memory card by deleting some of its images or other data.
Camera is connected to a TV, but LCD monitor contents do not appear on TV screen. 1. Incorrect camera-TV connection 1. Connect correctly using the video cable (page E-95).
2. Wrong TV set up 2. Set up the TV correctly.
3. Wrong video mode is selected. 3. Change the video mode.
Images cannot be displayed when downloaded back the camera from a computer. The images were on a memory card when they were opened on the computer for editing and then resaved back to the memory card. Use the Photo Loader application to download edited images back to the camera.
Delete operation does not operate. All images are protected. Unprotect the images you want to delete (page E-86).
Cannot select items in the Playback Menu. Some functions are not available for playback of certain types of images. Select a different function or change to the Record Mode.
No buttons or switches operate. Malfunction due to static electrical charge or strong impact. Remove batteries and disconnect the AC adaptor if you are using one. Restore power and turn the camera on. If this does not work, contact your dealer or an authorized CASIO service provider.
Camera is connected to a computer.
Slide Show starts even though it is not selected. Activation of the screen saver. Turn off screen saver (page E-81).
Nothing appears on the monitor screen. 1. The camera is in the Sleep state. 1. Exit the Sleep state.
2. Communication over the USB cable is in progress. 2. After the communication operation over the USB cable is complete unplug the USB cable from the camera.
Cannot perform infrared data communication. 1. Other device does not support IrTran-P protocol. 1. Communicate only with devices that support IrTran-P protocol.
2. Sending and receiving units are not positioned correctly. 2. Orient the infrared ports of the two devices so they are pointed directly at each other (page E-100).
3. Object blocking the infrared light path, another device using infrared light is in the vicinity, or fluorescent lighting. 3. Move the sending and receiving devices away from the source of the problem.
4. Direct sunlight 4. Avoid infrared data communication in direct sunlight.
