Brand: CASIO
Category: Digital Camera
Document Type:
Language: EN
Manual for QV-120
Uploaded: Aug. 9, 2025, 11:43 p.m.
Warranty Information
None
- Recording Images: Set function switch to REC, turn on camera, adjust NORMAL/MACRO switch, select resolution (FINE/NORMAL) with MODE button, compose image on LCD, and press shutter button.
- Playing Back Images: Set function switch to PLAY, turn on camera, and use [+] and [-] buttons to scroll through stored images.

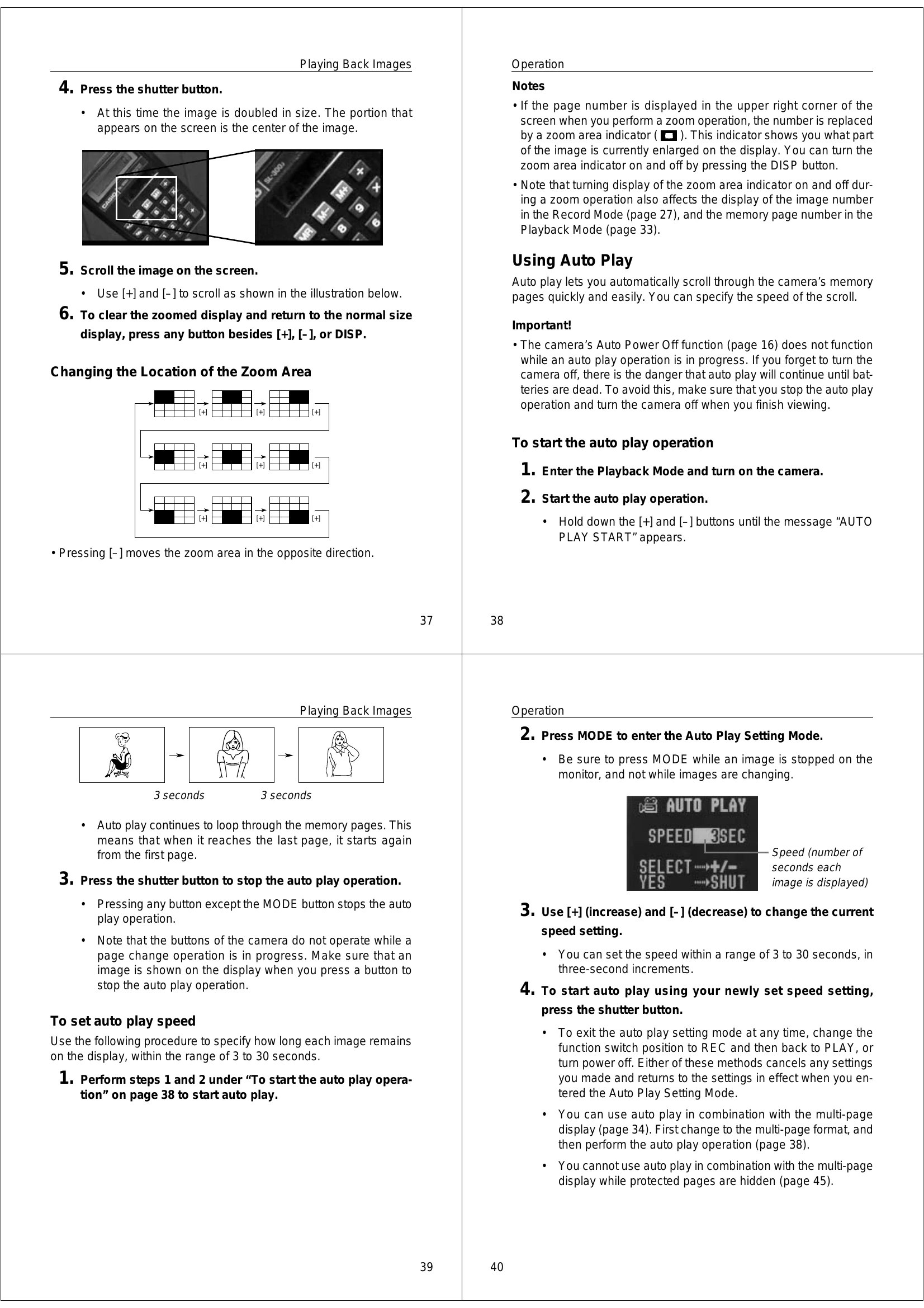

- Auto Play: Hold [+] and [-] buttons in Playback Mode until "AUTO PLAY START" appears. Press MODE to adjust speed. Press shutter button to stop.
- Protecting Memory Pages: In Playback Mode, access PROTECT Menu, select PAGE or ALL, and press shutter button to protect images from accidental deletion.
- Deleting Memory Pages: In Playback Mode, access DELETE Menu, select PAGE or ALL, and follow on-screen prompts to delete images. Warning: Delete operations cannot be undone.
Troubleshooting and error codes
| Troubleshooting | ||
| Symptom | Probable Cause | Action |
|---|---|---|
| No power | 1. Batteries not loaded correctly. | 1. Correctly load batteries (page 13). |
| 2. Dead batteries | 2. Replace batteries with new ones (page 13). | |
| 3. Wrong AC adaptor | 3. Use only recommended AC adaptor. | |
| Sudden power failure | 1. Operation of Auto Power Off | 1. Turn power back on. |
| 2. Low battery power Use of manganese batteries. | 2. Replace batteries with new ones (page 13). Replace manganese batteries with alkaline batteries. | |
| indicator Low battery power on LCD | Replace batteries (page 13). | |
| No recording when shutter button is pressed | Function switch sets to PLAY. | Set function switch to REC. |
| Low battery power | Replace batteries (page 13). | |
| Power failure during self-timer operation | Low battery power indicator | Replace batteries (page 13). |
| O indicator on LCD | Over exposure | Change aperture switch setting to [] (page 26). |
| O indicator on LCD | Under exposure | Change aperture switch setting to [O] (page 26). |
| Poor LCD image focus | Incorrect NORMAL/MACRO switch setting | Use NORMAL for scenery and group photos, and MACRO for close-ups (page 24). |
| Indoor fluorescent lighting | Shoot under incandescent or other non-fluorescent lighting (page 21). | |
| Poor color and brightness when indoors | Strong direct or reflected sunlight | Change aperture setting to []. Note that this condition is due to CCD characteristics, and does not indicate camera malfunction. |
| Recorded image has greenish tinge. | 1. Reflection from sunlight or light from another source 2. Difference between Record Mode and Playback Mode characteristics. | 1. Reorient the camera so that light is not shining directly into lens. 2. This difference does not indicate a problem or malfunction. |
| Color of recorded image is strange. | ||
| No +/- button operation during multi-page display | Button operation during page change | Wait until an image is on the LCD before performing a button operation. |
| All pages do not appear during auto play. | Protected memory pages are hidden. Unhide protected memory pages (page 45). | |
