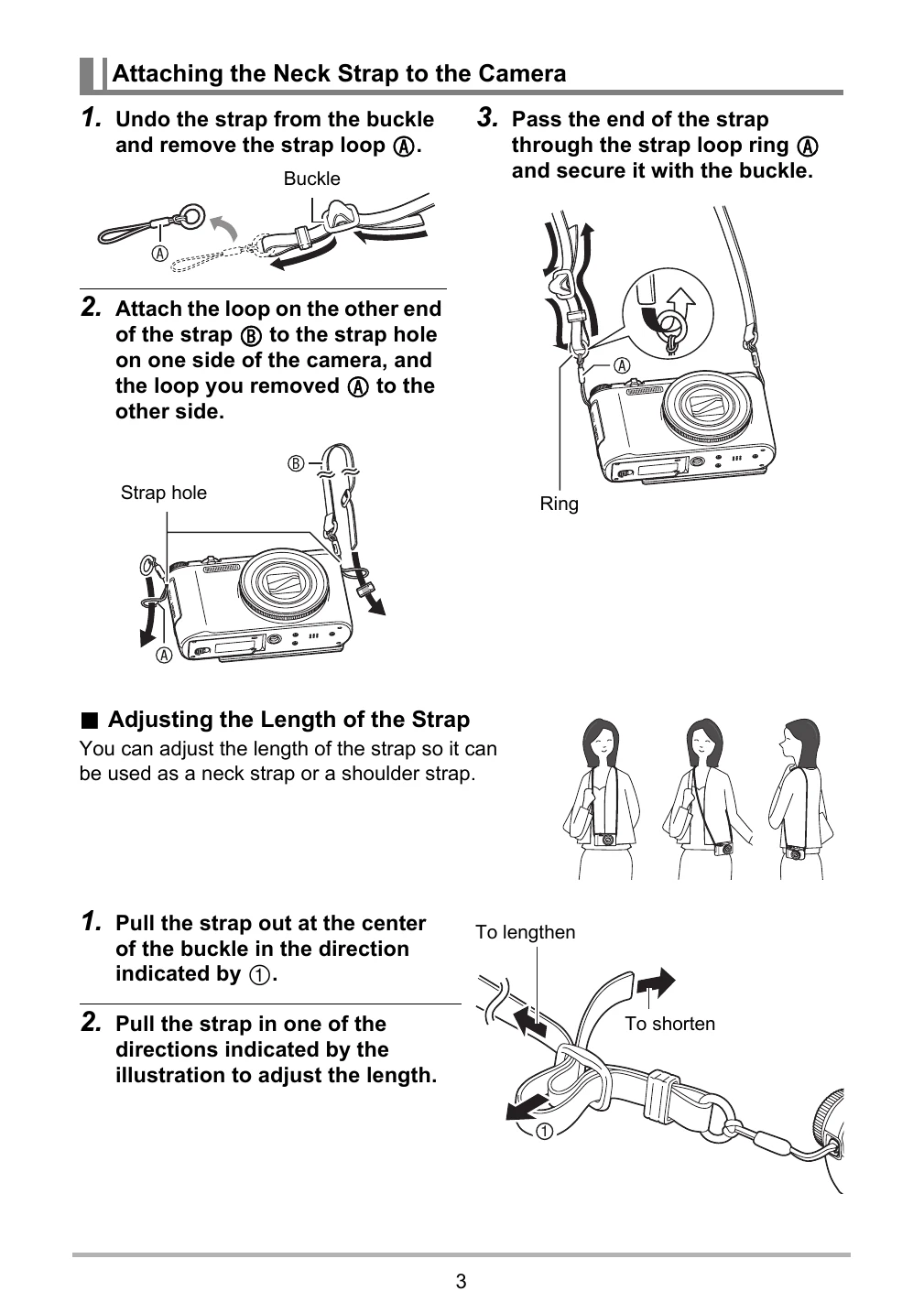

Attaching the Neck Strap

  1. Undo the strap from the buckle and remove the strap loop A.
  2. Attach the loop on the other end of the strap B to the strap hole on one side of the camera, and the loop you removed A to the other side.
  3. Pass the end of the strap through the strap loop ring A and secure it with the buckle.

Adjusting the Length of the Strap

  1. Pull the strap out at the center of the buckle in the direction indicated by 1.
  2. Pull the strap in one of the directions indicated by the illustration to adjust the length.

Using the Stand

Pull out the built-in stand to keep the camera stable on a tabletop or other surface when the monitor screen is tilted. Adjust the vertical angle by changing how far you pull out the stand.

Charging the Battery

  1. Open the battery cover.
  2. Load the rechargeable lithium ion battery (NP-130A or NP-130).

Troubleshooting and error codes

Problem Possible Cause and Recommended Action
A recorded image was not saved. 1)Camera power may have been turned off before the save operation was complete, which will result in the image not being saved. If the battery indicator shows ■, charge the battery as soon as possible (page 28).
2)You may have removed the memory card from the camera before the save operation was complete, which will result in the image not being saved. Do not remove the memory card before the save operation is complete.
Though available lighting is bright, the faces of people in the image are dark. Not enough light is reaching the subjects. Change the flash mode setting to ▧ (Flash On) for daylight synchro flash (page 56), or adjust EV shift to the + side (page 55).
Night shots come out bad. Use the following BEST SHOT scenes (page 83) when shooting at night.
• HS Night Scene (for shooting night scenery only)
• HS Night Scene and Portrait (for shooting people against night scenery)
Subjects are too dark when shooting images in a seashore or ski area. Sunlight reflected by water, sand, or snow, can cause underexposure of images. Change the flash mode setting to ▧ (Flash On) for daylight synchro flash (page 56), or adjust EV shift to the + side (page 55).
Digital zoom will not go up to the maximum value. 1)The digital zoom setting may be turned off. Turn on digital zoom (page 115).
2)Zoom will not go up to the maximum value if the “Zoom (SR)” setting is "Single". Change the setting to "Off" (page 63).
3)Zoom will not go up to the maximum value if the snapshot size setting is something other than “VGA”. Change to a different setting (page 109).
The image is out of focus during movie recording. 1)Focusing may not be possible because the subject is outside the focus range. Shoot within the allowable range.
2) The lens may be dirty. Clean the lens (page 190).
3)During High Speed Movie recording, focus is fixed at the position where it was when recording started. To focus an image, half-press the shutter button for Auto Focus or focus manually before you press [●] (Movie) to start recording.
Movie recording suddenly stops. The camera's protection function may have activated because camera temperature is too high. Wait until the camera temperature drops to normal levels.
The monitor screen goes blank and camera operation becomes disabled. Selecting S or M for the recording mode and using a slow shutter speed will cause the monitor screen to go blank during the period from when the shutter button is pressed until image recording is complete. Camera operations are disabled during this time. Wait until the back lamp goes out and an image appears on the monitor screen again.
Some menu items may not be available, depending on the recording mode in use. While Premium Auto Pro is in use, only the menu items whose settings can be configured will be displayed on the menus.
The color of the playback image is different from what appears on the monitor screen when shooting. Sunlight or light from another source may be shining directly into the lens when you are shooting. Position the camera so sunlight does not shine directly into the lens.
Images are not displayed. This camera cannot display non-DCF images recorded onto a memory card using another digital camera.
Images cannot be edited (with White Balance, Brightness, Resize, Trimming, Rotation). Note that you cannot edit the following types of snapshots.
• Snapshots created using MOTION PRINT
• CS group snapshots
• Movies
• Panorama Image
• Snapshots recorded with another camera
A file cannot be deleted. 1)The file may be protected. Unprotect the file (page 145).
2)“Delete Key” setting may be “Disabled”. Change the setting to "Enabled" (page 176).
The wrong date and time are displayed, or the wrong date and time are being stored along with image data. The date and time setting is off. Set the correct date and time (page 178).
The messages on the display are in the wrong language. The wrong display language is selected. Change the display language setting (page 179).
Images cannot be transferred over a USB connection. 1)The USB cable may not be connected securely. Check all connections.
2)If the camera is not turned on, turn it on.
3) Your computer may not be able to recognize the camera if you connect via a USB hub. Always connect directly to the computer's USB port.
4)USB communication may not be possible when the battery level indicator is ■. Charge the battery before connecting.
Language selection screen appears when the camera is turned on. 1)You did not configure initial settings after purchasing the camera or the camera may have been left with a dead battery. Configure the correct settings (pages 28, 179).
2)There may be a problem with the camera's memory data. If this is the case, perform the reset operation to initialize the camera's setup (page 180). After that, configure each setting. If the language selection screen does not re-appear when you turn the camera on, it means that the camera's memory management data has been restored.
If the same message appears after you turn power back on, contact your retailer or a CASIO authorized service center.
There are various indicators and values on the monitor screen. The monitor screen shows indicators and other information about shooting conditions and the image you are recording. You can use [▲] (DISP) to select what information you want to include on the display (page 13).
The time and date settings configured the first time after purchasing the camera are reset to their factory defaults when I remove the camera's battery. Load the camera's battery and reconfigure the time and date settings (page 28). Do not remove the battery from the camera for at least 24 hours after configuring time and date settings. After that, the settings will not be reset if you remove the battery.
• If the time and date are reset to their factory default settings when you remove the battery after it has been loaded for more than 24 hours, it could mean that the camera's setting memory is defective. Contact your retailer or a CASIO authorized service center.
Buttons are not responsive right after the power has been turned on. With large capacity memory cards there is a delay after the power has been turned on before the buttons become responsive.
ALERT The camera's protection function may have activated because camera temperature is too high. Turn off the camera and wait until it cools down before trying to use it again.
Battery is low. Battery power is low.
Can not find the file. The image you specified with the slideshow “Images” setting cannot be found. Change the “Images” setting (page 137) and try again.
Card ERROR There is something wrong with the memory card. Turn off the camera, remove the memory card and then reload it into the camera. If this message re-appears when you turn the camera back on, format the memory card (page 180).
• IMPORTANT!
Formatting a memory card deletes all its files. Before formatting, try transferring recoverable files to a computer or some other storage device.
Connecting to the network Camera power was turned off while image data was being copied to a computer or other device using a FlashAir card or an Eye-Fi card (pages 164, 166).
File could not be saved because battery is low. Battery power is low, so an image file could not be saved.
Folder cannot be created. You are trying to record a file while there are already 9999 files stored in the 999th folder. If you want to record more, delete files you no longer need (page 40).
LENS ERROR This message appears and the camera turns off whenever the lens performs some unexpected operation. If the same message appears after you turn power back on, contact a CASIO authorized service center or your original retailer.
LENS ERROR 2 The Anti Shake unit of the camera may be malfunctioning. If the same message appears after you turn power back on, contact your retailer or a CASIO authorized service center.
Memory Full Memory is full with images you recorded and/or files saved by editing operations. When shooting with Prerecord CS, this message indicates that there is not enough memory capacity to record all of the pre-recorded images. Delete files you no longer need (page 40).
Record Error Image compression could not be performed for some reason during image data recording. Perform a zoom operation to change the composition of the image and shoot it again.
SYSTEM ERROR Your camera system is corrupted. Contact your retailer or a CASIO authorized service center.
The card is locked. The LOCK switch of the SD, SDHC, or SDXC memory card loaded in the camera is in the locked position. You cannot store images to or delete images from a memory card that is locked.
There are no files. There are no files in built-in memory or on the memory card.
There is no image to register. The setup you are trying to save is for an image that cannot be saved as a user "CUSTOM SHOT" scene.
This card is not formatted. The memory card loaded in the camera is not formatted. Format the memory card (page 180).
This file cannot be played. The file you are trying to access is corrupted or is a type that cannot be displayed by this camera.
This function cannot be used. This message will appear part way through an operation when you attempt to use a function that is not allowed in combination with another function.
