Manual for EX-Z850
Uploaded: Aug. 9, 2025, 11:43 p.m.

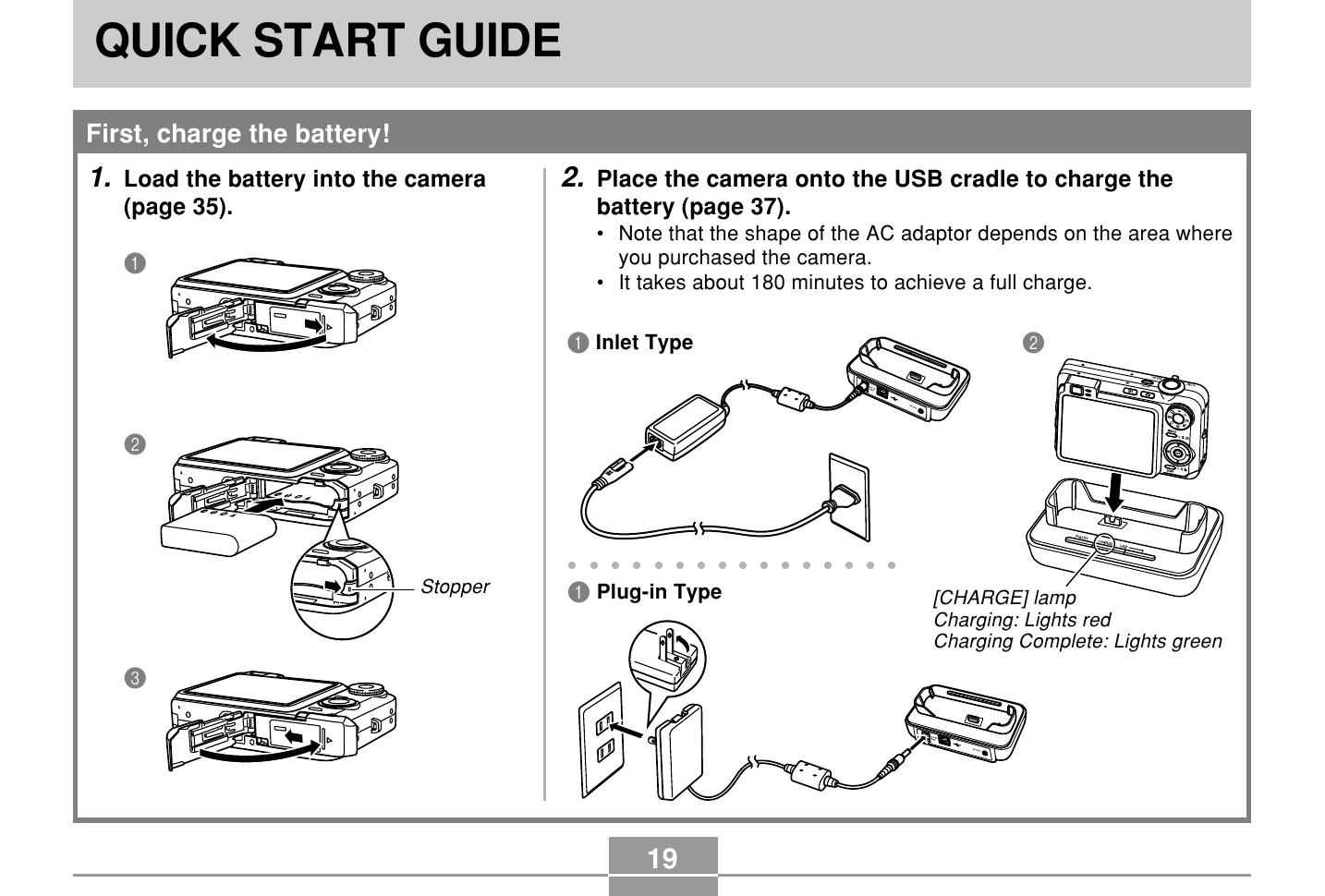

Charging the Battery: Load the NP-40 battery into the camera. Place the camera on the USB cradle and connect it to a power source. The 'CHARGE' lamp indicates charging status (red for charging, green for complete). A full charge takes about 180 minutes.
Setting Language and Clock: Turn on the camera. Use the directional buttons ([▲], [▼], [◀], [▶]) and the [SET] button to select the language, geographical area, city, and date format. Set the current date and time, then press [SET] to confirm.
Recording an Image: Press [O] (REC) to enter recording mode. Align the mode dial to "Snapshot mode". Compose the image on the monitor or viewfinder and press the shutter button halfway. When the focus frame turns green, press the shutter button all the way down to capture the image.
Viewing Images: Press [□] (PLAY) to enter playback mode. Use the directional buttons ([◀], [▶]) to scroll through recorded images.
Deleting Images: Press [□] (PLAY) to enter playback mode. Scroll to the image you want to delete. Press [▼] to select "Delete", then press [SET].
Troubleshooting and error codes
| Symptom | Possible Cause | Action |
|---|---|---|
| Camera powers down during self-timer countdown. | The battery is dead. | Charge the battery (page 37). |
| Monitor screen image is out of focus. | 1) Manual Focus mode used, and image not focused. 2) Macro mode used for scenery or portrait. 3) Auto Focus or Infinity mode used for close-up. | 1) Focus the image (page 86). 2) Use Auto Focus for scenery and portrait. 3) Use Macro mode for close-ups. |
| Recorded images are not saved in memory. | 1) Camera powers down before save operation. 2) Memory card removed before save operation. | 1) Charge battery when indicator shows low. 2) Do not remove memory card before save operation completes. |
| Though available lighting is bright, faces of human subjects appear dark. | Not enough light reaching subjects. | • Change flash mode to "⚡" (flash on) for daylight synchro flash (page 69). • Increase EV shift value (page 88). |
| Subjects are too dark when recording images on a seashore or at a ski area. | Sunlight reflected by water, sand, or snow can cause underexposure. | • Change flash mode to "⚡" (flash on) for daylight synchro flash (page 69). • Increase EV shift value (page 88). |
| Vertical lines on the monitor screen. | Recording a very brightly lit subject can cause a vertical band to appear in the monitor screen image. | This is a CCD phenomenon known as "vertical smear", and does not indicate malfunction. Note that vertical smear is not recorded with the image in the case of a snapshot, but it is recorded in the case of a movie. |
| Out of focus images. | The subject is outside the shooting range of the camera. | Record within the allowable shooting range. |
| Digital noise in images. | Sensitivity is increased automatically for dark subjects. Greater sensitivity increases the chance of digital noise. | Use a light or some other means to illuminate the subject. |
| Color of the playback image is different from the image on the monitor screen during recording. | Sunlight or light from another source is shining directly into the lens during recording. | Position the camera so sunlight does not shine directly into the lens. |
| Images are not displayed. | A memory card with non-DCF images recorded with another camera is loaded in the camera. | This camera cannot display non-DCF images recorded onto a memory card using another digital camera. |
| All buttons and switches are disabled. | Circuit problem caused by electrostatic charge, impact, etc. while the camera was connected to another device. | Remove the battery from the camera, reinsert it, and then try again. |
| Monitor screen is off. | USB communication is in progress. | After confirming that the computer is not accessing camera memory, disconnect the USB cable. |
| Cannot transfer files over a USB connection. | 1) Camera not set securely on USB cradle. 2) USB cable not connected securely. 3) USB driver not installed. 4) Camera is turned off. | 1) Check connection between camera and USB cradle. 2) Check all connections. 3) Install USB driver on computer (page 220). 4) Press [USB] button on USB cradle. |
