Manual for EX-Z500

Manual for EX-Z500

Brand: CASIO

Category: Digital Camera

Document Type:

Language: EN

Uploaded: Aug. 9, 2025, 11:43 p.m.

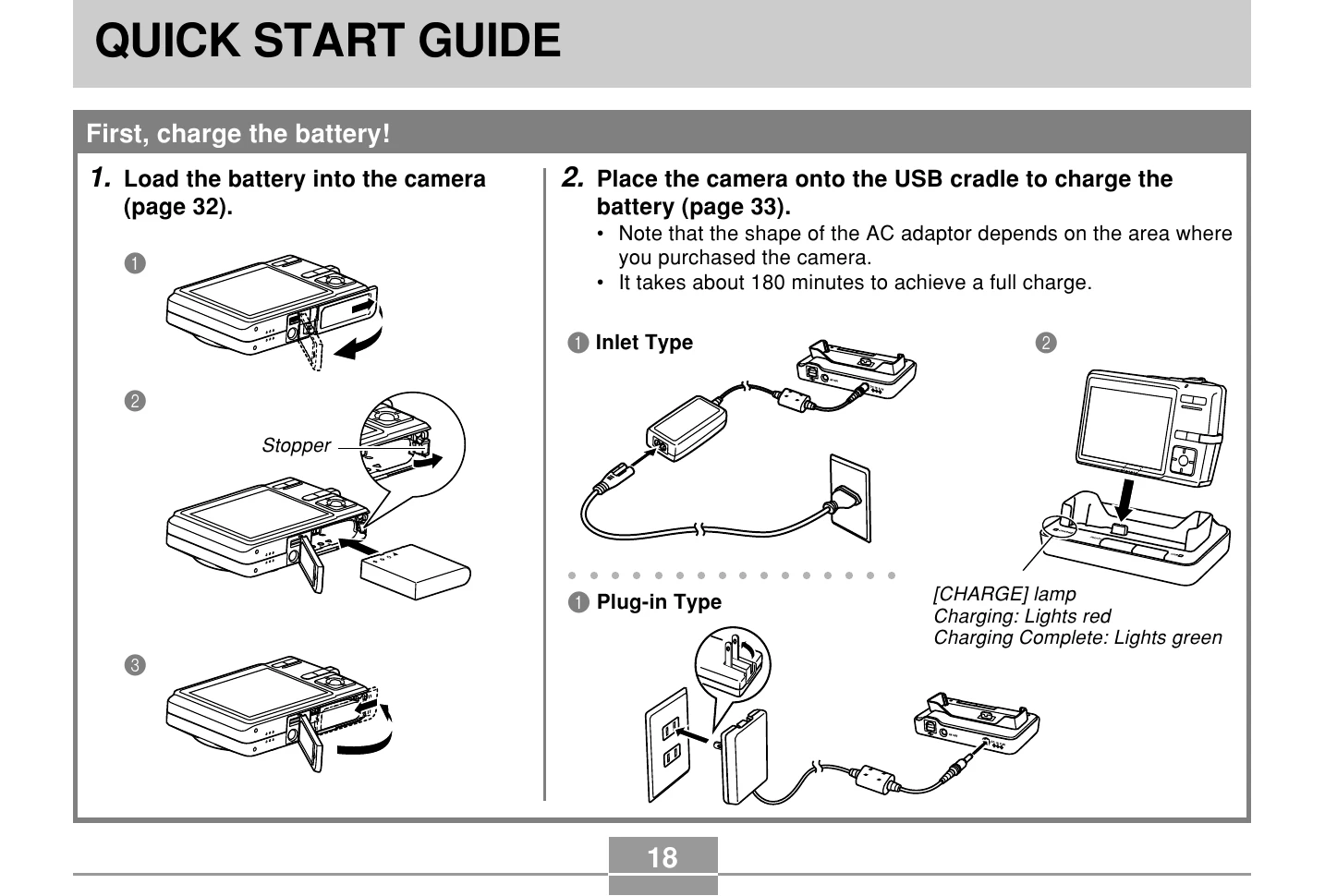

  • First, charge the battery: Load the battery and place the camera on the USB cradle to charge. The charging process takes about 180 minutes for a full charge.
  • Configure settings: Turn on the camera and set the display language, geographical area, city, daylight saving time, and date format. Then, set the current date and time.
  • Record an image: Press the power button to turn on the camera. Point it at the subject, press the shutter button halfway to focus, and then press it fully to capture the image.
  • View a recorded image: Press the PLAY button to enter playback mode. Use the left and right directional buttons to scroll through the images.
  • Delete an image: In playback mode, select the image to delete, navigate to the "Delete" option using the directional buttons, and press SET to confirm.

Troubleshooting and error codes

SymptomPossible CauseAction
Auto Focus does not focus properly. 1) The lens is dirty.
2) The subject is not located in the center of the focus frame when you compose the image.
3) The subject you are shooting is a type that is not compatible with Auto Focus operation (page 57).
4) You are moving the camera.		 1) Clean the lens.
2) Make sure the subject is centered in the focus frame when composing the image.
3) Use manual focus (page 78).
4) Mount the camera on a tripod.
The subject is out of focus in the recorded image. The image is not focused properly. When composing the image, make sure the subject on which you want to focus is located inside the focus frame.
Scenery shots are out of focus. 1) The image is not focused properly.
2) The wrong focus mode is selected.
3) The wrong BEST SHOT scene is selected.		 1) When composing the image, make sure the subject on which you want to focus is located inside the focus frame (page 53).
2) Change the focus mode to "AF" (Auto Focus, page 73) or "∞" (infinity, page 77).
3) Change the BEST SHOT scene to “Scenery” (page 86).
The flash does not fire. 1) "◢" (flash off) is selected as the flash mode.
2) The battery is dead.
3) A scene that selects "◢" (flash off) as the flash mode is selected in the BEST SHOT mode.		 1) Select a different flash mode (page 62).
2) Charge the battery (page 33).
3) Select a different flash mode (page 62) or BEST SHOT scene (page 86).
Camera powers down during self-timer countdown. The battery is dead. Charge the battery (page 33).
Monitor screen image is out of focus. 1) You are using the Manual Focus mode and have not focused the image.
2) You are trying to use the Macro mode [○] when shooting a scenery or portrait shot.
3) You are trying to use Auto Focus or the Infinity mode (∞) when shooting a close-up shot.		 1) Focus the image (page 78).
2) Use Auto Focus for scenery and portrait shots.
3) Use the Macro mode [○] for close-ups.
Recorded images are not saved in memory. 1) Camera powers down before the save operation is complete.
2) Removing the memory card before the save operation is complete.		 1) When the battery indicator shows "■", charge the battery as soon as possible (page 33).
2) Do not remove the memory card before the save operation is complete.
Though available lighting is bright, the faces of human subjects appear dark. Not enough light is reaching the subjects.
  • Change the flash mode setting to "◡" (flash on) for daylight synchro flash (page 63).
  • Increase the EV shift value (page 80).
Subjects are too dark when recording images on a seashore or at a ski area. Sunlight reflected by water, sand, or snow, can cause underexposure of images.
  • Change the flash mode setting to "◡" (flash on) for daylight synchro flash (page 63).
  • Increase the EV shift value (page 80).
Vertical lines on the monitor screen. Recording a very brightly lit subject can cause a vertical band to appear in the monitor screen image. This is a CCD phenomenon known as “vertical smear”, and does not indicate malfunction of the camera. Note that vertical smear is not recorded with the image in the case of a snapshot, but it is recorded in the case of a movie.
Out of focus images. The subject is outside the shooting range of the camera. Record within the allowable shooting range.
Digital noise in images. Sensitivity is increased automatically for dark subjects. Greater sensitivity increases the chance of digital noise. Use a light or some other means to illuminate the subject.
Color of the playback image is different from the image on the monitor screen during recording. Sunlight or light from another source is shining directly into the lens during recording. Position the camera so sunlight does not shine directly into the lens.
Images are not displayed. A memory card with non-DCF images recorded with another camera is loaded in the camera. This camera cannot display non-DCF images recorded onto a memory card using another digital camera.
All buttons and switches are disabled. Circuit problem caused by electrostatic charge, impact, etc. while the camera was connected to another device. Remove the battery from the camera, reinsert it, and then try again.
Monitor screen is off. USB communication is in progress. After confirming that the computer is not accessing camera memory, disconnect the USB cable.
Cannot transfer files over a USB connection. 1) Camera is not set securely on the USB cradle.
2) USB cable is not connected securely.
3) USB driver is not installed.
4) Camera is turned off.		 1) Check the connection between the camera and USB cradle.
2) Check all connections.
3) Install the USB driver on your computer (page 176).
4) Press the [USB] button on the USB cradle.
