Manual for EX-V7

Manual for EX-V7

Brand: CASIO

Category: Digital Camera

Document Type:

Language: EN

Uploaded: Aug. 9, 2025, 11:42 p.m.

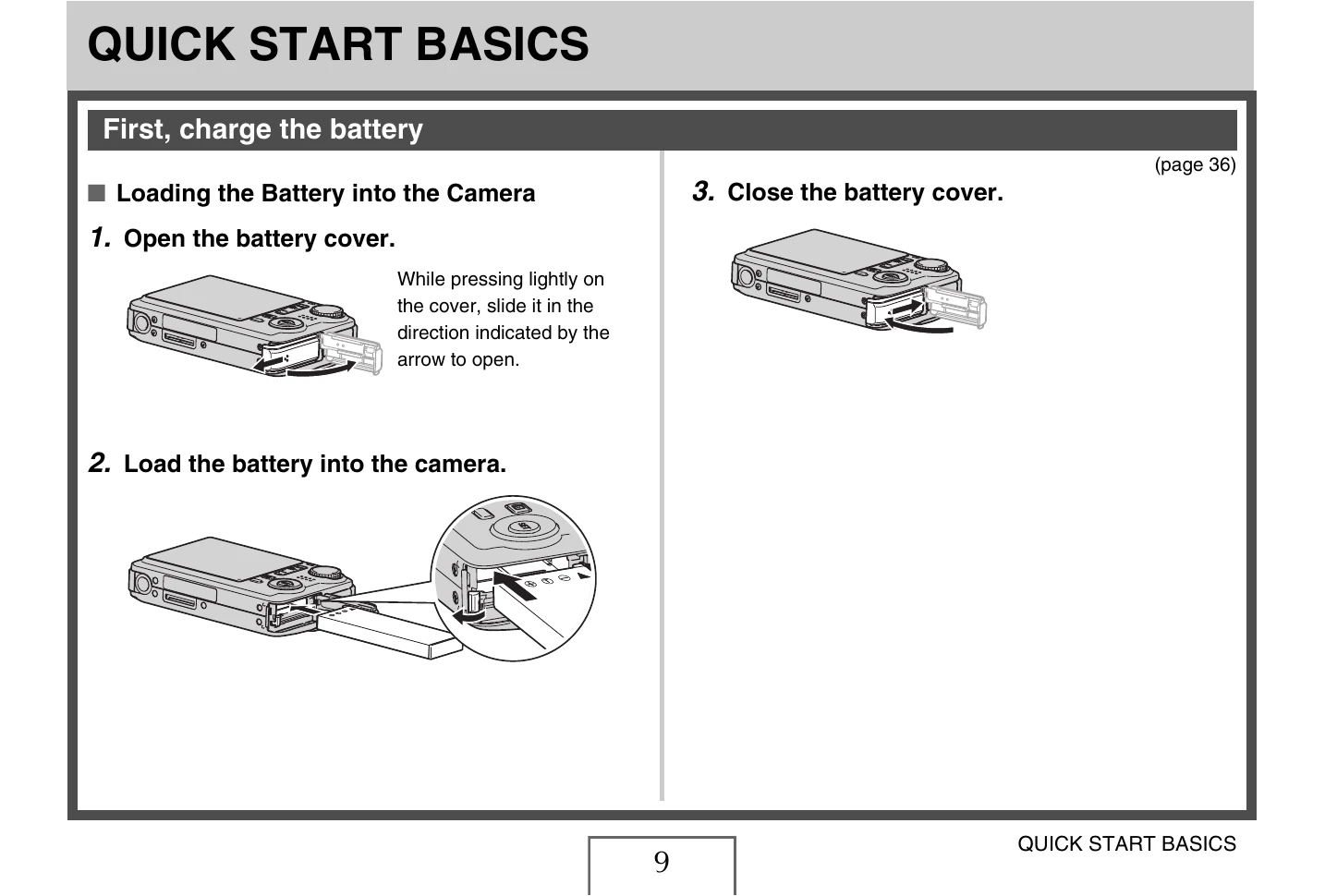

  • Charging the Battery: Load the battery into the camera or use the USB cradle with the AC adaptor to charge. Charging takes about 150 minutes for a full charge.
  • Initial Setup: Turn on the camera by sliding the lens cover. Follow on-screen prompts to set the display language, date, and time.
  • Using a Memory Card: Insert a memory card into the camera after opening the battery cover. Format the card if necessary through the camera's menu.
  • Shooting a Snapshot: Slide open the lens cover, select "Snapshot" mode using the mode dial, point at the subject, and half-press the shutter button to focus. Press fully to capture the image.
  • Shooting a Movie: Select "Movie" mode, press the shutter button to start recording, and press it again to stop. Audio is recorded simultaneously.
  • Viewing Images: Press the [PLAY] button to enter PLAY mode and use the directional buttons to scroll through captured images and movies. Press [SET] to play movies.
  • Deleting Files: In PLAY mode, select the file, press [▲] to choose "Delete", and confirm with [SET].

Troubleshooting and error codes

Problem Possible Causes and Action
Playback
The color of the playback image is different from what appears on the monitor screen when shooting. Sunlight or light from another source may be shining directly into the lens when you are shooting. Position the camera so sunlight does not shine directly into the lens.
Images are not displayed. This camera cannot display non-DCF images recorded onto a memory card using another digital camera.
I can't edit images (layout print, resizing, trimming, keystone correction, color restoration, rotation, white balance, date/time editing). Note that you cannot edit the following types of images.
  • Images created with MOTION PRINT
  • Movies
  • Images recorded with another camera
Other
The wrong date and time are displayed. The date and time setting is wrong. Set the correct date and time (page 198).
The messages on the display are in the wrong language. The wrong display language is selected. Change the display language setting (page 201).
I can't transfer images over a USB connection. 1) The USB cable may not be connected securely. Check all connections.
2) USB driver may not be installed. Install the USB driver (page 221).
3) The USB driver may have been installed incorrectly. Reinstall the USB driver correctly (page 221).
4) The wrong USB communication protocol may be selected. Select the correct USB communication protocol in accordance with the type of device you are connecting (page 203).
5) If the camera is not turned on, turn it on.
Display language setting screen appears when the camera is turned on. 1) You did not configure initial settings after purchasing the camera or the battery may have been left with a dead battery. Check the camera setup (pages 11, 198).
2) It may be a problem with the camera's built-in memory management area. If this is the case, perform the reset operation to initialize the camera's setup (page 145). After that, configure each setting. If the language selection screen does not re-appear when you turn the camera on, it means that the camera's built-in memory management area has been restored.
If the same message appears after you turn power back on, contact your retailer or a CASIO service center.
Display Messages
Battery is low. Battery power is low.
Camera Stabilizer is not available The Camera Shake unit may be malfunctioning. If the same message appears after you turn power back on, contact your retailer or a CASIO service center.
Cannot correct image! Keystone correction of the image cannot be performed for some reason. The image will be stored as-is, without correction (page 104).
Cannot find the file. The image you specified with the slideshow "Images" setting cannot be found. Change the "Images" setting (page 151) and try again.
Cannot register any more files.
  • You are attempting to save a BEST SHOT scene when there are already 999 scenes in the “SCENE” folder (page 101).
  • You are attempting to copy a FAVORITE file when the “FAVORITE” folder already contains 9999 files (page 187).
Card ERROR There is something wrong with the memory card. Turn off the camera, remove the memory card, and then reload it into the camera. If this message re-appears when you turn the camera back on, format the memory card (page 50).
IMPORTANT!
Formatting the memory card deletes all its files. Before formatting, try transferring recoverable files to a computer or some other storage device.
Check connections!
  • You are attempting to connect the camera to a printer while the camera's USB settings are not compatible with the USB system of the printer (page 203).
  • You are attempting to connect to a computer that does not have a USB driver installed (page 221).
Files could not be saved because battery is low. Battery power is low, so an image file could not be saved.
Folder cannot be created. You are trying to record a file while there are already 9,999 files stored in the 999th folder. If you want to record more, delete files you no longer need (page 192).
LENS ERROR This message appears and the camera turns off whenever lens performs some unexpected operation. If the same message appears after you turn power back on, contact your retailer or a CASIO service center.
Load paper! The printer ran out of paper while printing.
Memory Full Memory is full with images you recorded and/or of files saved by editing operations. Delete files you no longer need (page 192).
No Favorites file! The FAVORITE folder does not contain any files.
Printing Error An error occurred while printing.
  • The printer is turned off.
  • The printer generated an error, etc.
Record Error Image compression could not be performed for some reason during image data storage. Shoot the image again.
Replenish ink! During printing, the printer is running low on ink or is out of ink.
SYSTEM ERROR Your camera system is corrupted. Contact your retailer or an authorized CASIO service center.
The card is locked. The LOCK switch of the SD memory card or SDHC memory card loaded in the camera is in the locked position. You cannot store images to or delete images from a memory card that is locked.
This file cannot be played. The file you are trying to access is corrupted or is a type that cannot be displayed by this camera.
This function cannot be used. You attempted to copy images from built-in memory to a memory card while there is no memory card loaded in the camera (page 189).
This function is not supported for this file. The function you are trying to use cannot be performed for some reason.
There are no files. There are no files in built-in memory or on the memory card.
There are no printing images. Set up DPOF. There are currently no files specified for printing. Configure the required DPOF settings (page 211).
There is no image to register. The setup you are trying to save is for an image that cannot be saved as a user BEST SHOT scene.
This card is not formatted. The memory card loaded in the camera is not formatted. Format the memory card (page 50).
