Manual for EX-S2/EX-M2

Manual for EX-S2/EX-M2

Brand: CASIO

Category: Digital Camera

Document Type:

Language: EN

Uploaded: Aug. 9, 2025, 11:42 p.m.

Manual Publish Date: null

Warranty Information

null

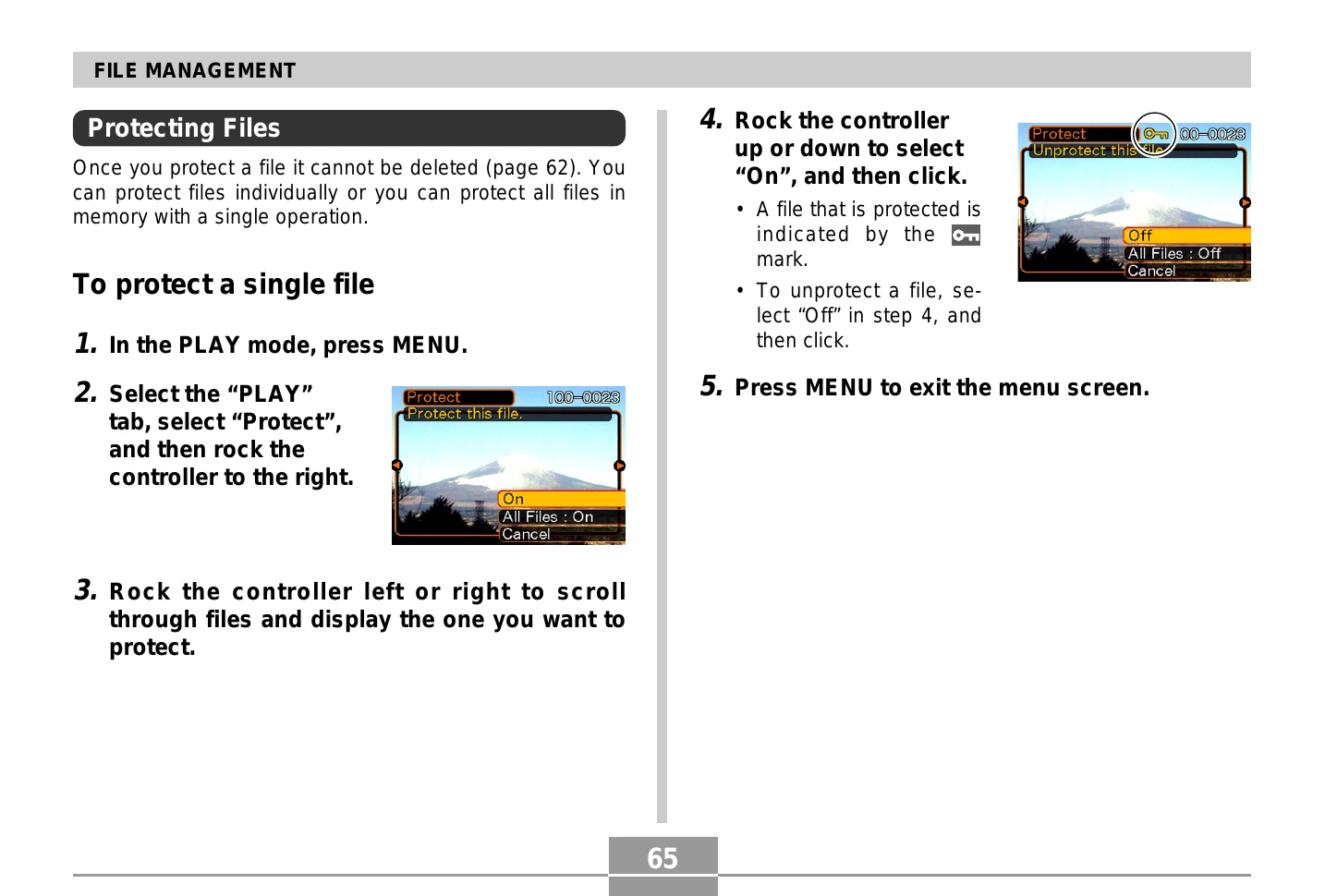

  • File Management: Organize and protect your photos. Protect individual files or all files at once. Use DPOF for printing specifications.
  • Using the FAVORITE Folder: Copy important snapshots to a dedicated FAVORITE folder for easy tracking.
  • Connecting to a Computer: Use the USB cradle to transfer files. Install necessary software like Photo Loader and USB Driver from the CD-ROM.
  • Memory Card Usage: Expand storage with SD or MultiMedia Cards. Format cards for optimal performance.

Troubleshooting and error codes

SymptomPossible CauseAction
Power does not turn on.The battery is dead.Charge the battery (page 24). If the battery goes dead soon after being charged, it means the battery has reached the end of its life and needs to be replaced. Purchase a separately available NP-20 rechargeable lithium ion battery.
Camera suddenly powers down.1) Auto Power Off activated (page 29).
2) The battery is dead.		1) Turn power back on.
2) Charge the battery (page 24).
Image is not recorded when the shutter release button is pressed.1) Mode selector is set to \"PLAY” or “AUDIO”.
2) Flash unit is being charged.
3) Memory is full.		1) Align the mode selector with “REC”.
2) Wait until the flash unit finishes charging.
3) Transfer files you want to keep to your computer and then delete files from camera memory, or use a different memory card.
Camera powers down during self-timer countdown.The battery is dead.Charge the battery (page 24).
Recorded images are not saved in memory.1) Camera powers down before the save operation is complete.
2) Removing the memory card before the save operation is complete.		1) When the battery indicator shows , charge the battery as soon as possible (page 24).
2) Do not remove the memory card before the save operation is complete.
Color of the playback image is different from the image on the monitor screen during recording.Sunlight or light from another source is shining directly into the lens during recording.Position the camera so sunlight does not shine directly into the lens.
Images are not displayed.A memory card with non-DCF images recorded with another camera is loaded in the camera.This camera cannot display non-DCF images recorded onto a memory card using another digital camera.
Cannot playback audio, cannot hear audio, or cannot control the audio playback using the remote controller.1) Mode selector is set to “REC” or “PLAY”.
2) There is no MP3 file data in memory. This is indicated by the message “NoData” on the remote controller LCD.
3) Stereo headphones are not connected correctly.
4) Volume setting is too low.
5) The battery is dead.
6) The remote controller buttons are locked.
7) There are no playable files.
8) Improper PLAYLIST.TXT file contents		1) Align the mode selector with “AUDIO”.
2) Transfer MP3 files to the camera's AUDIO folder.
3) Correctly connect the headphones to the headphones jack.
4) Adjust the volume to a higher level.
5) Charge the battery (page 24).
6) Slide the remote controller lock switch in the opposite direction of the arrow marking to unlock the controls.
7) Check the files you are trying to play (page 96).
8) Check to make sure the PLAYLIST.TXT file lists the MP3 files you want to play.
Playback time is short.The battery is dead.Charge the battery (page 24).
All buttons and switches are disabled.Circuit problem caused by electrostatic charge, impact, etc. while the camera was connected to another device.Remove the battery from the camera, reinsert it, and then try again.
Monitor screen is off.1) "LCD-OFF” is selected for the “Indicators" setting on the REC tab.
2) USB communication is in progress.		1) On the REC tab menu, change the “Indicators” setting to “LCD-ON” (page 51).
2) After confirming that the computer is not accessing camera memory, disconnect the USB cable.
Cannot transfer files over a USB connection.1) Camera is not set securely on the USB cradle.
2) USB cable is not connected securely.
3) USB driver is not installed.
4) Camera is turned off.		1) Check the connection between the camera and USB cradle.
2) Check all connections.
3) Install the USB driver on your computer (page 81).
4) Turn on the camera.
