This digital camera allows users to record and delete images multiple times on a memory card. Users can store images on their computer, print them, or attach them to emails. The camera features High Speed CS/Prerecord CS for shooting up to 30 images per second, High Speed Movie recording up to 1000 frames per second for slow-motion playback, and HD Movie Recording at 1280x720 pixels, 30 fps.

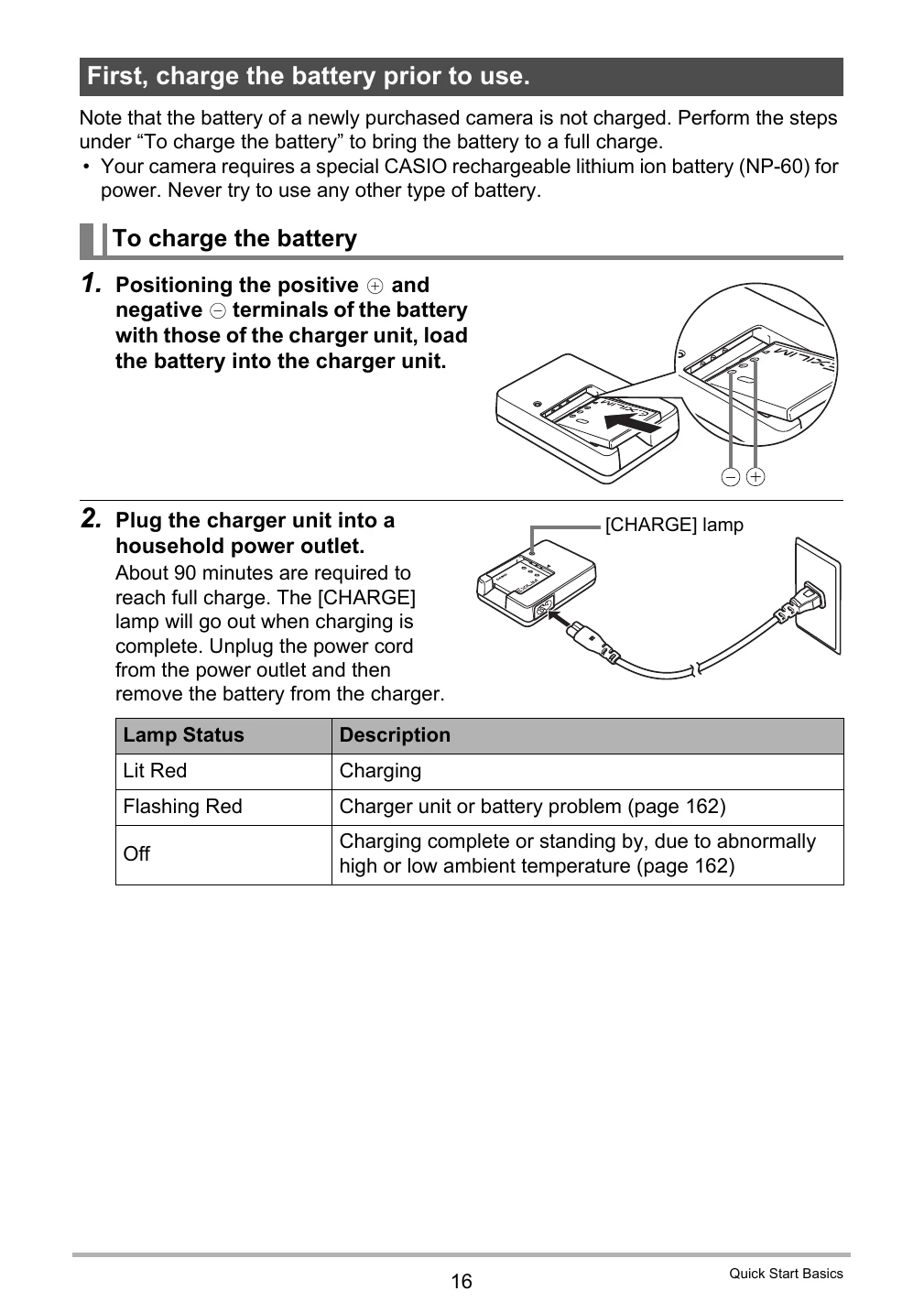

To begin, charge the battery fully. Insert the battery into the charger, connect to a power outlet, and wait for the charging lamp to go out. Load the charged battery into the camera. When turning on the camera for the first time, configure display language, date, and time settings. Ensure the memory card is loaded correctly. If using a new memory card, format it using the camera's menu.
Troubleshooting and error codes
| Problem | Possible Cause and Recommended Action |
|---|---|
| Playback The color of the playback image is different from what appears on the monitor screen when shooting. |
Sunlight or light from another source may be shining directly into the lens when you are shooting. Position the camera so sunlight does not shine directly into the lens. |
| Images are not displayed. | This camera cannot display non-DCF images recorded onto a memory card using another digital camera. |
| Images cannot be edited (with White Balance, Brightness, Trimming, Rotation, Resize). | Note that you cannot edit the following types of snapshots. • Snapshots created using MOTION PRINT • CS group snapshots • Movies • Snapshots recorded with another camera |
| Other The wrong date and time are displayed, or the wrong date and time are being stored along with image data. |
The date and time setting is off. Set the correct date and time (page 147). |
| The messages on the display are in the wrong language. | The wrong display language is selected. Change the display language setting (page 148). |
| Images cannot be transferred over a USB connection. | 1)The USB cable may not be connected securely. Check all connections. 2)The wrong USB communication protocol is selected. Select the correct USB communication protocol in accordance with the type of device you are connecting (pages 126, 135). 3) If the camera is not turned on, turn it on. 4)Your computer may not be able to recognize the camera if you connect via a USB hub. Always connect directly to the computer's USB port. |
| Language selection screen appears when the camera is turned on. | 1)You did not configure initial settings after purchasing the camera or the battery may have been left with a dead battery. Configure the correct settings (pages 19, 148). 2)There may be a problem with the camera's memory data. If this is the case, perform the reset operation to initialize the camera's setup (page 152). After that, configure each setting. If the language selection screen does not re-appear when you turn the camera on, it means that the camera's memory management data has been restored. If the same message appears after you turn power back on, contact your retailer or a CASIO authorized service center. |
| The time and date settings configured the first time after purchasing the camera are reset to their factory defaults when I remove the camera's battery. | Load the camera's battery and reconfigure the time and date settings (page 19). Do not remove the battery from the camera for at least 24 hours after configuring time and date settings. After that, the settings will not be reset if you remove the battery. • If the time and date are reset to their factory default settings when you remove the battery after it has been loaded for more than 24 hours, it could mean that the camera's setting memory is defective. Contact your retailer or a CASIO authorized service center. |
