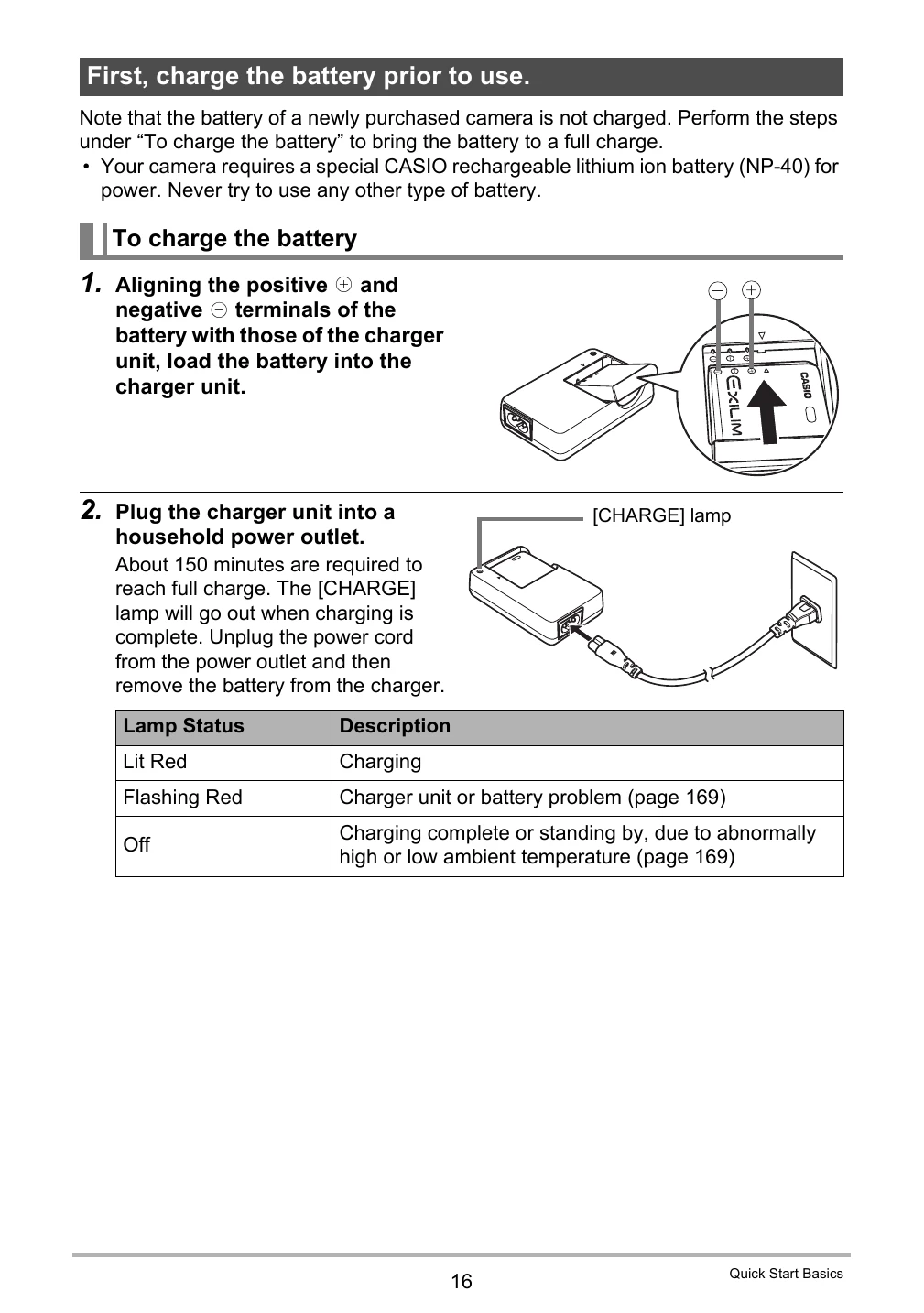

- Charging the Battery: Ensure the battery is fully charged before first use. Align the battery's positive and negative terminals with the charger unit, plug into a household outlet, and wait for the [CHARGE] lamp to go out (approx. 150 minutes).
- Loading the Battery: Open the battery cover, slide the battery in with the EXILIM logo facing upwards, and ensure the stopper secures it.
- Turning On/Off: Press the [ON/OFF] button to turn the camera on.
- Basic Settings: Upon first use, configure display language, date, and time settings.
- Taking a Snapshot: Frame your shot, half-press the shutter button to focus, then fully press to capture the image.
- Recording Movies: Press the [●] (Movie) button to start and stop recording.
- Viewing Images: Press the [] (PLAY) button to review captured photos and movies.
- Memory Cards: Use SD or SDHC memory cards. Ensure they are formatted correctly before use.
- Troubleshooting: Refer to the "When things don't go right..." section for solutions to common problems like date/time display errors, language issues, or transfer problems.
Troubleshooting and error codes
| Problem | Possible Cause and Recommended Action | |
|---|---|---|
| Other | The wrong date and time are displayed, or the wrong date and time are being stored along with image data. | The date and time setting is off. Set the correct date and time (page 153). |
| The messages on the display are in the wrong language. | The wrong display language is selected. Change the display language setting (page 154). | |
| Images cannot be transferred over a USB connection. | 1)The USB cable may not be connected securely. Check all connections. 2)The wrong USB communication protocol is selected. Select the correct USB communication protocol in accordance with the type of device you are connecting (pages 132, 141). 3)If the camera is not turned on, turn it on. 4)Your computer may not be able to recognize the camera if you connect via a USB hub. Always connect directly to the computer's USB port. | |
| Language selection screen appears when the camera is turned on. | 1)You did not configure initial settings after purchasing the camera or the battery may have been left with a dead battery. Configure the correct settings (pages 20, 154). 2)There may be a problem with the camera's memory data. If this is the case, perform the reset operation to initialize the camera's setup (page 158). After that, configure each setting. If the language selection screen does not re-appear when you turn the camera on, it means that the camera's memory management data has been restored. If the same message appears after you turn power back on, contact your retailer or a CASIO authorized service center. | |
| The time and date settings configured the first time after purchasing the camera are reset to their factory defaults when I remove the camera's battery. | Load the camera's battery and reconfigure the time and date settings (page 20). Do not remove the battery from the camera for at least 24 hours after configuring time and date settings. After that, the settings will not be reset if you remove the battery. • If the time and date are reset to their factory default settings when you remove the battery after it has been loaded for more than 24 hours, it could mean that the camera's setting memory is defective. Contact your retailer or a CASIO authorized service center. |
