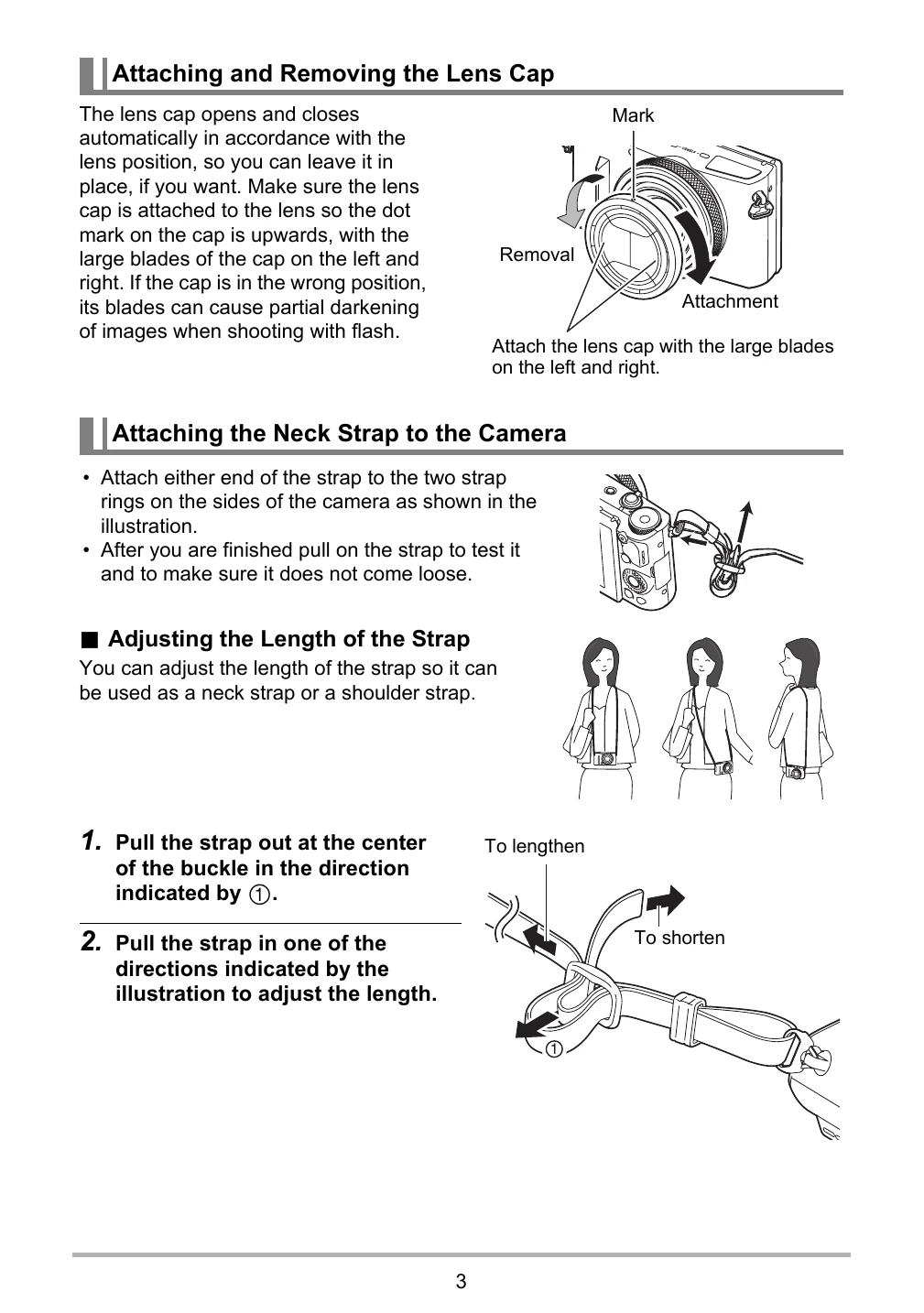

Attaching and Removing the Lens Cap: The lens cap opens and closes automatically with the lens. Ensure the dot mark is upwards for correct attachment.
Attaching the Neck Strap: Attach the strap ends to the camera's strap rings and pull to test security.
Adjusting Strap Length: Use the buckle to adjust the strap for neck or shoulder wear.
Charging the Battery: Load the special CASIO NP-130A rechargeable lithium-ion battery into the camera. Note that the battery is not charged when new.
Tilting the Monitor Screen: The screen can tilt up to 180 degrees for self-portraits or low-angle shots, and down up to 55 degrees. Use the built-in stand for stability on surfaces.
Troubleshooting and error codes
| Problem | Possible Cause and Recommended Action |
|---|---|
| Playback The color of the playback image is different from what appears on the monitor screen when shooting. |
Sunlight or light from another source may be shining directly into the lens when you are shooting. Position the camera so sunlight does not shine directly into the lens. |
| Images are not displayed. | This camera cannot display non-DCF images recorded onto a memory card using another digital camera. |
| Images cannot be edited (with White Balance, Brightness, Resize, Trimming, Rotation). | Note that you cannot edit the following types of snapshots. • Snapshots created using MOTION PRINT • CS and bracketing group snapshots • Movies • Panorama Image • Snapshots recorded with another camera |
| I can't change the settings of menu items. Menu items for some settings are not displayed on the menu. | Some menu items may not be available, depending on the recording mode in use. While Premium Auto Pro is in use, only the menu items whose settings can be configured will be displayed on the menus. |
| File Deletion A file cannot be deleted. |
1)The file may be protected. Unprotect the file (page 147). 2)"Delete Key" setting may be "Disabled". Change the setting to "Enabled" (page 189). |
| Wireless LAN I can't establish a wireless LAN connection. The wireless LAN connection is broken. |
1)The camera cannot connect with a smartphone if they are too far apart from each other. 2)The smartphone may be connected with another wireless LAN. Check the smartphone's Wi-Fi settings and confirm that the camera is selected for wireless LAN connection (page 157). 3)Connection may have been lost due to interference caused by a nearby microwave oven, cordless phone, or other wireless LAN device. Move the camera away from the device causing the problem. |
| Other The wrong date and time are displayed, or the wrong date and time are being stored along with image data. |
The date and time setting is off. Set the correct date and time (page 191). |
| The messages on the display are in the wrong language. | The wrong display language is selected. Change the display language setting (page 192). |
| Images cannot be transferred over a USB connection. | 1)The USB cable may not be connected securely. Check all connections. 2)The wrong USB communication protocol is selected. Select the correct USB communication protocol in accordance with the type of device you are connecting (pages 175, 178). 3)If the camera is not turned on, turn it on. 4) Your computer may not be able to recognize the camera if you connect via a USB hub. Always connect directly to the computer's USB port. 5)USB communication may not be possible when the battery level indicator is  . Charge the battery before connecting. |
| Language selection screen appears when the camera is turned on. | 1)You did not configure initial settings after purchasing the camera or the camera may have been left with a dead battery. Configure the correct settings (pages 27, 192). 2)There may be a problem with the camera's memory data. If this is the case, perform the reset operation to initialize the camera's setup (page 194). After that, configure each setting. If the language selection screen does not re-appear when you turn the camera on, it means that the camera's memory management data has been restored. If the same message appears after you turn power back on, contact your retailer or a CASIO authorized service center. |
| There are various indicators and values on the monitor screen. | The monitor screen shows indicators and other information about shooting conditions and the image you are recording. You can use [▲] (DISP) to select what information you want to include on the display (page 13). |
