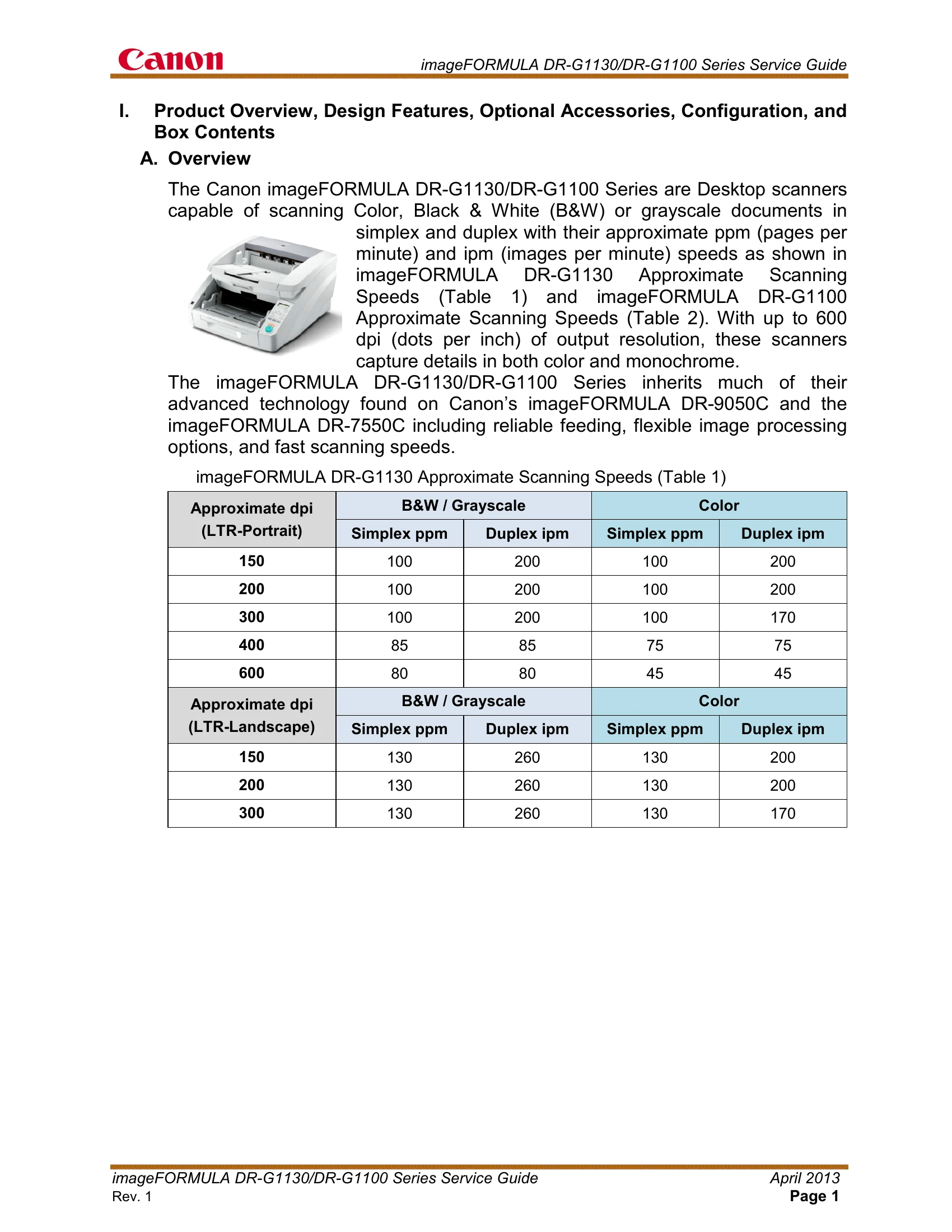

Manual for imageFORMULA DR-G1130/DR-G1100
Uploaded: Sept. 12, 2025, 4:24 a.m.
Manual Publish Date: 2013-04-01
Warranty Information
The imageFORMULA DR-Scanner Limited Warranty is effective for 90 days after delivery for parts and labor, excluding consumables.
The Canon imageFORMULA DR-G1130/DR-G1100 Series are desktop scanners designed for high-speed color, black & white, or grayscale document scanning. They feature ultrasonic double feed detection, auto power on/off, and advanced image processing capabilities. The scanners support both simplex and duplex scanning modes with resolutions up to 600 dpi. They are designed for reliable feeding and offer flexible image processing options, making them suitable for various office environments. The included DR Scanner Series Common Driver facilitates user-friendly operation and image processing functions.
Troubleshooting and error codes
| Location/Parts | Every 4,500,000 sheets | Every 6,000,000 sheets | Remarks |
| Reading Unit | Replace / Adjust | Replace / Adjust | Needs adjustments when replacing. |
|---|---|---|---|
| Rollers for document | Replace | Bearings also need replacement at the same time as when the rollers are replaced. | |
| Inside | Clean | Clean | Clean these areas at the same times as the above Periodic Maintenance are performed. |
| Feed Path | Clean | Clean |
| Location/Parts | As Necessary | Other | Remarks |
| Pickup Roller | Clean | Replace | Wipe with a soft cloth that is slightly moistened with after, then wipe dry. Approximate life for rollers: 600,000 sheets. |
|---|---|---|---|
| Feed Roller | |||
| Retard Roller | |||
| Separation Front Cover | Approximate life for separation front cover: 6,000,000 sheets | ||
| Other Rollers | Wipe with a soft cloth that is slightly moistened with after, then wipe dry. | ||
| Reading Glass | Wipe with a dry soft cloth. | ||
| Feed Path | Using a blower, remove dust and paper powder from the pickup area and the feed path including the sensors. |
