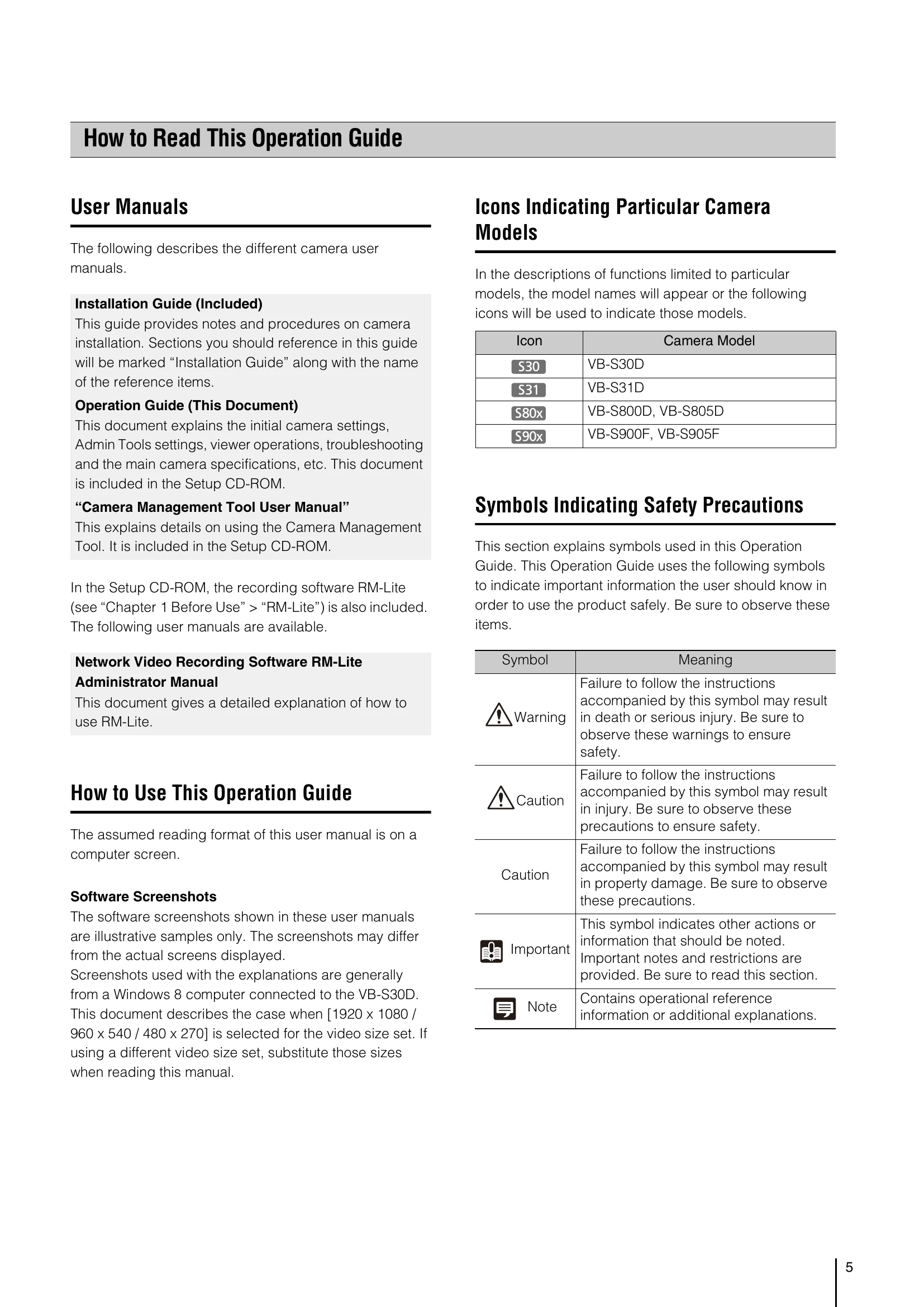

How to Read This Operation Guide
User Manuals
The following describes the different camera user manuals.Installation Guide (Included)
This guide provides notes and procedures on camera installation. Sections you should reference in this guide will be marked "Installation Guide" along with the name of the reference items.Operation Guide (This Document)
This document explains the initial camera settings, Admin Tools settings, viewer operations, troubleshooting and the main camera specifications, etc. This document is included in the Setup CD-ROM."Camera Management Tool User Manual"
This explains details on using the Camera Management Tool. It is included in the Setup CD-ROM. In the Setup CD-ROM, the recording software RM-Lite (see "Chapter 1 Before Use" > "RM-Lite") is also included. The following user manuals are available.Network Video Recording Software RM-Lite Administrator Manual
This document gives a detailed explanation of how to use RM-Lite.How to Use This Operation Guide
The assumed reading format of this user manual is on a computer screen.Software Screenshots
The software screenshots shown in these user manuals are illustrative samples only. The screenshots may differ from the actual screens displayed. Screenshots used with the explanations are generally from a Windows 8 computer connected to the VB-S30D. This document describes the case when [1920 x 1080 / 960 x 540 / 480 x 270] is selected for the video size set. If using a different video size set, substitute those sizes when reading this manual.Icons Indicating Particular Camera Models
In the descriptions of functions limited to particular models, the model names will appear or the following icons will be used to indicate those models.| Icon | Camera Model |
|---|---|
| S30 | VB-S30D |
| S31 | VB-S31D |
| S80x | VB-S800D, VB-S805D |
| S90x | VB-S900F, VB-S905F |
Symbols Indicating Safety Precautions
This section explains symbols used in this Operation Guide. This Operation Guide uses the following symbols to indicate important information the user should know in order to use the product safely. Be sure to observe these items.| Symbol | Meaning |
|---|---|
| Warning | Failure to follow the instructions accompanied by this symbol may result in death or serious injury. Be sure to observe these warnings to ensure safety. |
| Caution | Failure to follow the instructions accompanied by this symbol may result in injury. Be sure to observe these precautions to ensure safety. |
| Caution | Failure to follow the instructions accompanied by this symbol may result in property damage. Be sure to observe these precautions. |
| Important | This symbol indicates other actions or information that should be noted. Important notes and restrictions are provided. Be sure to read this section. |
| Note | Contains operational reference information or additional explanations. |
Troubleshooting and error codes
| Item | Setting |
|---|---|
| • Timer 2 | |
| Timer Event | Disable |
| Start Time | 00:00 |
| End Time | 00:00 |
| Repeat Interval | None |
| Video Record | Disable |
| E-mail Notification | Disable |
| External Device Output | Disable |
| • Timer 3 | |
| Timer Event | Disable |
| Start Time | 00:00 |
| End Time | 00:00 |
| Repeat Interval | None |
| Video Record | Disable |
| E-mail Notification | Disable |
| External Device Output | Disable |
| • Timer 4 | |
| Timer Event | Disable |
| Start Time | 00:00 |
| End Time | 00:00 |
| Repeat Interval | None |
| Video Record | Disable |
| E-mail Notification | Disable |
| External Device Output | Disable |
| • Administrator Password | camera |
| • Authorized User Account | |
| User List | |
| • User Authority | |
| Authorized User | |
| Privileged Camera Control | Checked |
| Camera Control | Checked |
| Video Distribution | Checked |
| Audio Distribution | Checked |
| Guest user | |
| Camera Control | Checked |
| Video Distribution | Checked |
| Audio Distribution | Checked |
| • IPv4 Host Access Restrictions | |
| Apply Host Access Restrictions | Disable |
| Default Policy | Authorize Access |
| Network Address / Subnet | 01:/32 Yes |
| 02:/32 Yes | |
| 03:/32 Yes | |
| 04:/32 Yes | |
| 05:/32 Yes | |
| 06:/32 Yes | |
| 07:/32 Yes | |
| 08:/32 Yes | |
| 09:/32 Yes | |
| 10:/32 Yes | |
| 11:/32 Yes | |
| 12:/32 Yes | |
| 13:/32 Yes | |
| 14:/32 Yes | |
| 15:/32 Yes | |
| 16:/32 Yes | |
| 17:/32 Yes | |
| 18:/32 Yes | |
| 19:/32 Yes | |
| 20:/32 Yes | |
| • IPv6 Host Access Restrictions | |
| Apply Host Access Restrictions | Disable |
| Default Policy | Authorize Access |
| Prefix / Prefix Length | 01:/128 Yes |
| 02:/128 Yes | |
| 03:/128 Yes | |
| 04:/128 Yes | |
| 05:/128 Yes | |
| 06:/128 Yes | |
| 07:/128 Yes | |
| 08:/128 Yes | |
| 09:/128 Yes | |
| 10:/128 Yes | |
| 11:/128 Yes | |
| 12:/128 Yes | |
| 13:/128 Yes | |
| 14:/128 Yes | |
| 15:/128 Yes | |
| 16:/128 Yes | |
| 17:/128 Yes | |
| 18:/128 Yes | |
| 19:/128 Yes |
| Item | Setting |
|---|---|
| • IPsec | |
| IPsec | 20 / 128 Yes |
| • Auto Key Exchange Settings | Auto Key Exchange |
| IPsec SA Encryption Algorithm | AES->3DES |
| IPsec SA Authentication Algorithm | HMAC_SHA1_96 |
| IPsec SA Validity Period (min) | 480 |
| ISAKMP SA Encryption Algorithm | AES->3DES |
| ISAKMP SA Authentication Algorithm | SHA1 |
| DH Group | Group 14->Group 5 ->Group 2 |
| ISAKMP SA Validity Period (min) | 480 |
| • IPsec Set 1 | |
| IPsec Set | Tunnel Mode |
| IPsec Mode | |
| Destination IPv4 Address | |
| Destination IPv6 Address | |
| Source IPv4 Address | |
| Source IPv6 Address | |
| Security Protocol | ESP |
| Security Gateway IPv4 Address | |
| Security Gateway IPv6 Address | |
| Destination Subnet Mask Length | 16 |
| Destination Prefix Length | 16 |
| IKE Pre-Shared Key | |
| SA ESP Encryption Algorithm | AES |
| SA ESP Authentication Algorithm | HMAC_SHA1_96 |
| SA ESP Encryption Key (outbound) | |
| SA ESP Authentication Key (outbound) | |
| SA ESP SPI (outbound) | |
| SA ESP Encryption Key (inbound) | |
| SA ESP Authentication Key (inbound) | |
| SA ESP SPI (inbound) | |
| SA AH Authentication Algorithm | HMAC_SHA1_96 |
| SA AH Authentication Key (outbound) | |
| SA AH SPI (outbound) | |
| SA AH Authentication Key (inbound) | |
| SA AH SPI (inbound) | |
| • IPsec Set 2 | |
| IPsec Set | Tunnel Mode |
| IPsec Mode | |
| Destination IPv4 Address | |
| Destination IPv6 Address | |
| Source IPv4 Address | |
| Source IPv6 Address | |
| Security Protocol | ESP |
| Security Gateway IPv4 Address | |
| Security Gateway IPv6 Address | |
| Destination Subnet Mask Length | 16 |
| Destination Prefix Length | 16 |
| IKE Pre-Shared Key | |
| SA ESP Encryption Algorithm | AES |
| SA ESP Authentication Algorithm | HMAC_SHA1_96 |
| SA ESP Encryption Key (outbound) | |
| SA ESP Authentication Key (outbound) | |
| SA ESP SPI (outbound) | |
| SA ESP Encryption Key (inbound) | |
| SA ESP Authentication Key (inbound) | |
| SA ESP SPI (inbound) | |
| SA AH Authentication Algorithm | HMAC_SHA1_96 |
| SA AH Authentication Key (outbound) | |
| SA AH SPI (outbound) | |
| SA AH Authentication Key (inbound) | |
| SA AH SPI (inbound) | |
| • IPsec Set 3 | |
| IPsec Set | Tunnel Mode |
| IPsec Mode | |
| Destination IPv4 Address | |
| Destination IPv6 Address | |
| Source IPv4 Address | |
| Source IPv6 Address | |
| Security Protocol | ESP |
| Security Gateway IPv4 Address | |
| Security Gateway IPv6 Address | |
| Destination Subnet Mask Length | 16 |
| Destination Prefix Length | 16 |
| IKE Pre-Shared Key | |
| SA ESP Encryption Algorithm | AES |
| SA ESP Authentication Algorithm | HMAC_SHA1_96 |
| SA ESP Encryption Key (outbound) | |
| SA ESP Authentication Key (outbound) | |
| SA ESP SPI (outbound) | |
| SA ESP Encryption Key (inbound) | |
| SA ESP Authentication Key (inbound) | |
| SA ESP SPI (inbound) | |
| SA AH Authentication Algorithm | HMAC_SHA1_96 |
| SA AH Authentication Key (outbound) | |
| SA AH SPI (outbound) | |
| SA AH Authentication Key (inbound) | |
| SA AH SPI (inbound) | |
| • IPsec Set 4 | |
| IPsec Set | Tunnel Mode |
| IPsec Mode | |
| Destination IPv4 Address | |
| Destination IPv6 Address | |
| Source IPv4 Address | |
| Source IPv6 Address | |
| Security Protocol | ESP |
| Security Gateway IPv4 Address | |
| Security Gateway IPv6 Address | |
| Destination Subnet Mask Length | 16 |
| Destination Prefix Length | 16 |
| IKE Pre-Shared Key | |
| SA ESP Encryption Algorithm | AES |
| SA ESP Authentication Algorithm | HMAC_SHA1_96 |
| SA ESP Encryption Key (outbound) | |
| SA ESP Authentication Key (outbound) | |
| SA ESP SPI (outbound) | |
| SA ESP Encryption Key (inbound) | |
| SA ESP Authentication Key (inbound) | |
| SA ESP SPI (inbound) | |
| SA AH Authentication Algorithm | HMAC_SHA1_96 |
| SA AH Authentication Key (outbound) | |
| SA AH SPI (outbound) | |
| SA AH Authentication Key (inbound) | |
| SA AH SPI (inbound) | |
| • IPsec Set 5 | |
| IPsec Set | Tunnel Mode |
| IPsec Mode | |
| Destination IPv4 Address | |
| Destination IPv6 Address | |
| Source IPv4 Address | |
| Source IPv6 Address | |
| Security Protocol | ESP |
| Security Gateway IPv4 Address | |
| Security Gateway IPv6 Address | |
| Destination Subnet Mask Length | 16 |
| Destination Prefix Length | 16 |
| IKE Pre-Shared Key | |
| SA ESP Encryption Algorithm | AES |
| SA ESP Authentication Algorithm | HMAC_SHA1_96 |
| SA ESP Encryption Key (outbound) | |
| SA ESP Authentication Key (outbound) | |
| SA ESP SPI (outbound) | |
| SA ESP Encryption Key (inbound) | |
| SA ESP Authentication Key (inbound) | |
| SA ESP SPI (inbound) | |
| SA AH Authentication Algorithm | HMAC_SHA1_96 |
| SA AH Authentication Key (outbound) | |
| SA AH SPI (outbound) | |
| SA AH Authentication Key (inbound) | |
| SA AH SPI (inbound) | |
| • Certificates | Not Installed |
| Certificate Status | |
| Country (C) | |
| State/Province (ST) | |
| Locality (L) | |
| Organization (O) | |
| Organizational Unit (OU) | |
| Common Name (CN) | |
| Validity Period Start Date | |
| Validity Period End Date | |
| • Encrypted Communications | |
| HTTPS Connection Policy | HTTP |
| • 802.1X Authentication | |
| 802.1X Authentication | Stop |
| Authentication Status | |
| • Authentication Method | |
| Authentication Method | EAP-MD5 |
| User Name | |
| • Memory Card Operations | |
| Operation Settings | Save Logs and Videos |
| Video Format | JPEG |
| Pre-event Buffer (number of frames) | 0 |
| Post-event Buffer (number of frames) | 0 |
| Pre-event Buffer (sec) | 0 |
| Post-event Buffer (sec) | 0 |
| Overwrite videos | Disable |
| • Log Notifications | |
| Use log notifications | Error |
| Notification Level | |
| Mail Server Name | |
| Mail Server Port | 25 |
| Sender (From) | |
| Recipient (To) | None |
| Authentication | |
| User Name | |
| POP Server | |
| Subject |
