Parts/Service for SCOOPIC 16M
Uploaded: Aug. 10, 2025, 12:29 a.m.

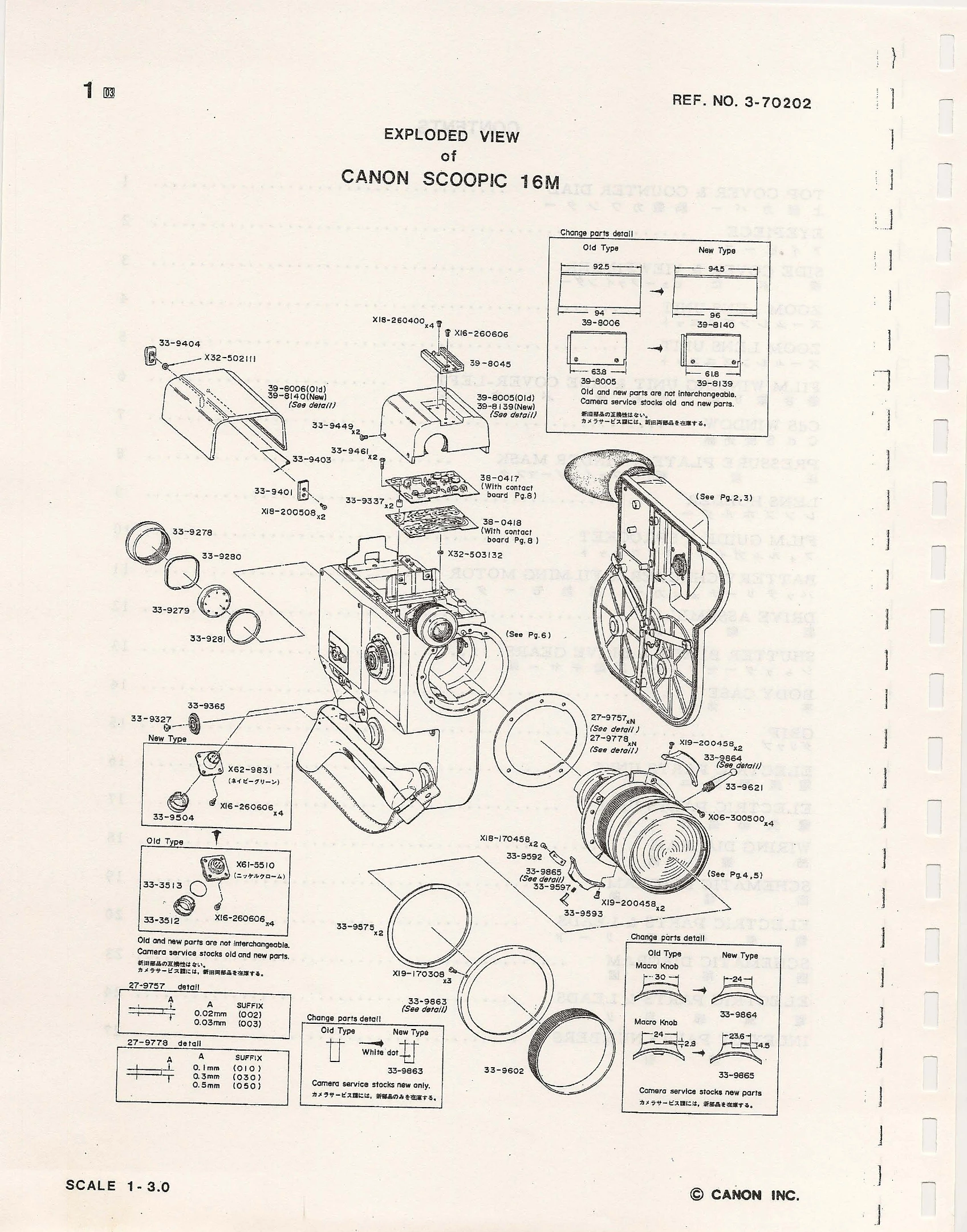

The manual provides a comprehensive overview of the Canon Scoopic 16M camera, detailing its various components through exploded views and parts lists. It serves as a reference for identification, assembly, and repair of the camera's parts. Key sections include the table of contents, exploded views of different camera sections (Top Cover, Side Cover & Viewfinder, Zoom Lens, CDS Window, etc.), parts lists with part numbers and descriptions, schematic diagrams, and an index of parts numbers for easy reference.
Troubleshooting and error codes
| PART NO. | PAGE | PART NO. | PAGE | PART NO. | PAGE | PART NO. | PAGE |
| 33-9400 | 7 | 33-9576 | 5 | 33-9846 | 11 | 39-8044 | 14 |
| 33-9401 | 1 | 33-9577 | 4 | 33-9850 | 7 | 39-8045 | 1 |
| 33-9403 | 1 | 33-9578 | 5 | 33-9857 | 6 | 39-8046 | 3 |
| 33-9404 | 1 | 33-9580 | 5 | 33-9859 | 6 | 39-8047 | 3 |
| 33-9412 | 3 | 33-9581 | 3 | 33-9860 | 7 | 39-8048 | 3 |
| 33-9415 | 3 | 33-9582 | 3 | 33-9861 | 7 | 39-8049 | 2 |
| 33-9416 | 2 | 33-9583 | 3 | 33-9862 | 7 | 39-8050 | 3 |
| 33-9418 | 6, 7 | 33-9584 | 3 | 33-9863 | 1 | 39-8051 | 3 |
| 33-9425 | 2 | 33-9585 | 3 | 33-9864 | 1 | 39-8052 | 6 |
| 33-9426 | 2 | 33-9591 | 4 | 33-9865 | 1 | 39-8053 | 8 |
| 33-9433 | 14 | 33-9592 | 1 | 33-9867 | 15 | 39-8054 | 14 |
| 33-9434 | 14 | 33-9593 | 1 | 33-9868 | 15 | 39-8055 | 10 |
| 33-9435 | 6 | 33-9597 | 1 | 38-0417 | 1,8,16,17 | 39-8105 | 14 |
| 33-9440 | 7 | 33-9598 | 4 | 38-0418 | 1,8,16,17 | 39-8106 | 14 |
| 33-9449 | 1 | 33-9599 | 5 | 38-0419 | 9,20,21,24 | 39-8107 | 8 |
| 33-9452 | 9 | 33-9600 | 5 | 38-0420 | 2 | 39-8108 | 10 |
| 33-9455 | 12 | 33-9601 | 5 | 38-0422 | 4 | 39-8109 | 9 |
| 33-9456 | 12 | 33-9602 | 1 | 38-0425 | 20,24 | 39-8111 | 4 |
| 33-9457 | 12 | 33-9608 | 5 | 38-0427 | 11,20,24 | 39-8112 | 5 |
| 33-9458 | 7 | 33-9610 | 5 | 38-0473 | 8 | 39-8113 | 5 |
| 33-9459 | 3 | 33-9611 | 5 | 38-0474 | 15 | 39-8114 | 4 |
| 33-9461 | 1 | 33-9612 | 5 | 39-0107 | 14 | 39-8115 | 4 |
| 33-9462 | 12 | 33-9615 | 5 | 39-0156 | 4 | 39-8121 | 5 |
| 33-9464 | 14 | 33-9617 | 5 | 39-8002 | 3 | 39-8133 | 15 |
| 33-9474 | 2 | 33-9618 | 5 | 39-8004 | 6 | 39-8134 | 6 |
| 33-9477 | 8 | 33-9620 | 5 | 39-8005 | 1 | 39-8135 | 9 |
| 33-9478-000 | 10 | 33-9621 | 1 | 39-8006 | 1 | 39-8136 | 14 |
| 33-9478-020 | 10 | 33-9626 | 4 | 39-8007 | 13 | 39-8137 | 9 |
| 33-9479 | 6 | 33-9628 | 4 | 39-8014 | 10 | 39-8139 | 1 |
| 33-9480 | 12 | 33-9629 | 4 | 39-8015 | 10 | 39-8140 | 1 |
