Warranty Information

No specific warranty period is mentioned in the provided document sections.

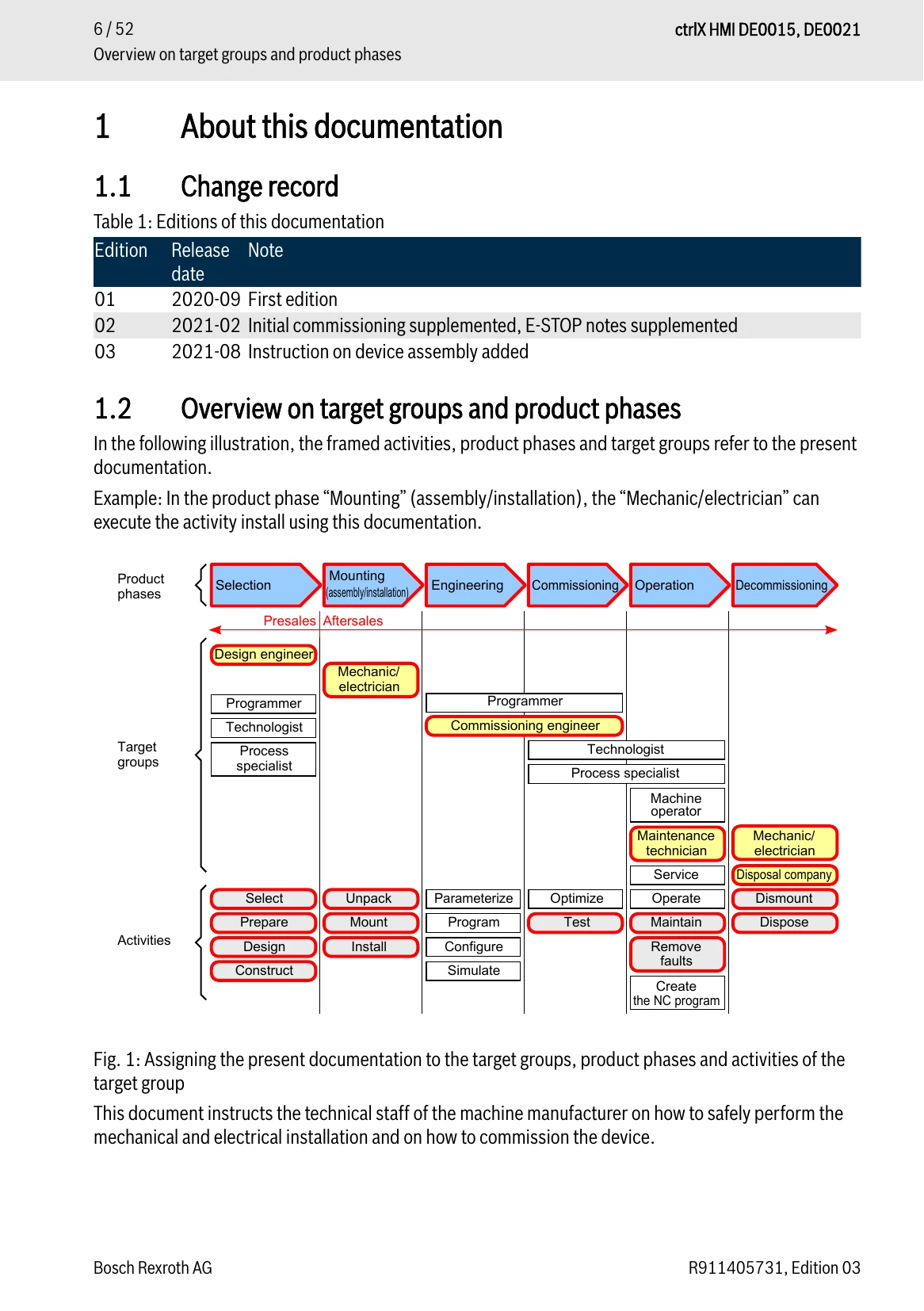

The ctrlX HMI DE0015 and DE0021 are multi-touch displays used as passive operator and visualization terminals, forming PC-based operator terminals when used with a Bosch Rexroth control cabinet PC.

Key operations include:

  • Navigating the 'On Screen' menu for display settings like Brightness, Video Input, and Touch functionality.
  • Using the 'Home' and 'i' keys for menu navigation and selection.
  • Understanding status LED indications for normal operation and errors.
  • Performing basic maintenance tasks like cleaning and checking connections.
  • Mounting and electrical installation following specified procedures and torque values.

The devices are intended for use in industrial environments and applications such as handling systems, packaging machines, machine tools, and more.

Troubleshooting and error codes

Error Correction
No image visible
  • Connect the supply voltage and check the X1S1 connection
  • Connect the display port or CDI+ cables correctly
  • If panels with display port are used, use only Bosch Rexroth display cables to connect the panels, refer to .
Distorted display due to incorrect display resolution
  • Set the correct display resolution in the graphic driver. The standard resolution of the Windows images (also for the recovery sticks) is FullHD (1920 × 1080). Set the correct value once when displays with a smaller resolution are used
  • Restart the control cabinet PC
  • Check the cabling of the graphic interface.
  • Check the selected video interface and correct the setting in “On Screen” menu if required. Setting upon delivery: “RX” (for XCDI+rx).
“NO SIGNAL” on the display (Covered under "No image visible" and "Distorted display due to incorrect display resolution" corrections)
