Brand: beko
Category: Dryer
Document Type: Manual
Language: EN

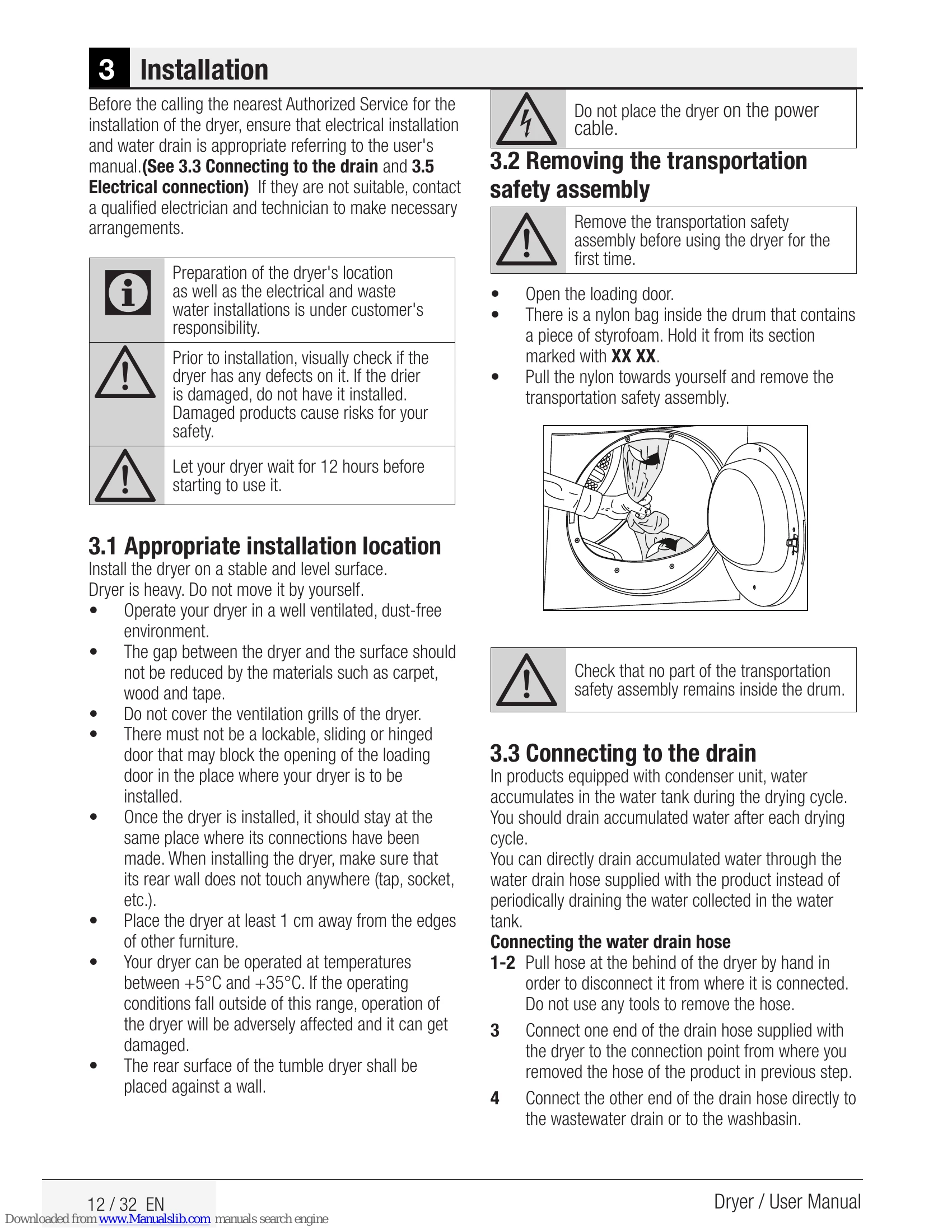

Manual for DPY 8506 GXB1
Uploaded: April 20, 2026, 8:11 p.m.
Manual Publish Date: 2015-01-17
Warranty Information
The service life of the dryer is 10 years, with original spare parts available during this period.
Starting the Dryer: Plug in the machine, place laundry, and press the On/Off/Cancel button. Press Start/Pause to begin. The display will show the programme and remaining time.
Programme Selection: Use the Programme Selection knob to choose the desired programme based on fabric type and drying level.
Key Functions:
- Dryness Level Adjustment: Adjusts the desired dryness.
- Audio Warning Level: Sets the sound level for end-of-cycle notifications.
- Anti-creasing: Prevents wrinkles by rotating laundry after the cycle.
- End Time: Delays the start of the programme.
- Child Lock: Prevents accidental changes by pressing and holding the Child Lock button.
Adding/Removing Laundry: Pause the machine, open the door, add/remove laundry, close the door, and resume.
Canceling: Press and hold Start/Pause to pause, then press and hold On/Off/Cancel to cancel.
End of Programme: Warning symbols for lint filter and water tank cleaning will appear. Press On/Off/Cancel to turn off the dryer.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| Drying process takes too much time. | Lint filter clogged. | Wash the lint filter with warm water. |
| Filter drawer clogged. | Clean the sponge and filter cloth in the filter drawer. | |
| Ventilation grids blocked. | Remove any objects blocking ventilation. | |
| Insufficient ventilation. | Open door and window to improve room ventilation. | |
| Lime deposit on dampness sensor. | Clean the dampness sensor. | |
| Excessive laundry loaded. | Do not overload the dryer. | |
| Laundry not spun sufficiently. | Spin laundry at a higher speed in the washing machine. | |
| Laundry comes out wet at the end of drying. | Selected programme unsuitable for laundry type. | Check care labels, select appropriate programme, or use timer programmes. |
| Lint filter clogged. | Wash the lint filter with warm water. | |
| Filter drawer clogged. | Clean sponge and filter cloth in the filter drawer. | |
| Excessive laundry loaded. | Do not overload the dryer. | |
| Laundry not spun sufficiently. | Spin laundry at a higher speed in the washing machine. | |
| Dryer does not switch on or programme does not start. | Not plugged in. | Ensure the machine is plugged in. |
| Loading door ajar. | Close the loading door securely. | |
| Programme not selected or Start/Pause/Cancel not pressed. | Select programme and ensure not in Pause mode. | |
| Childproof Lock activated. | Deactivate Childproof Lock. | |
| Programme interrupted without cause. | Loading door ajar. | Close the loading door securely. |
| Power failure. | Press Start/Pause/Cancel to restart programme. | |
| Water tank full. | Drain the water tank. | |
| Laundry has shrunk, felted or deteriorated. | Unsuitable programme used. | Check garment tag and select a suitable programme. |
| Drum lighting does not turn on. (On models with lamp) | Dryer not switched on. | Ensure the dryer is switched on. |
| Lamp defective. | Contact Authorized Service Agent. | |
| End/Anti-creasing symbol is on. | Anti-creasing programme activated. | Turn off dryer and remove laundry. |
| End symbol is on. | Programme is over. | Turn off dryer and remove laundry. |
| Lint Filter Cleaning symbol is on. | Lint filter not cleaned. | Clean the lint filter. |
| Lint Filter Cleaning symbol is flashing. | Filter housing clogged. | Clean the lint filter housing. |
| Deposit on lint filter pores. | Wash lint filter with warm water. | |
| Filter drawer clogged. | Clean sponge and filter cloth in filter drawer. | |
| Water leaks from the loading door. | Lint accumulated on inner surfaces/gasket. | Clean inner surfaces and gasket of the loading door. |
| Loading door opens spontaneously. | Loading door ajar. | Push door until it locks. |
| Water Tank warning symbol is on/flashing. | Water tank is full. | Drain the water tank. |
| Water draining hose is bent. | Check hose if directly connected to wastewater drain. | |
| Filter Drawer Cleaning warning symbol is flashing. | Filter drawer not cleaned. | Clean sponge and filter cloth in filter drawer. |
