Quick Start Guide for EG8145V5
Uploaded: Nov. 21, 2025, 7:35 p.m.
Manual Publish Date: 2020-02-26
Warranty Information
No warranty information is available in this document.

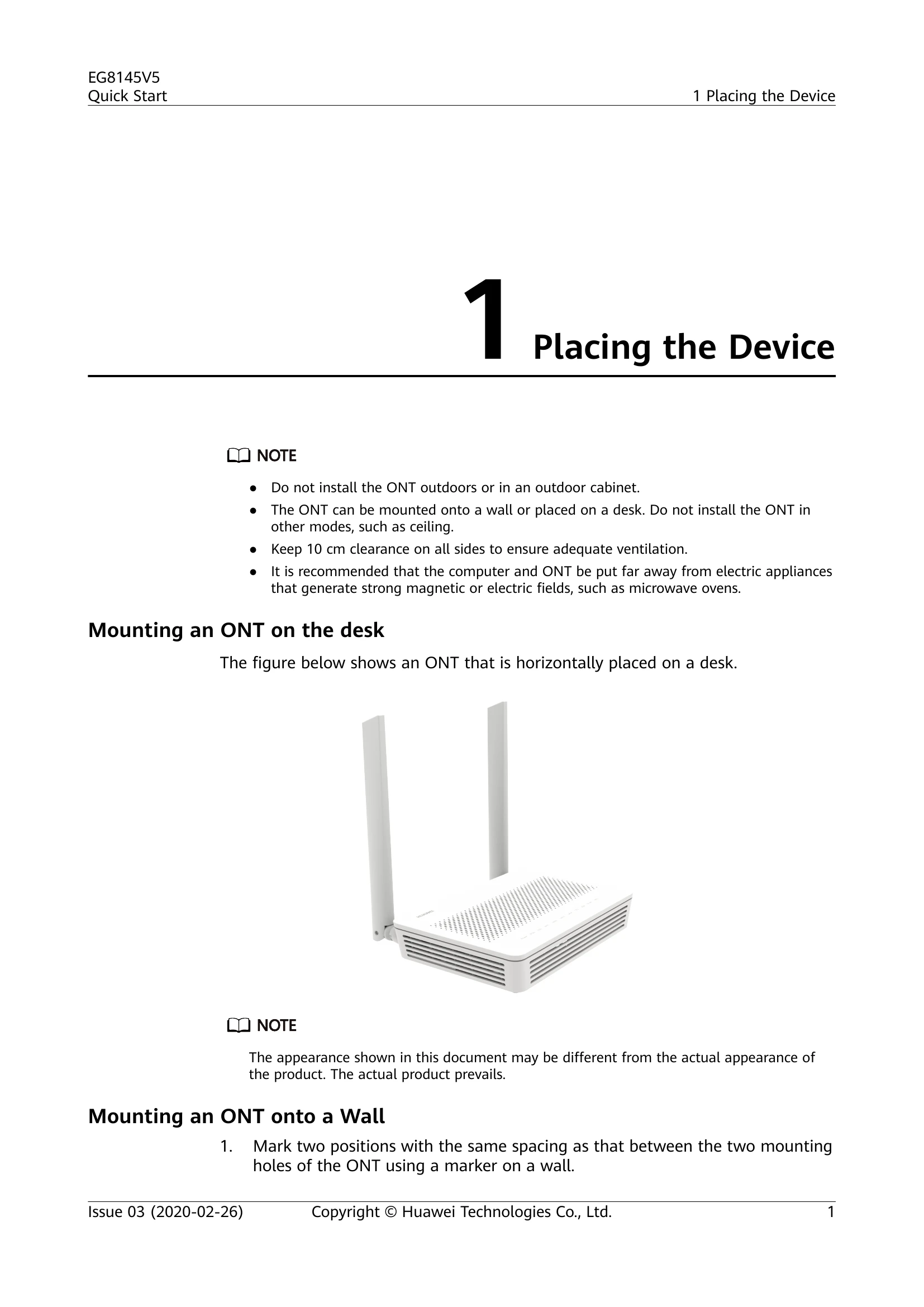

1 Placing the Device
- Do not install the ONT outdoors or in an outdoor cabinet.
- Mount the ONT onto a wall or place it on a desk.
- Keep 10 cm clearance on all sides for ventilation.
- Place the ONT away from strong magnetic or electric field sources.
2 Connecting Cables
- Connect power, USB storage, phone, IP STB, and PC using the provided ports.
- Connect the optical port to the fiber for upstream transmission.
3 Indicator Description
Refer to the table for the meaning of Power, PON/LOS, LAN1-LAN4, TEL, USB, WLAN, and WPS indicators.
4 Technical Specifications
Key specifications include 4 Ethernet ports, 1 POTS port, 1 USB port, and dual-band Wi-Fi.
5 FAQs
- How to log in to the Huawei ONT web page (wireless and wired).
- How to change the Wi-Fi password.
- What to do if you forget the Wi-Fi password.
- Troubleshooting Wi-Fi connection and network speed issues.
- Phone communication issues.
- How to restore to factory settings.
- How to download firmware or software.
Troubleshooting and error codes
| Indicator | Status | Description |
|---|---|---|
| Power | Steady on | The ONT is powered on. |
| Off | The power supply is cut off. | |
| PON/LOS | See the following table. | |
| LAN1-LAN4 | Steady on | The Ethernet connection is in the normal state. |
| Blinking | Data is being transmitted over the Ethernet port. | |
| Off | The Ethernet connection is not set up. | |
| TEL | Steady on | The ONT is registered with the softswitch but no service flows are transmitted. |
| Blinks twice a second | The ONT is registered with the softswitch, and data is being transmitted on the port. | |
| Blinks once every 2 seconds | The ONT fails to be registered with the softswitch. | |
| Off | The POTS port is disabled. | |
| USB | Steady on | The USB port is connected and working in the host mode, but no data is transmitted. |
| Blinking | Data is being transmitted on the USB port. | |
| Off | The system is not powered on or the USB port is not connected. | |
| WLAN | Steady on | The WLAN function is enabled. |
| Blinking | Data is being transmitted over the WLAN port. | |
| Status No. | PON Status | LOS Status | Description |
|---|---|---|---|
| 1 | Off | Off | The ONT is prohibited by the upper-layer device or blinks abnormally. Contact the service provider for help. |
| 2 | Blinks twice a second | Blinks twice a second | The ONT attempts to set up a connection with its upper-layer device. |
| 3 | Blinks twice a second | Off | A connection is set up between the ONT and its upper-layer device. |
| 4 | Steady on | Off | The ONT is not connected to fibers or does not receive optical signals. |
| 5 | Off | Blinks once every 2 seconds | The hardware is faulty. |
| 6 | Blinks once every 2 seconds | Blinks once every 2 seconds |
