Manual for AUTOMATIC 66

Quick Start Guide

Important until the first shot!

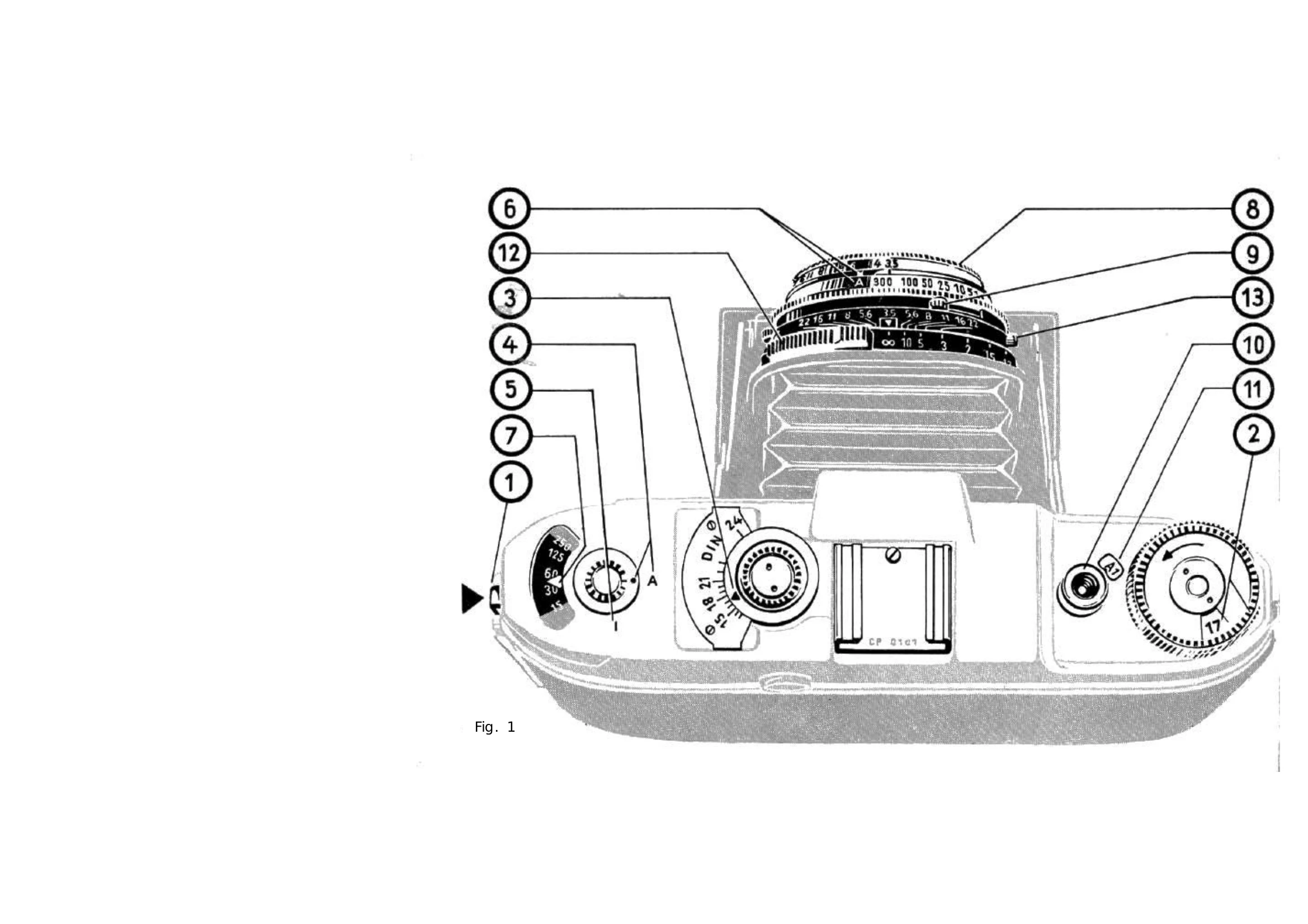

1. Film insertion.
2. Set the type of film on the film indicator (2).
3. Set automation (4), set green point next to green A.
4. Set the ASA scale (3), set the black triangle to the desired sensitivity of the film.
5. Set the locking ring (6) to the shortest possible exposure time, the green point next to the green A.

Important for each subsequent shot!

1. Aim at the object, note the scale (7) of the exposure meter, if necessary adjust the diaphragm (8).
2. Set the focus distance using the range-finder, move the focusing lever (12) until the central range-finding image coincides with the viewfinder image.
3. Tension the shutter winding lever (9) and push the release button (10).
4. Turn the film transport knob (20) as far as it will go, the next film frame number will then appear in the frame counter window (11).
