Brand: AEG
Category: Power Tools
Document Type: Manual
Language: EN
Manual for BSB18C2
Uploaded: April 20, 2026, 7:51 p.m.
- Inserting/Removing Battery Pack: Ensure the machine is off. Slide the battery pack into the port until it clicks. To remove, press the release button and slide the pack out.
- Installing/Removing Accessories: Open the chuck by rotating the sleeve. Insert the drill bit or screwdriver bit and tighten the chuck. To remove, loosen the chuck.

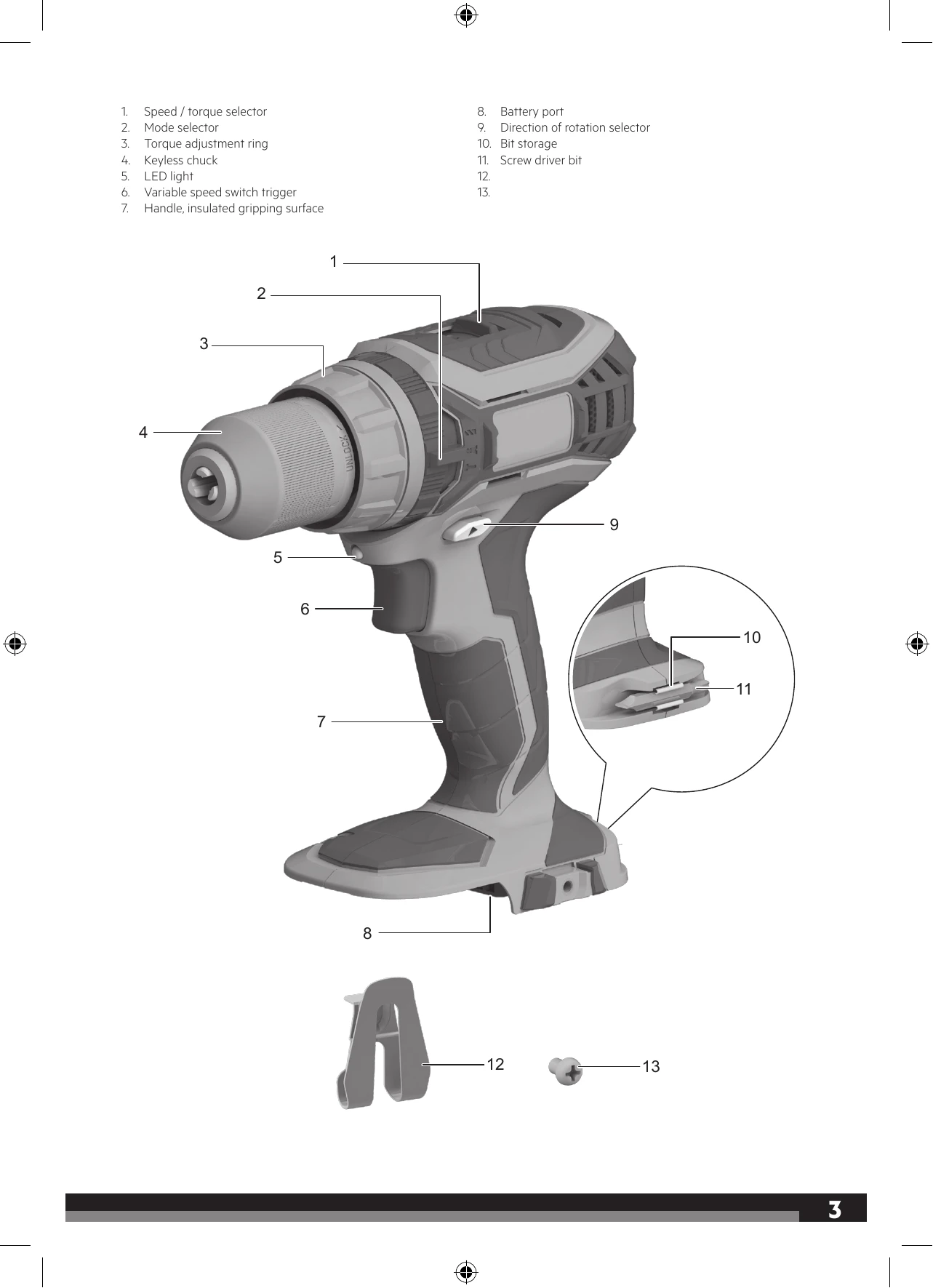

- Selecting Speed/Torque: Use the speed/torque selector (1) to choose the desired setting. Higher numbers generally indicate higher torque.
- Selecting Mode: Use the mode selector (2) to choose between drill mode, hammer drill mode, or screwdriver mode.
- Changing Rotation Direction: Use the direction of rotation selector (9) to choose between forward (START), reverse (STOP), or locked position.
- LED Light: The LED light (5) illuminates the work area when the trigger is pressed.
- Variable Speed Trigger: The variable speed switch trigger (6) allows for controlled speed based on how hard it is pressed.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
| The machine does not start up. | The battery pack is empty. | Recharge the battery pack. |
| The battery pack is not inserted correctly. | Insert the battery pack correctly until it clicks. | |
| The battery pack is damaged. | Replace the battery pack. | |
| The machine stops automatically. | Overload protection has been activated. | Switch the machine off and then on again. If the machine does not start up again, the battery pack may have discharged completely. Recharge the battery pack. |
| The accessory stalls during operation. | The accessory is tilted in the workpiece. | Ensure the accessory is correctly positioned. |
| The accessory has pierced through the material. | Adjust the depth of drilling or screwing. | |
| The power tool is overloaded. | Reduce the pressure or use a smaller accessory. | |
| The accessory is dull or damaged. | Replace the accessory. | |
| Excessive vibration. | The accessory is not properly installed. | Ensure the accessory is securely fastened in the chuck. |
| The accessory is damaged or unbalanced. | Replace the accessory. | |
| The workpiece is not securely clamped. | Clamp the workpiece securely. | |
| Improper technique or posture. | Refer to the "Risk Reduction" section for proper handling. |
