Warranty Information
Warranty void if damage occurs due to not following instructions; AEG PS reserves the right to cancel.

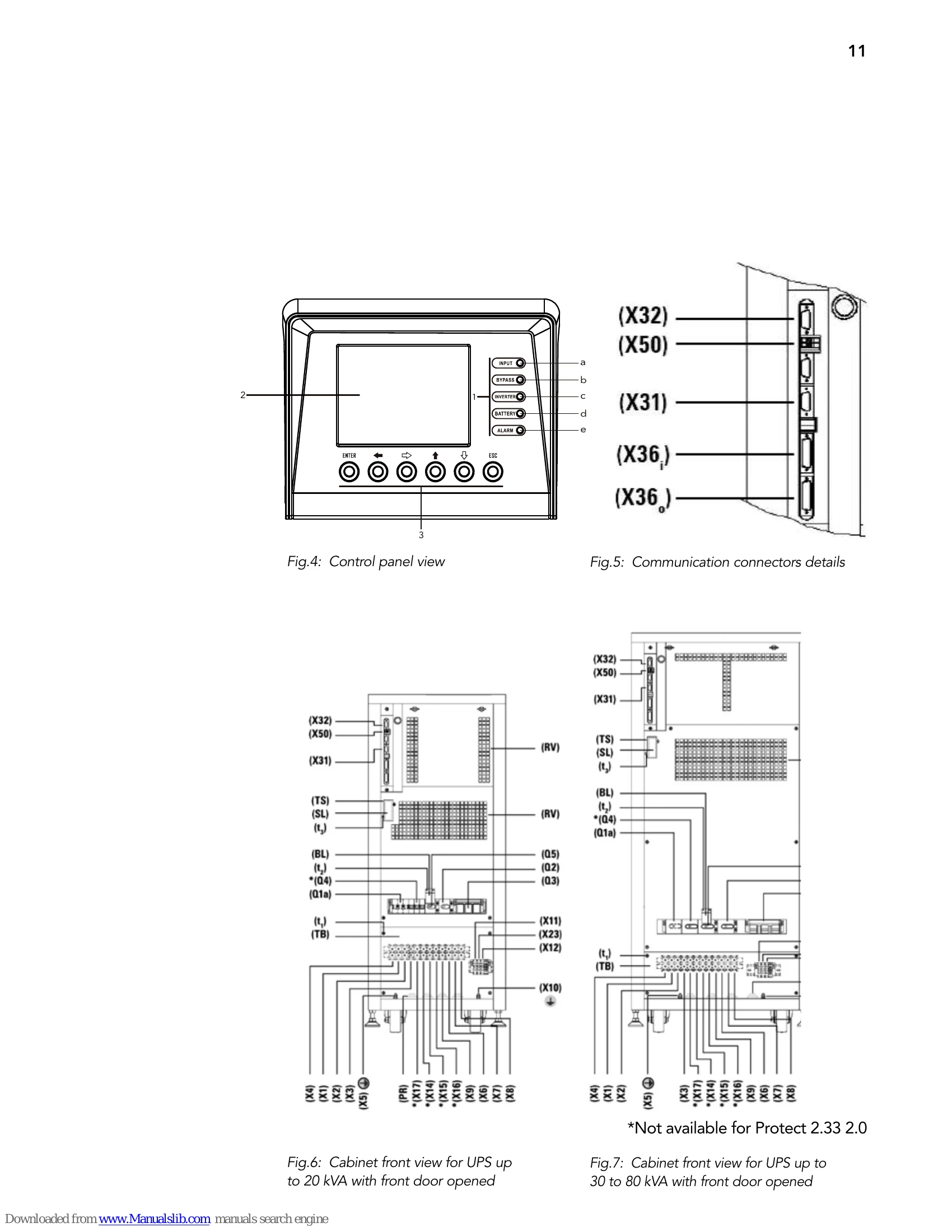

- Normal operation: Rectifier converts AC to DC, charging batteries and supplying the inverter. Inverter transforms DC to AC for output.
- Mains failure: Batteries supply power to the inverter. Backup time depends on battery capacity.
- Inverter not active: Inverter is inactive due to alarms (overloads, overheating, etc.) or if the unit is not started with the keyboard. Rectifier continues charging batteries.
- Manual bypass: Allows maintenance without interrupting power to loads.
- Parallel operation: Two identical UPS can be paralleled for redundancy or to double load capacity. Operates on a MASTER-SLAVE principle.
Troubleshooting and error codes
| Alarm 74: | |
| N+M Configuration | Load exceeds maximum permissible load by N equipment. Loss of redundancy if load > 40 kVA. Inverter overload alarm if load > 60 kVA. |
| Alarm 75: | |
| Input Contactor Fault | Input contactor does not close properly, failing to maintain DC bus voltage. |
| Alarm 76: | |
| Parallel System Communication Error | Second communication error/break detected by slave equipment after initial error, resulting in permanent block of rectifier and inverter. |
| Alarm 77: | |
| Configuration Memory Error | Error in configuration memory. |
