Manual for WSP 2010

1. Operating Instructions

1.1 Technical Description

Storage heaters store electrically generated heat during low-cost electricity tariff periods (depending on the electricity supply company, mainly during the night hours). This is then discharged according to the desired room temperature as hot air by a fan and to a small extent through the surface of the heater.

1.2 Operation

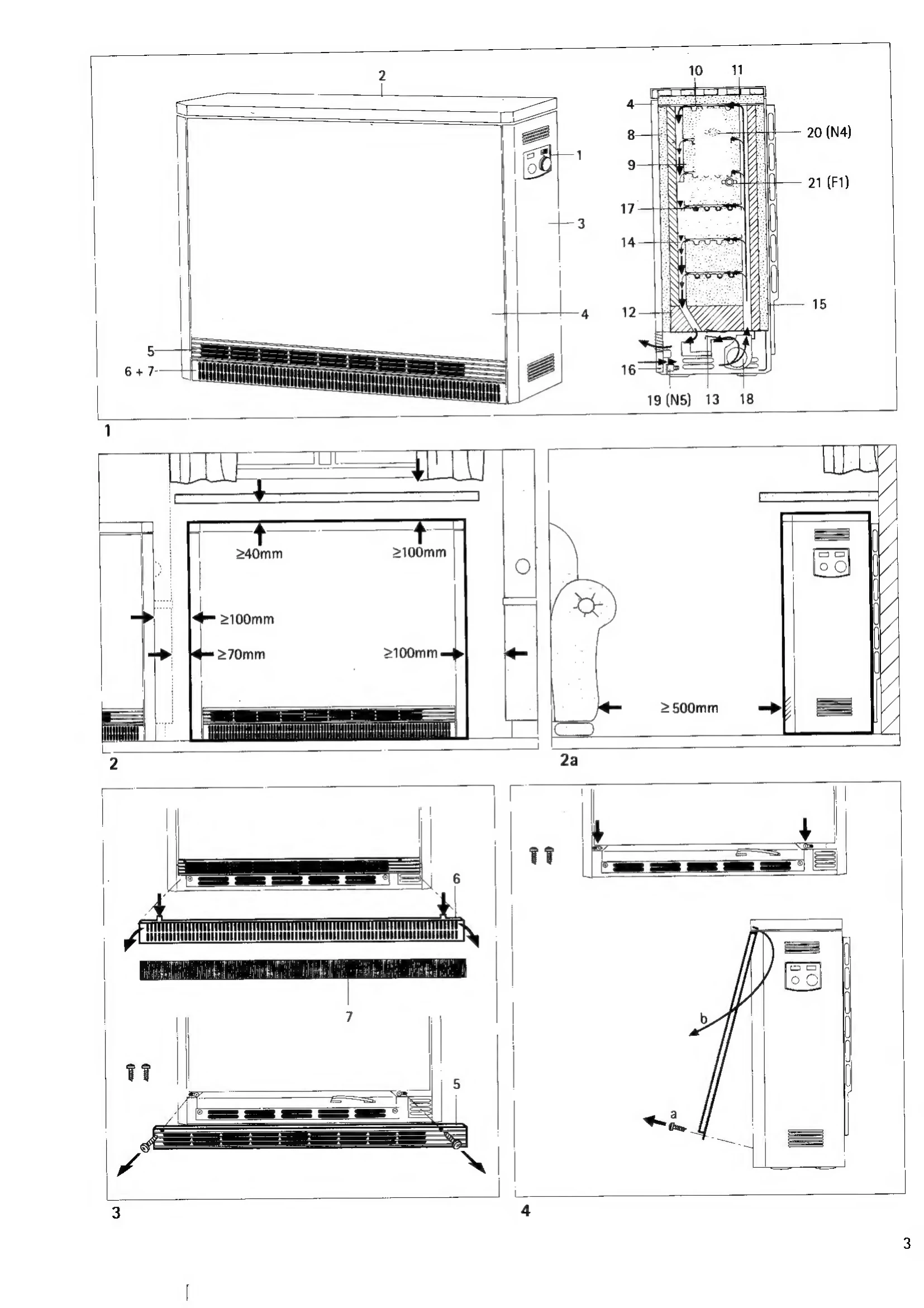

The unit is operated by the control panel (1) on the right side wall (fig. 1).

1.2.1 Heat Storage

The degree of heat storage (charging) is determined by the selector knob (fig. 17). - No charging: Setting is "". - Transitional period (Spring/Autumn): Setting is "1", corresponds to about 1/3 full charge. - Mild Winter days: Setting is "2", corresponds to about 2/3 full charge. - Winter days: Setting is "3", corresponds to full charge.

1.2.2 Heat Discharge

The heat discharge is controlled by a wall-mounted or integrated AEG room temperature regulator (special accessory). Set the desired room temperature at the regulator, which will then automatically control the heat discharge with the fan to maintain the set temperature. On very cold days, it's advisable to leave the room temperature regulator on during absences to keep the temperature around 10 °C for frost protection.
