Warranty Information

Refer to the Declaration of Conformity for compliance details. No specific warranty period is listed in this section.

Basic Operation Summary

This manual covers the setup and operation of your Acer S202HL LCD Monitor. Key operations include:

  • Unpacking: Verify all items are present (Monitor, AC adapter, cables, manuals).

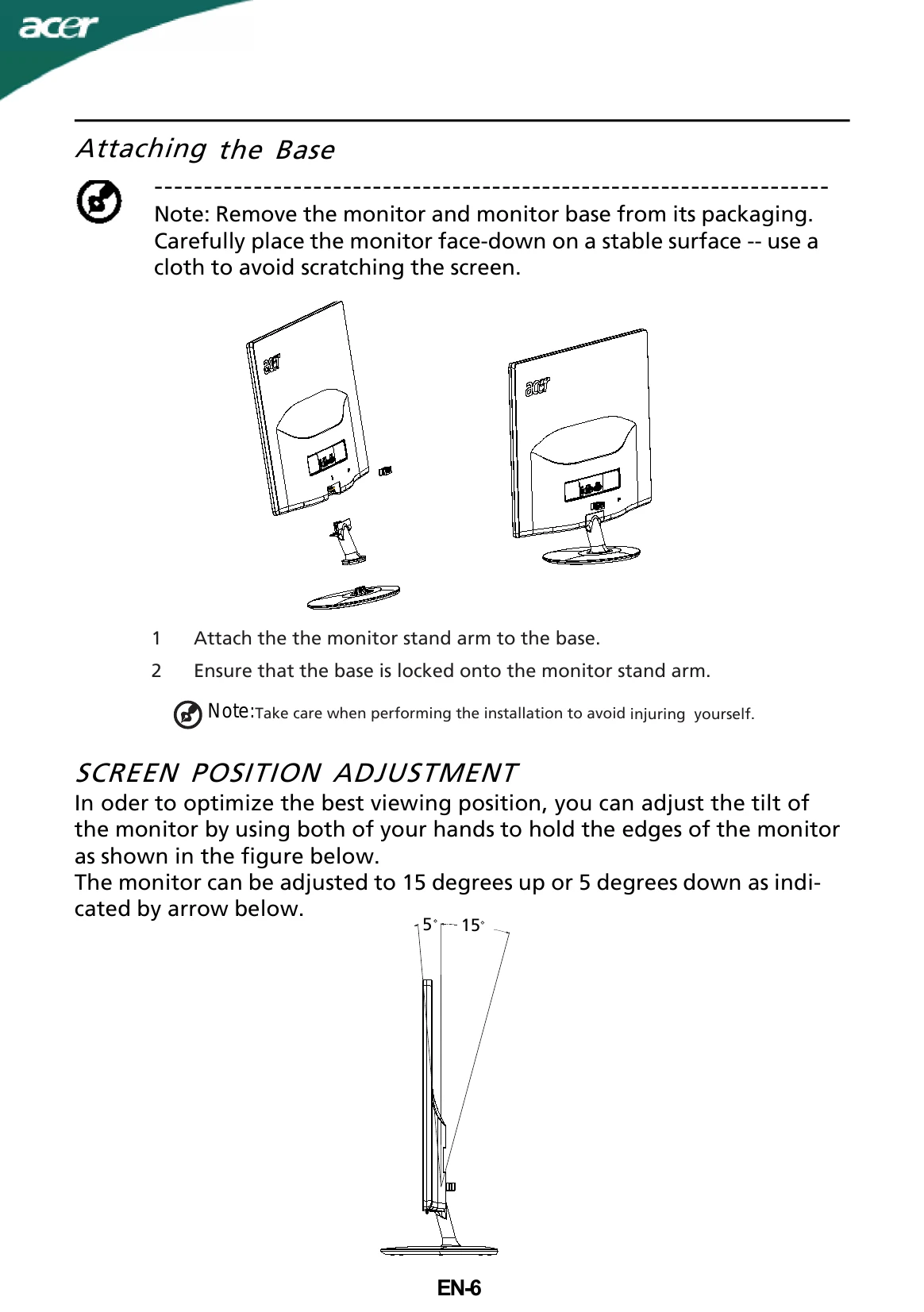

  • Attaching the Base: Connect the stand arm to the base securely.
  • Connecting: Connect the power cord and video cable (VGA or DVI) to your computer.
  • Powering On: Turn on the monitor first, then the computer.
  • Adjustments: Use the shortcut menu or OSD (On-Screen Display) to adjust picture quality, OSD position, and settings like brightness, contrast, and input source.
  • Power Saving: The monitor enters power-saving mode indicated by an amber LED.

Refer to the troubleshooting section for common issues.

Troubleshooting and error codes

Problems Current Status Remedy
No Picture LED ON Using OSD, adjust brightness and contrast to maximum or reset to their default settings.
LED OFF Check the power switch.
LED displays amber color Check if AC power cord is properly connected to the monitor.
No Picture (DVI Mode) LED ON Using OSD, adjust brightness and contrast to maximum or reset to their default settings.
LED OFF Check the power switch.
LED displays amber color Check if AC power cord is properly connected to the monitor.
Abnormal Picture (VGA Mode) Unstable Picture Check if video signal cable is properly connected at the back of monitor.
Check if the power of computer system is ON.
Check if the specification of graphics adapter and monitor is in compliance which may be causing the input signal frequency mismatch.
Display is missing, center shift, or too small or too large in display size
Using OSD, in case of missing full-screen image, please select other resolution or other vertical refresh timing.
Wait for a few seconds after adjusting the size of the image before changing or disconnecting the signal cable or powering OFF the monitor.
