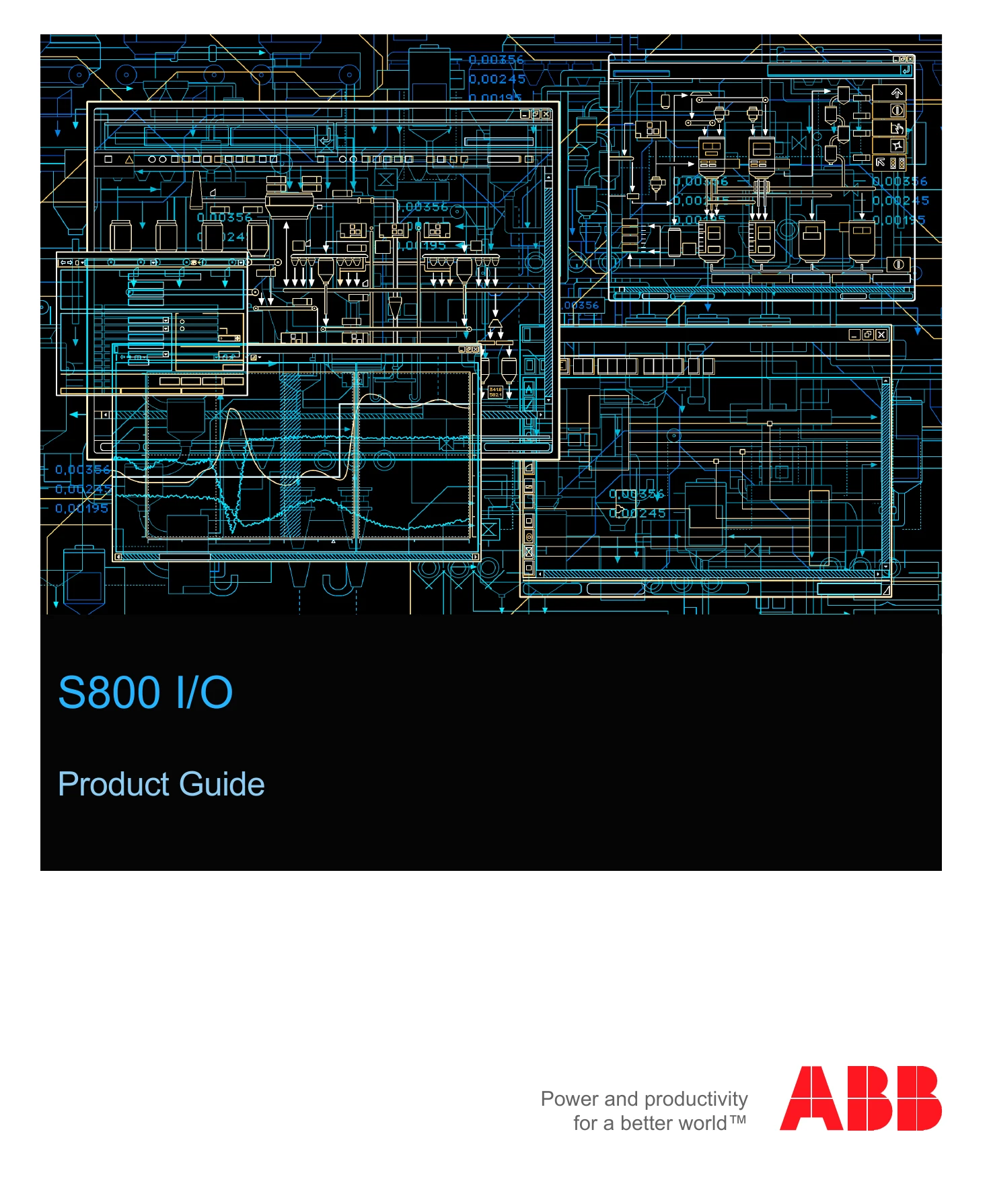

Manual for S800 I/O
Uploaded: April 20, 2026, 7:49 p.m.
Manual Publish Date: 2015-10-01
- The S800 I/O system is a distributed, highly modularized and flexible I/O-system.
- It provides easy installation of I/O modules, process cabling and connection to drives systems.
- Modules and termination units can be mounted and combined in various configurations.
- Key benefits include flexibility, modularity, cost-effectiveness, reliability, auto-diagnostics, reduced downtime, and ease of configuration.
- The system supports PROFIBUS-DP/DPV1 or Advant Fieldbus 100 communication.
- Features include quick fault-finding with LEDs, extensive I/O modules, intrinsic safety interfaces, DIN-rail mounting, dual redundancy support, and hot-swappable modules.
Troubleshooting and error codes
| Problem | Possible Cause | Remedy |
|---|---|---|
| Module does not start up | Module failure. | Replace the module. |
| Incorrect configuration | Incorrect configuration. | Check the configuration. |
| Communication error | Communication line failure or incorrect bus connection. | Check the communication line and bus connection. |
