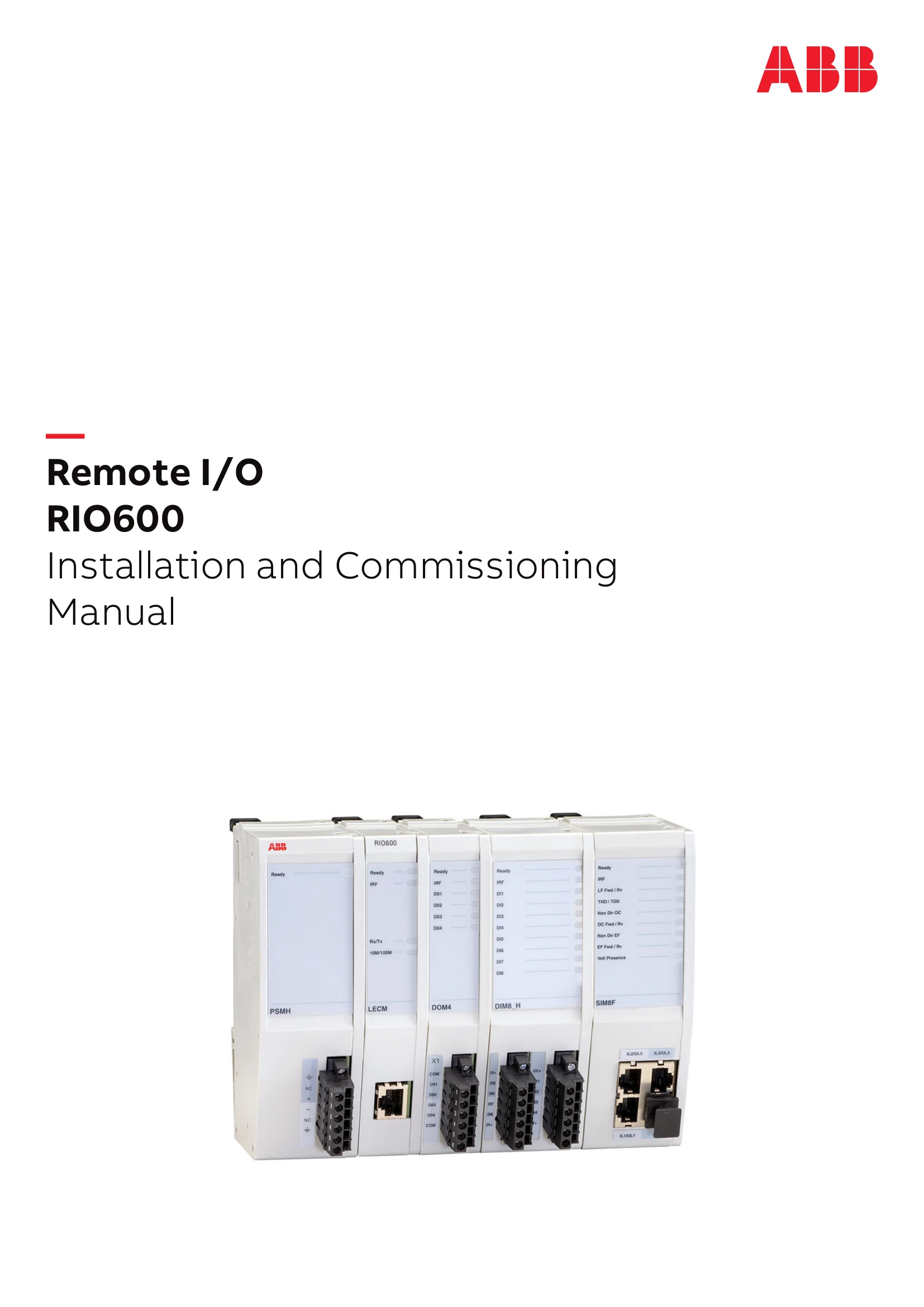

Installation Guide for RIO600
Uploaded: April 20, 2026, 7:58 p.m.
Manual Publish Date: 2019-12-16
Warranty Information
Please inquire about the terms of warranty from your nearest ABB representative.
Manual Contents Overview
This manual provides comprehensive information on the installation and commissioning of the RIO600 Remote I/O device. It includes:
- Introduction: Details about the manual's purpose, intended audience, and product documentation.
- Security Guidelines: Information on general security and system hardening rules.
- RIO600 Overview: Description of the device, its features, and its role in substation automation.
- Unpacking and Storing: Instructions for handling and storing the product.
- Installation: Step-by-step guide for mounting modules, connecting wires, power supply, and Ethernet.
- Commissioning: Procedures for parameter setting, configuration, and communication setup.
- Using the Web HMI: Guidance on accessing and navigating the device's web interface.
- Troubleshooting: Assistance with common issues, LED indications, and restoring configurations.
- Technical Data: Specifications and details of the device's performance and capabilities.
- Device and Functionality Tests: Information on various tests conducted on the device.
- Glossary: Definitions of terms and acronyms used in the manual.
Troubleshooting and error codes
| Description | Reference | Result |
| Markings and mechanical structure | IEC 60255-1 and IEC 60255-27 | OK |
| Enclosure class of the flush-mounted device | IEC 60529 | IP 20 |
| Clearances and creepage distances | IEC 60255-27 | OK |
| Description | Reference | Result |
| Thermal withstand capability test | IEC 60255-1 and IEC 60255-27 | OK |
| Test | Type test value | Reference |
| Operating range of auxiliary supply voltage test | 80% and 120% of rated value for DC 85% and 110% of rated value for AC, frequency is between 50 Hz for -5% and 60 Hz for +5% |
IEC 60255-1 and IEEE C37.90-2005 |
| Power consumption of auxiliary supply | Quiescent load Maximum load |
IEC 60255-1 and IEEE C37.90-2005 |
| <4 W <12 W |
||
| Reversal of DC power supply polarity | 1 min for each polarity | IEC60255-27 |
| Start-up time test | <30 s |
