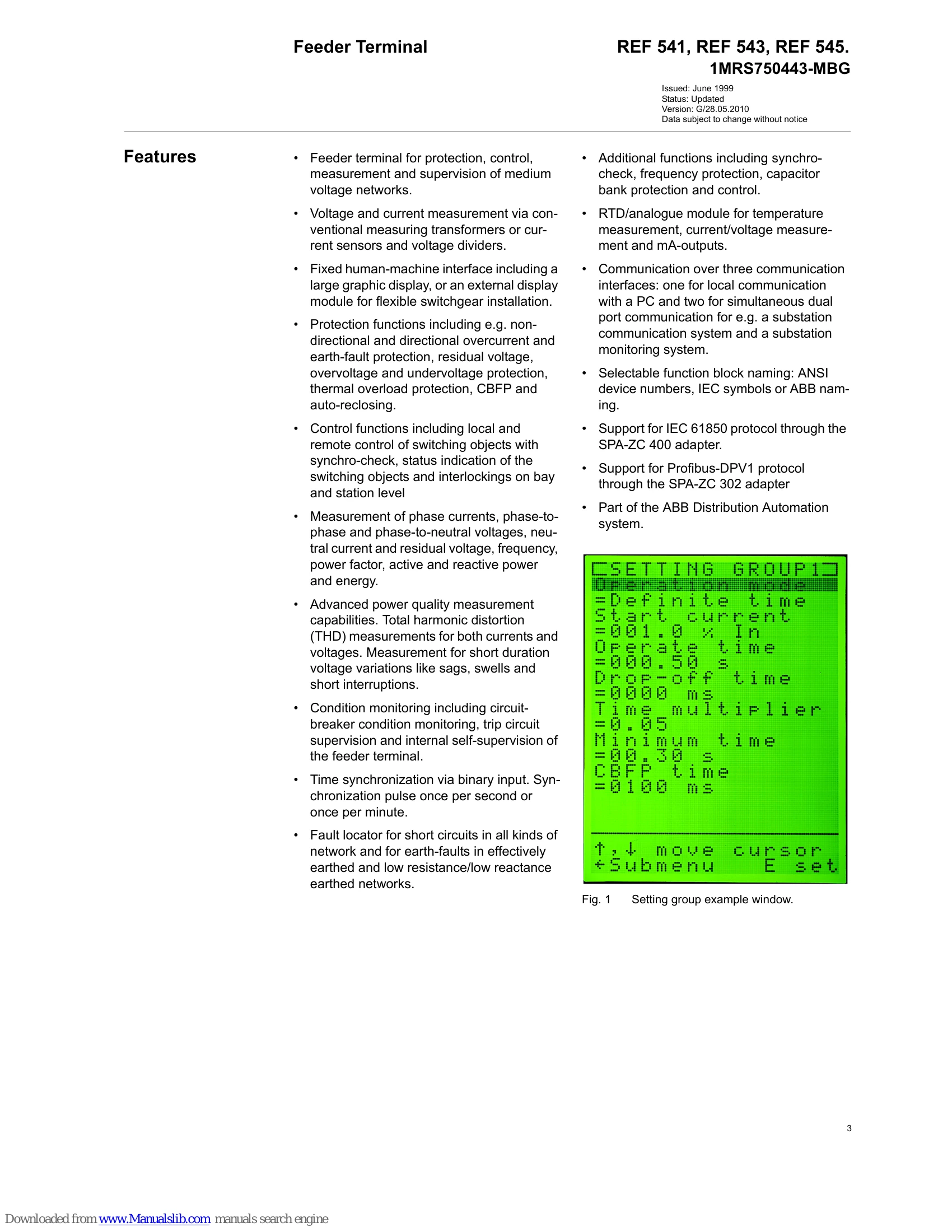

Manual for REF 541, REF 543, REF 545

Feeder Terminal Operation

The REF 54 series feeder terminals are designed for protection, control, measurement, and supervision of medium voltage networks. They offer a wide range of functions including:

• Protection: Overcurrent, earth-fault, overvoltage, undervoltage, thermal overload, and auto-reclosing functions.
• Control: Local and remote control of switching objects with synchro-check and interlocking.
• Measurement: Phase currents, voltages, frequency, power factor, active/reactive power, and energy. Advanced power quality measurement capabilities including THD, sags, swells, and short interruptions.
• Condition Monitoring: Circuit-breaker condition monitoring, trip circuit supervision, and internal self-supervision.
• Fault Location: Assists in identifying short circuits for faster power restoration.
• Communication: Multiple communication interfaces for integration into substation automation systems (IEC 60870-5-103, IEC 61850, Profibus-DPV1, DNP 3.0, Modbus, LON).
• HMI: Fixed or external graphic display for detailed information and control.
