Installation Guide for GOE(2)

Safety

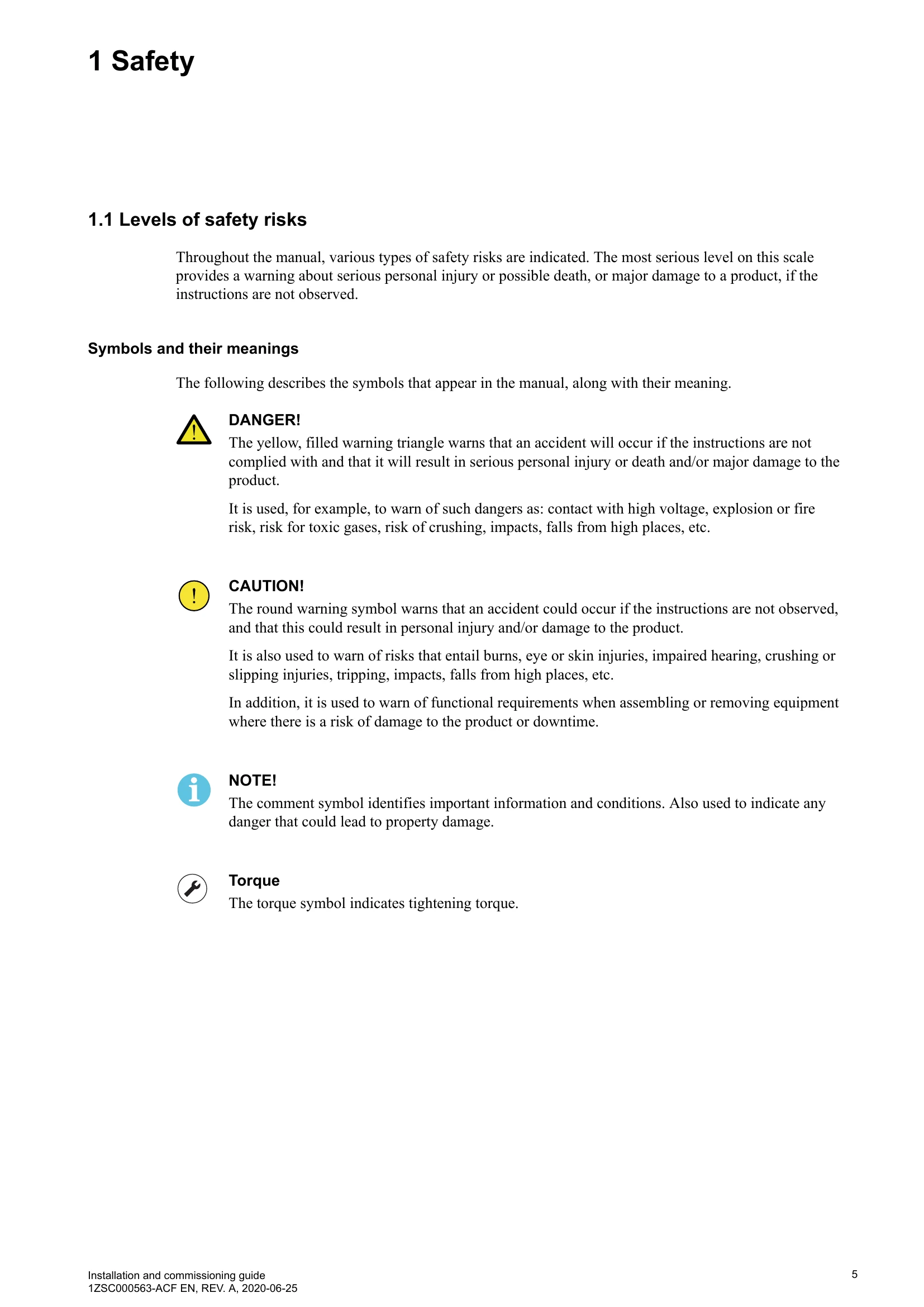

1.1 Levels of safety risks: The manual outlines safety risks from minor to severe, emphasizing serious personal injury, death, or major product damage.

1.2 Hazardous working situations: Details precautions for working near high voltage, on ladders/platforms, and with heavy objects.

1.3 Safety precautions: Provides guidance on handling transformer oil, waste disposal, and fire extinguishing.

1.4 Competence level: Stresses that installation must be performed by authorized personnel.

Product Description

2.1 Design: Introduces the GOE(2) as a capacitance graded, oil-impregnated paper bushing. Includes schematics and component lists.

2.2 Technical Specification: Details general specifications (application, classification, ambient limits, etc.) and mechanical loading limits.

Delivery

3.1 Incoming inspection: Emphasizes checking for shipping damage.

3.2 Transportation: Specifies transport in the original box and in a horizontal position.

3.3 Storage: Provides guidelines for short-term and long-term storage, emphasizing protection from elements and damage.

3.4 Lifting: Details procedures for lifting the transport box and the bushing itself.

Installation

4.1 Tools: Lists required tools with part numbers.

4.2 Consumables: Lists required consumables with brands and part numbers.

4.3 Preparations: Includes steps for installing lifting tools and preparing for installation on the transformer.

4.4 Installation with draw lead: Describes the process of installing the bushing using a draw lead.
