Manual for RETA-01
Uploaded: April 20, 2026, 8:06 p.m.
Manual Publish Date: 2006-08-08
Warranty Information
Manufacturer warrants equipment for 12 months after installation or 24 months from manufacturing, whichever is earlier.

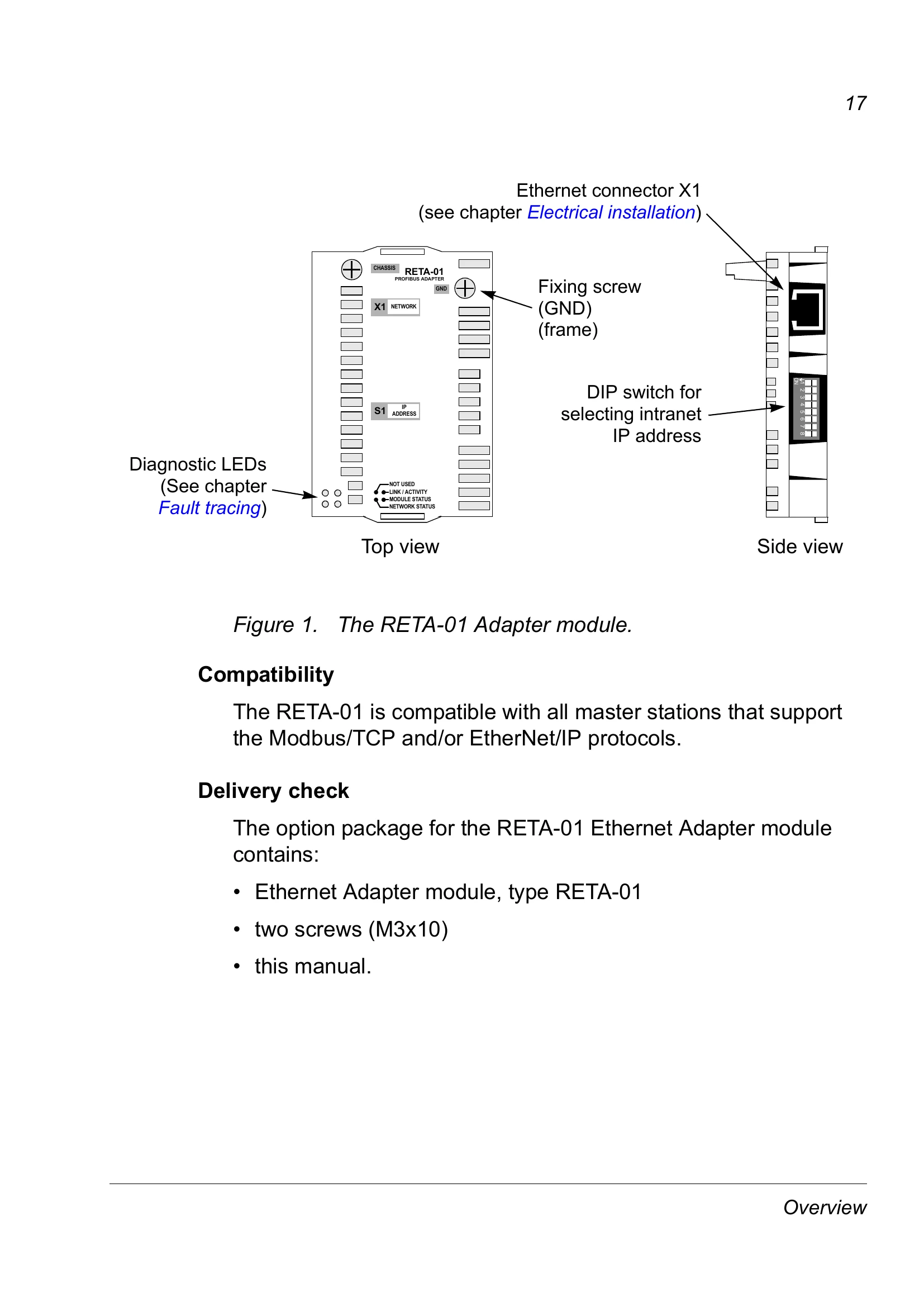

The RETA-01 Ethernet Adapter module allows ABB drives to connect to an Ethernet network, supporting Modbus/TCP and EtherNet/IP protocols. It enables control commands, reference feeding, status reading, parameter changes, and fault resets. Installation involves inserting the module into a drive slot, connecting an Ethernet cable, and configuring network settings like IP address. Communication is established through defined protocols and profiles.
Troubleshooting and error codes
| Name | Colour | Function |
|---|---|---|
| Link/Activity | Green | Flashing green - Module is receiving/transmitting on Ethernet Steady green - Module has detected link Off - Module cannot detect link |
| Network Status | Red/ Green |
Flashing red - EtherNet/IP: One or more connections timed out; Modbus/TCP: No message has been received within configured time Steady red - Duplicate IP address Flashing green - Waiting for connections Steady green - EtherNet/IP: At least one EtherNet/IP connection is open against the module (even to the Message router); Modbus/ TCP: At least one Modbus/TCP connection is open against the module |
| Module Status | Red/ Green |
Flashing red - Minor fault (e.g. communication with application lost but recoverable) Steady red - Major fault (e.g. bad flash, failed memory test, non-recoverable communication problem with host) Steady green - Normal operation |
