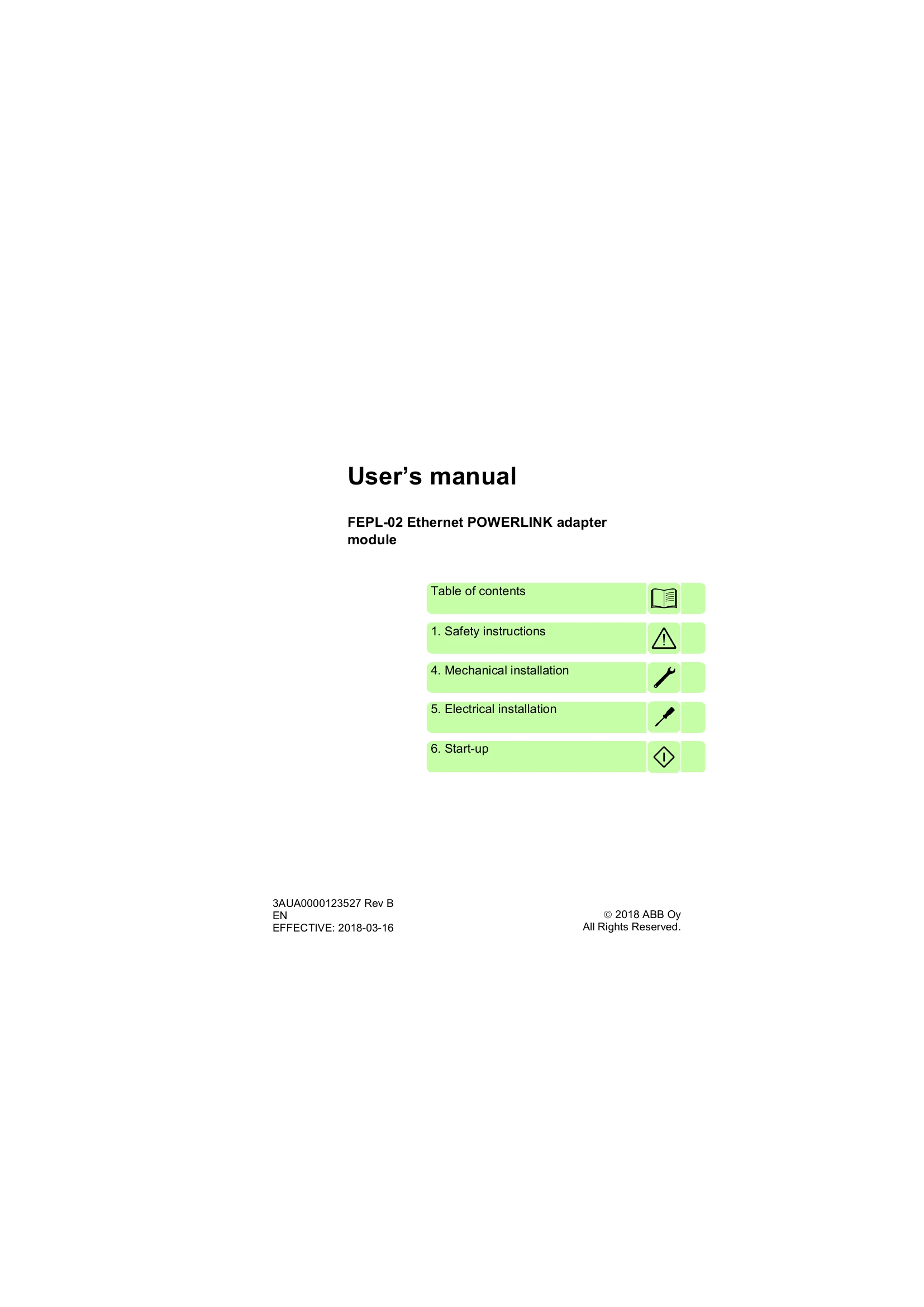

This manual provides information on installing, commissioning, and using the FEPL-02 Ethernet POWERLINK adapter module. It covers safety instructions, overview of the Ethernet POWERLINK network, mechanical and electrical installation, start-up procedures with drive configuration examples for ACS355, ACSM1, ACS850, and ACS380/ACS580/ACS880 drives. It also details communication profiles, protocols, diagnostics, technical data, and appendices on CANopen Object Dictionary, error codes, and IdentResponse Frame.

Troubleshooting and error codes

Error code (hex) Meaning
3310 Output overvoltage
3311 Output overvoltage phase U
3312 Output overvoltage phase V
3313 Output overvoltage phase W
3320 Armature circuit
3321 Armature circuit interrupted
3330 Field circuit
3331 Field circuit interrupted
4000 Temperature
4100 Ambient temperature
4110 Excess ambient temperature
4120 Too low ambient temperature
4130 Temperature supply air
4140 Temperature air outlet
4200 Temperature device
4210 Excess temperature device
4220 Too low temperature device
4300 Temperature drive
4310 Excess temperature drive
4320 Too low temperature drive
4400 Temperature supply
4410 Excess temperature supply
4420 Too low temperature supply
5000 Device hardware
5100 Supply
5110 Supply low voltage
5111 U1 = supply +/-15 V
5112 U2 = supply +24 V
5113 U3 = supply +5 V
5114 U4 = manufacturer specific
5115 U5 = manufacturer specific
5116 U6 = manufacturer specific
5117 U7 = manufacturer specific
5118 U8 = manufacturer specific
5119 U9 = manufacturer specific
5120 Supply intermediate circuit
5200 Control
5210 Measurement circuit
5220 Computing circuit
5300 Operating unit
5400 Power section
5410 Output stages
5420 Chopper
5430 Input stages
5440 Contactors
5441 Contactor 1 = manufacturer specific
5442 Contactor 2 = manufacturer specific
5443 Contactor 3 = manufacturer specific
5444 Contactor 4 = manufacturer specific
5445 Contactor 5 = manufacturer specific
5450 Fuses
5451 S1 = L1
5452 S2 = L2
5453 S3 = L3
5454 S4 = manufacturer specific
5455 S5 = manufacturer specific
5456 S6 = manufacturer specific
5457 S7 = manufacturer specific
5458 S8 = manufacturer specific
5459 S9 = manufacturer specific
5500 Data storage
5510 Working memory
5520 Program memory
5530 Non-volatile data memory
6000 Device software
6010 Software reset (Watchdog)
6100 Internal software
6200 User software
6300 Data record
6301 Data record No. 1
630F Data record No. 15
6310 Loss of parameters
6320 Parameter error
6330 Ethernet POWERLINK module configuration error
7000 Additional modules
7100 Power
7110 Brake chopper
7111 Failure brake chopper
7112 Overcurrent brake chopper
7113 Protective circuit brake chopper
7120 Motor
7121 Motor blocked
7122 Motor error or communication malfunc.
7123 Motor tilted
7200 Measurement circuit
7300 Sensor
7301 Tacho fault
7302 Tacho wrong polarity
7303 Resolver 1 fault
7304 Resolver 2 fault
7305 Incremental sensor 1 fault
7306 Incremental sensor 2 fault
7307 Incremental sensor 3 fault
7310 Speed
7320 Position
7400 Computation circuit
7500 Communication
7510 Serial interface no. 1
7520 Serial interface no. 2
7600 Data storage
8000 Monitoring
8100 Communication
8300 Torque control
8311 Excess torque
8312 Difficult start up
8313 Standstill torque
8321 Insufficient torque
8331 Torque fault
8400 Rotational speed controller
8500 Position controller
8600 Positioning controller
8611 Following error
8612 Reference limit
8700 Sync controller
8800 Winding controller
9000 External error
F000 Additional functions
F001 Deceleration
F002 Sub-synchronous run
F003 Stroke operation
F004 Control
FF00 Manufacturer specific
FFFF Manufacturer specific
